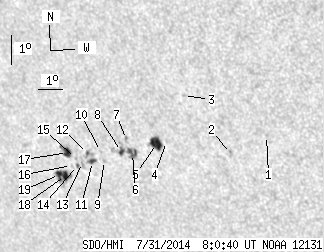

SDO HMI 2014-07-31 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.42 | 83.54 | 25.41 | 61.57 | -18.65 | 237.75 | -41.63 | 121.74 | 0.7418 | -61.3 | -131.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.84 | -17.53 | 244.61 | -34.76 | 124.80 | 0.6644 | 651.0 | 517.9 | |
| 0.00 | 1.81 | 0.00 | 1.23 | -18.22 | 243.03 | -36.34 | 124.54 | 0.6856 | 659.0 | 540.0 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -16.40 | 241.58 | -37.79 | 121.24 | 0.6899 | 491.0 | 393.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -17.98 | 240.50 | -38.88 | 122.55 | 0.7105 | 714.0 | 694.3 | |
| 9.87 | 12.86 | 6.98 | 9.10 | -18.08 | 240.06 | -39.32 | 122.39 | 0.7156 | 751.2 | 437.7 | |
| 4.53 | 9.15 | 3.27 | 6.60 | -18.48 | 238.94 | -40.44 | 122.20 | 0.7293 | 672.5 | 496.0 | |
| 0.00 | 2.45 | 0.00 | 1.76 | -18.03 | 238.82 | -40.56 | 121.57 | 0.7280 | 550.0 | 478.0 | |
| 2.36 | 8.70 | 1.71 | 6.32 | -18.45 | 238.48 | -40.89 | 121.89 | 0.7337 | 522.7 | 278.5 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -18.80 | 237.65 | -41.73 | 121.83 | 0.7439 | -774.0 | -619.3 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -18.51 | 237.56 | -41.81 | 121.43 | 0.7432 | -598.0 | -455.5 | |
| 2.17 | 4.62 | 1.62 | 3.45 | -18.88 | 237.10 | -42.27 | 121.61 | 0.7496 | -767.2 | -601.0 | |
| 0.91 | 5.25 | 0.68 | 3.91 | -18.62 | 236.97 | -42.41 | 121.22 | 0.7497 | -834.3 | -612.7 | |
| 0.00 | 3.99 | 0.00 | 3.00 | -18.94 | 236.64 | -42.73 | 121.43 | 0.7545 | -692.0 | -582.1 | |
| 0.54 | 1.90 | 0.41 | 1.44 | -19.06 | 236.39 | -42.99 | 121.43 | 0.7576 | -603.0 | -579.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -18.83 | 236.37 | -43.00 | 121.14 | 0.7565 | -706.0 | -637.4 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -19.08 | 236.11 | -43.26 | 121.30 | 0.7603 | -396.0 | -315.4 | |
| 5.34 | 8.97 | 4.05 | 6.80 | -18.65 | 236.08 | -43.30 | 120.77 | 0.7586 | -763.8 | -521.0 | |
| 4.35 | 16.49 | 3.34 | 12.68 | -19.44 | 235.73 | -43.65 | 121.52 | 0.7658 | -803.7 | -402.3 | |
| 4.35 | -18.00 | 3.35 | -18.00 | -19.42 | 235.46 | -43.92 | 121.36 | 0.7683 | -605.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
