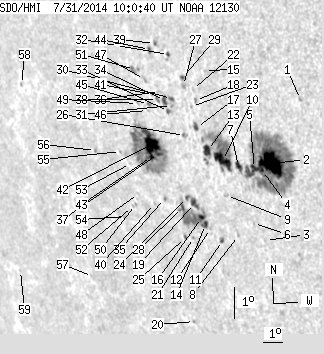

SDO HMI 2014-07-31 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.83 | 547.20 | 83.19 | 436.54 | -7.61 | 228.38 | -49.90 | 104.48 | 0.7847 | 535.0 | 241.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.31 | -5.41 | 232.78 | -45.50 | 102.96 | 0.7309 | 533.0 | 427.4 | |
| 32.43 | 227.36 | 24.38 | 171.23 | -7.51 | 231.24 | -47.04 | 105.22 | 0.7543 | 1041.0 | 371.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -9.98 | 230.54 | -47.74 | 108.11 | 0.7692 | 207.0 | 293.7 | |
| 1.99 | -2.00 | 1.51 | -2.00 | -7.77 | 230.79 | -47.49 | 105.40 | 0.7599 | 625.0 | 999999 | |
| 4.17 | -2.00 | 3.18 | -2.00 | -7.73 | 230.43 | -47.85 | 105.24 | 0.7637 | 710.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -9.48 | 230.08 | -48.20 | 107.33 | 0.7725 | 461.0 | 340.8 | |
| 3.08 | -2.00 | 2.39 | -2.00 | -7.72 | 229.69 | -48.59 | 104.99 | 0.7717 | 691.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -9.92 | 229.29 | -48.99 | 107.60 | 0.7820 | -591.0 | -407.9 | |
| 0.00 | 1.99 | 0.00 | 1.58 | -8.69 | 228.96 | -49.32 | 105.97 | 0.7820 | 630.0 | 455.2 | |
| 14.95 | 73.55 | 11.76 | 58.00 | -7.59 | 228.96 | -49.32 | 104.60 | 0.7791 | 770.9 | 411.9 | |
| 0.91 | 2.63 | 0.73 | 2.12 | -10.14 | 228.48 | -49.80 | 107.60 | 0.7910 | 477.6 | 432.2 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -9.80 | 227.97 | -50.31 | 107.02 | 0.7952 | 444.0 | 401.9 | |
| 5.43 | -10.00 | 4.33 | -10.00 | -7.33 | 228.28 | -50.00 | 104.08 | 0.7855 | 544.5 | 999999 | |
| 2.99 | 50.64 | 2.44 | 41.79 | -9.69 | 227.75 | -50.53 | 106.81 | 0.7971 | 345.3 | 94.2 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -4.84 | 228.46 | -49.82 | 101.00 | 0.7778 | -460.0 | -401.9 | |
| 2.45 | -14.00 | 2.00 | -14.00 | -9.48 | 227.60 | -50.68 | 106.51 | 0.7981 | 504.9 | 999999 | |
| 1.54 | 3.80 | 1.23 | 3.05 | -6.65 | 227.86 | -50.42 | 103.11 | 0.7883 | 541.2 | 396.2 | |
| 0.00 | 1.81 | 0.00 | 1.44 | -5.81 | 227.92 | -50.36 | 102.08 | 0.7857 | 475.0 | 370.4 | |
| 3.99 | -14.00 | 3.27 | -14.00 | -9.06 | 227.34 | -50.94 | 105.92 | 0.7996 | 713.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.17 | -12.87 | 226.40 | -51.88 | 110.16 | 0.8191 | -418.0 | -405.0 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -10.15 | 227.06 | -51.22 | 107.15 | 0.8053 | 259.0 | 255.6 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -5.47 | 227.82 | -50.46 | 101.64 | 0.7860 | 309.0 | 274.4 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -6.01 | 227.70 | -50.58 | 102.27 | 0.7884 | 375.0 | 318.5 | |
| 0.91 | -14.00 | 0.75 | -14.00 | -8.90 | 227.03 | -51.25 | 105.63 | 0.8023 | 459.6 | 999999 | |
| 0.45 | 1.63 | 0.38 | 1.37 | -10.18 | 226.65 | -51.63 | 107.06 | 0.8093 | -481.2 | -420.0 | |
| 0.00 | 2.81 | 0.00 | 2.28 | -6.95 | 227.23 | -51.05 | 103.31 | 0.7955 | 481.0 | 390.7 | |
| 0.00 | 2.36 | 0.00 | 1.90 | -5.38 | 227.39 | -50.89 | 101.41 | 0.7903 | -138.0 | -122.9 | |
| 1.45 | -14.00 | 1.21 | -14.00 | -9.24 | 226.71 | -51.57 | 105.94 | 0.8063 | -406.4 | 999999 | |
| 0.82 | 1.90 | 0.66 | 1.53 | -5.14 | 227.37 | -50.91 | 101.10 | 0.7900 | -597.6 | -463.5 | |
| 0.91 | 2.45 | 0.74 | 2.00 | -5.84 | 226.75 | -51.53 | 101.81 | 0.7980 | 643.1 | 533.7 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -6.06 | 226.72 | -51.56 | 102.07 | 0.7988 | 753.0 | 651.5 | |
| 0.72 | 2.45 | 0.59 | 1.99 | -4.47 | 226.76 | -51.52 | 100.13 | 0.7951 | 193.5 | 158.4 | |
| 0.63 | 1.81 | 0.52 | 1.49 | -6.26 | 226.54 | -51.74 | 102.27 | 0.8010 | 619.0 | 492.2 | |
| 2.45 | 4.44 | 2.02 | 3.66 | -5.93 | 226.39 | -51.89 | 101.83 | 0.8019 | 612.6 | 499.5 | |
| 0.00 | 1.36 | 0.00 | 1.15 | -9.02 | 225.85 | -52.43 | 105.43 | 0.8142 | -634.0 | -518.1 | |
| 0.00 | 2.26 | 0.00 | 1.88 | -5.67 | 226.17 | -52.11 | 101.46 | 0.8035 | 493.0 | 416.9 | |
| 1.18 | 119.21 | 0.99 | 101.63 | -7.62 | 225.82 | -52.46 | 103.74 | 0.8113 | 813.1 | 112.9 | |
| 0.00 | 2.45 | 0.00 | 2.03 | -5.92 | 226.04 | -52.24 | 101.74 | 0.8054 | 392.0 | 288.6 | |
| 0.36 | 2.26 | 0.30 | 1.86 | -4.19 | 226.09 | -52.19 | 99.62 | 0.8014 | -527.2 | -414.1 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -9.22 | 225.30 | -52.98 | 105.51 | 0.8201 | -226.0 | -228.5 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -5.79 | 225.80 | -52.48 | 101.51 | 0.8075 | 255.0 | 246.9 | |
| 18.21 | -37.00 | 15.44 | -37.00 | -7.36 | 225.51 | -52.77 | 103.35 | 0.8138 | 779.0 | 999999 | |
| 1.81 | -37.00 | 1.54 | -37.00 | -7.74 | 225.44 | -52.84 | 103.78 | 0.8153 | 634.6 | 999999 | |
| 1.00 | 2.26 | 0.83 | 1.88 | -4.39 | 225.82 | -52.46 | 99.82 | 0.8046 | -582.9 | -481.9 | |
| 0.00 | 1.81 | 0.00 | 1.52 | -6.12 | 225.55 | -52.73 | 101.85 | 0.8106 | 521.0 | 421.0 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -6.31 | 225.47 | -52.81 | 102.07 | 0.8118 | 336.0 | 296.6 | |
| 0.00 | 2.90 | 0.00 | 2.44 | -5.35 | 225.45 | -52.83 | 100.90 | 0.8101 | 261.0 | 69.0 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -8.97 | 224.52 | -53.76 | 105.00 | 0.8269 | -121.0 | -67.6 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -6.13 | 224.99 | -53.29 | 101.73 | 0.8163 | 289.0 | 186.6 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -9.34 | 224.28 | -54.00 | 105.36 | 0.8300 | -430.0 | -249.6 | |
| 0.00 | 5.07 | 0.00 | 4.31 | -5.08 | 224.98 | -53.30 | 100.46 | 0.8143 | -460.0 | -427.1 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -9.42 | 224.10 | -54.18 | 105.40 | 0.8318 | -250.0 | -180.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -8.06 | 224.29 | -53.99 | 103.85 | 0.8270 | 363.0 | 409.3 | |
| 0.00 | 1.81 | 0.00 | 1.63 | -9.77 | 223.64 | -54.64 | 105.69 | 0.8369 | -366.0 | -312.2 | |
| 0.00 | 1.00 | 0.00 | 0.88 | -7.72 | 223.83 | -54.45 | 103.33 | 0.8307 | 244.0 | 273.7 | |
| 0.00 | 1.54 | 0.00 | 1.41 | -7.80 | 222.46 | -55.82 | 103.09 | 0.8436 | 512.0 | 385.4 | |
| 0.00 | 2.54 | 0.00 | 2.47 | -11.87 | 221.21 | -57.07 | 107.41 | 0.8629 | -139.0 | -215.1 | |
| 0.00 | 1.18 | 0.00 | 1.20 | -6.09 | 218.51 | -59.77 | 100.25 | 0.8751 | -316.0 | -263.8 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -12.07 | 216.70 | -61.58 | 106.48 | 0.8987 | -187.0 | -266.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
