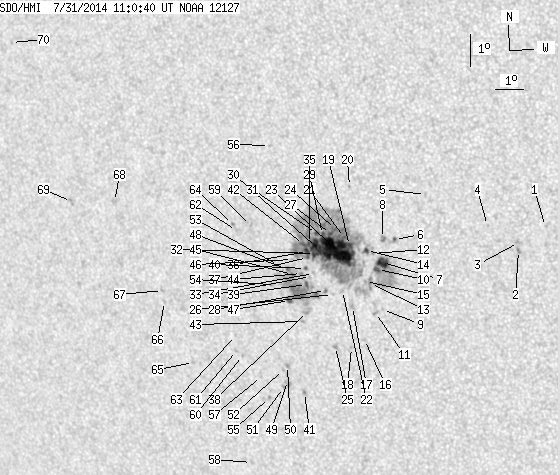

SDO HMI 2014-07-31 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.70 | 574.55 | 60.16 | 334.85 | -8.10 | 249.07 | -28.66 | 115.56 | 0.5282 | 504.5 | 193.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | -6.69 | 256.62 | -21.11 | 120.22 | 0.4156 | 703.0 | 555.0 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -7.47 | 255.69 | -22.04 | 120.72 | 0.4345 | 844.0 | 702.0 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -7.22 | 255.71 | -22.02 | 120.23 | 0.4324 | 942.0 | 631.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -6.73 | 254.70 | -23.03 | 118.14 | 0.4424 | 726.0 | 558.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -5.85 | 252.67 | -25.06 | 114.41 | 0.4647 | 658.0 | 482.7 | |
| 0.63 | 3.26 | 0.36 | 1.85 | -7.30 | 251.53 | -26.20 | 116.16 | 0.4899 | -467.6 | 102.2 | |
| 8.97 | 51.90 | 5.13 | 29.70 | -8.04 | 251.07 | -26.66 | 117.10 | 0.5011 | 1085.9 | 397.6 | |
| 0.00 | 3.53 | 0.00 | 2.01 | -7.29 | 251.12 | -26.61 | 115.78 | 0.4954 | 885.0 | 798.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.52 | 250.95 | -26.78 | 119.59 | 0.5131 | -459.0 | -286.6 | |
| 2.54 | -7.00 | 1.45 | -7.00 | -8.27 | 250.88 | -26.85 | 117.34 | 0.5052 | 817.4 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -9.63 | 250.70 | -27.03 | 119.54 | 0.5171 | -689.0 | -580.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.77 | 250.74 | -26.99 | 116.33 | 0.5037 | 792.0 | 674.1 | |
| 0.00 | 5.07 | 0.00 | 2.92 | -8.72 | 250.60 | -27.13 | 117.89 | 0.5120 | 698.0 | 570.5 | |
| 1.99 | 357.40 | 1.14 | 207.35 | -7.69 | 250.54 | -27.19 | 116.01 | 0.5059 | 933.8 | 354.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -8.66 | 250.43 | -27.30 | 117.64 | 0.5139 | 551.0 | 479.0 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -10.50 | 250.23 | -27.50 | 120.58 | 0.5294 | -535.0 | -387.4 | |
| 0.00 | 2.72 | 0.00 | 1.58 | -9.47 | 249.91 | -27.82 | 118.58 | 0.5263 | -729.0 | -621.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -10.78 | 249.75 | -27.98 | 120.59 | 0.5376 | -693.0 | -569.2 | |
| 3.17 | -14.00 | 1.83 | -14.00 | -7.56 | 249.96 | -27.77 | 115.30 | 0.5129 | 1258.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -5.72 | 250.08 | -27.66 | 112.04 | 0.5002 | -347.0 | -323.6 | |
| 0.27 | -14.00 | 0.16 | -14.00 | -7.32 | 249.80 | -27.93 | 114.74 | 0.5135 | 1251.3 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.32 | -8.98 | 249.60 | -28.13 | 117.48 | 0.5270 | -300.0 | -306.2 | |
| 51.99 | -14.00 | 30.11 | -14.00 | -7.74 | 249.49 | -28.24 | 115.24 | 0.5203 | 1142.2 | 999999 | |
| 0.27 | -14.00 | 0.16 | -14.00 | -7.08 | 249.51 | -28.23 | 114.09 | 0.5161 | 1063.7 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.66 | -10.77 | 249.18 | -28.55 | 120.09 | 0.5446 | -837.0 | -579.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -9.13 | 249.24 | -28.49 | 117.42 | 0.5327 | 575.0 | 393.9 | |
| 1.81 | -14.00 | 1.05 | -14.00 | -7.21 | 249.32 | -28.41 | 114.18 | 0.5194 | 962.3 | 999999 | |
| 0.36 | 1.81 | 0.21 | 1.06 | -9.01 | 249.00 | -28.73 | 117.03 | 0.5350 | 710.8 | 605.9 | |
| 1.54 | -14.00 | 0.89 | -14.00 | -7.26 | 249.04 | -28.69 | 114.04 | 0.5235 | 827.2 | 999999 | |
| 13.40 | -14.00 | 7.82 | -14.00 | -7.68 | 248.80 | -28.93 | 114.59 | 0.5293 | 847.1 | 999999 | |
| 2.17 | -14.00 | 1.26 | -14.00 | -7.24 | 248.83 | -28.90 | 113.85 | 0.5262 | 806.8 | 999999 | |
| 2.99 | -14.00 | 1.75 | -14.00 | -7.87 | 248.71 | -29.02 | 114.85 | 0.5316 | 705.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -8.50 | 248.63 | -29.11 | 115.86 | 0.5367 | 704.0 | 534.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -8.60 | 248.51 | -29.22 | 115.94 | 0.5388 | 414.0 | 371.5 | |
| 1.09 | -14.00 | 0.64 | -14.00 | -7.56 | 248.56 | -29.17 | 114.21 | 0.5318 | 655.0 | 999999 | |
| 2.99 | -14.00 | 1.75 | -14.00 | -7.82 | 248.47 | -29.26 | 114.58 | 0.5346 | 707.2 | 999999 | |
| 0.27 | -14.00 | 0.16 | -14.00 | -8.01 | 248.45 | -29.28 | 114.89 | 0.5359 | 536.7 | 999999 | |
| 0.00 | 4.80 | 0.00 | 2.84 | -9.71 | 248.30 | -29.43 | 117.62 | 0.5487 | -643.0 | -568.8 | |
| 1.36 | 72.46 | 0.80 | 42.83 | -8.86 | 248.35 | -29.38 | 116.25 | 0.5426 | 619.7 | -154.7 | |
| 0.72 | 1.99 | 0.43 | 1.17 | -8.35 | 248.36 | -29.38 | 115.41 | 0.5394 | 650.6 | 538.5 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -12.30 | 247.90 | -29.83 | 121.38 | 0.5714 | -847.0 | -732.2 | |
| 1.36 | -14.00 | 0.80 | -14.00 | -7.60 | 248.35 | -29.39 | 114.12 | 0.5350 | 160.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -10.03 | 248.09 | -29.64 | 117.98 | 0.5535 | -757.0 | -624.9 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -8.52 | 248.20 | -29.53 | 115.57 | 0.5425 | 652.0 | 541.8 | |
| 0.91 | -39.00 | 0.54 | -39.00 | -8.57 | 247.88 | -29.85 | 115.40 | 0.5470 | 595.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.09 | 247.92 | -29.81 | 114.64 | 0.5436 | -139.0 | -99.4 | |
| 2.08 | -39.00 | 1.24 | -39.00 | -9.39 | 247.69 | -30.04 | 116.62 | 0.5546 | -798.1 | 999999 | |
| 0.82 | -39.00 | 0.48 | -39.00 | -8.42 | 247.71 | -30.02 | 115.03 | 0.5483 | 538.0 | 999999 | |
| 0.00 | 5.62 | 0.00 | 3.40 | -11.94 | 247.33 | -30.40 | 120.37 | 0.5759 | -720.0 | -660.0 | |
| 0.00 | 2.08 | 0.00 | 1.26 | -11.46 | 247.39 | -30.34 | 119.68 | 0.5719 | -845.0 | -739.0 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -12.18 | 247.16 | -30.57 | 120.58 | 0.5796 | -643.0 | -515.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -11.60 | 247.23 | -30.50 | 119.76 | 0.5748 | -568.0 | -493.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -8.31 | 247.40 | -30.33 | 114.61 | 0.5517 | 388.0 | 311.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -8.92 | 247.06 | -30.67 | 115.37 | 0.5599 | -812.0 | -664.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -12.52 | 246.60 | -31.13 | 120.66 | 0.5888 | -690.0 | -549.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -4.58 | 247.33 | -30.40 | 108.13 | 0.5328 | 698.0 | 603.4 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -11.87 | 246.40 | -31.33 | 119.50 | 0.5868 | -541.0 | -465.0 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -14.67 | 245.62 | -32.11 | 122.98 | 0.6153 | 466.0 | 418.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -7.10 | 246.50 | -31.23 | 111.98 | 0.5570 | 568.0 | 432.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -11.23 | 245.79 | -31.94 | 118.07 | 0.5903 | -670.0 | -522.7 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -11.08 | 245.59 | -32.14 | 117.70 | 0.5919 | -401.0 | -425.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.29 | 245.98 | -31.75 | 111.94 | 0.5649 | 775.0 | 655.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -10.61 | 245.61 | -32.12 | 116.98 | 0.5887 | -629.0 | -554.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -7.11 | 245.85 | -31.88 | 111.56 | 0.5657 | 732.0 | 708.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -11.55 | 243.93 | -33.80 | 117.23 | 0.6152 | -643.0 | -570.5 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -9.67 | 243.09 | -34.65 | 113.87 | 0.6151 | -536.0 | -370.9 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -9.33 | 243.05 | -34.68 | 113.33 | 0.6137 | -605.0 | -530.6 | |
| 0.00 | 3.35 | 0.00 | 2.11 | -6.63 | 241.51 | -36.22 | 108.37 | 0.6207 | -777.0 | -614.0 | |
| 0.00 | 2.90 | 0.00 | 1.87 | -6.74 | 239.85 | -37.88 | 107.72 | 0.6425 | -609.0 | -535.0 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -1.95 | 237.79 | -39.94 | 99.75 | 0.6533 | -516.0 | -372.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
