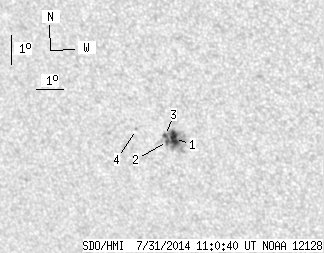

SDO HMI 2014-07-31 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.15 | 44.47 | 6.41 | 28.12 | -20.49 | 249.17 | -28.56 | 133.86 | 0.6233 | 947.2 | 468.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.06 | 43.29 | 5.09 | 27.37 | -20.50 | 249.27 | -28.46 | 133.96 | 0.6224 | 1080.1 | 466.9 | |
| 0.91 | -1.00 | 0.57 | -1.00 | -20.61 | 248.99 | -28.74 | 133.83 | 0.6262 | 608.0 | 999999 | |
| 1.18 | -1.00 | 0.75 | -1.00 | -20.41 | 248.96 | -28.78 | 133.55 | 0.6247 | 693.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -20.26 | 247.91 | -29.83 | 132.38 | 0.6339 | 654.0 | 513.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
