SDO HMI 2014-07-31 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.72 | 545.91 | 78.38 | 430.02 | -7.61 | 228.43 | -49.30 | 104.66 | 0.7783 | 510.3 | 252.2 | |
|
previous
or next observation for the same group /

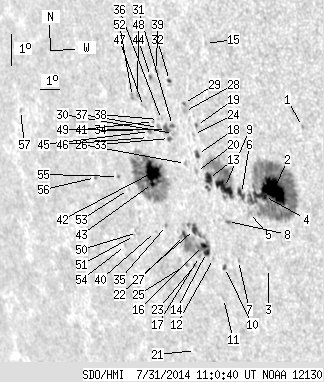

back to the solar disc SDO HMI 2014-07-31 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.91 | -5.41 | 232.76 | -44.97 | 103.12 | 0.7247 | 581.0 | 464.9 | |
| 32.15 | 223.26 | 23.91 | 166.34 | -7.50 | 231.23 | -46.50 | 105.39 | 0.7482 | 1008.2 | 376.5 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -10.00 | 230.59 | -47.14 | 108.35 | 0.7629 | 208.0 | 231.4 | |
| 2.63 | -2.00 | 1.97 | -2.00 | -7.72 | 230.80 | -46.94 | 105.53 | 0.7537 | 631.9 | 999999 | |
| 0.00 | 4.17 | 0.00 | 3.18 | -8.28 | 230.03 | -47.71 | 105.99 | 0.7637 | 83.0 | 91.3 | |
| 3.35 | -2.00 | 2.57 | -2.00 | -7.71 | 229.75 | -47.98 | 105.17 | 0.7651 | 673.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.21 | -9.85 | 229.23 | -48.50 | 107.68 | 0.7768 | -505.0 | -344.4 | |
| 0.00 | 2.17 | 0.00 | 1.70 | -8.64 | 228.94 | -48.79 | 106.09 | 0.7763 | 542.0 | 470.3 | |
| 14.13 | 72.55 | 10.99 | 56.57 | -7.58 | 228.98 | -48.75 | 104.76 | 0.7730 | 760.4 | 404.1 | |
| 1.09 | 2.26 | 0.87 | 1.80 | -10.12 | 228.51 | -49.22 | 107.77 | 0.7850 | 491.6 | 381.0 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -11.12 | 228.24 | -49.49 | 108.90 | 0.7907 | 345.0 | 300.5 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -9.87 | 228.04 | -49.69 | 107.31 | 0.7891 | 418.0 | 358.9 | |
| 5.43 | -9.00 | 4.28 | -9.00 | -7.35 | 228.26 | -49.47 | 104.26 | 0.7800 | 554.8 | 999999 | |
| 2.90 | 50.18 | 2.34 | 40.85 | -9.71 | 227.74 | -49.99 | 107.01 | 0.7918 | 341.9 | 180.2 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -3.15 | 228.58 | -49.15 | 99.01 | 0.7670 | -437.0 | -366.3 | |
| 2.54 | -14.00 | 2.05 | -14.00 | -9.50 | 227.64 | -50.09 | 106.72 | 0.7922 | 464.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -9.86 | 227.37 | -50.37 | 107.08 | 0.7960 | 232.0 | 90.9 | |
| 1.54 | 3.35 | 1.22 | 2.66 | -6.64 | 227.84 | -49.89 | 103.25 | 0.7827 | 542.5 | 405.6 | |
| 0.36 | 1.81 | 0.29 | 1.43 | -5.73 | 227.91 | -49.82 | 102.13 | 0.7798 | 359.0 | 321.3 | |
| 0.00 | 1.90 | 0.00 | 1.52 | -7.18 | 227.71 | -50.02 | 103.88 | 0.7853 | 445.0 | 320.7 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -12.92 | 226.40 | -51.33 | 110.41 | 0.8142 | -493.0 | -381.9 | |
| 3.44 | -14.00 | 2.79 | -14.00 | -9.02 | 227.29 | -50.44 | 106.03 | 0.7944 | 670.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -10.17 | 227.05 | -50.68 | 107.35 | 0.7999 | 348.0 | 239.0 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -6.03 | 227.73 | -50.00 | 102.45 | 0.7824 | 478.0 | 380.2 | |
| 0.00 | 1.36 | 0.00 | 1.13 | -10.17 | 226.66 | -51.07 | 107.22 | 0.8038 | -554.0 | -458.3 | |
| 0.00 | 1.81 | 0.00 | 1.46 | -6.97 | 227.21 | -50.52 | 103.48 | 0.7900 | 471.0 | 373.4 | |
| 1.99 | -14.00 | 1.64 | -14.00 | -9.25 | 226.76 | -50.97 | 106.14 | 0.8004 | -280.1 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.94 | -5.34 | 227.38 | -50.35 | 101.50 | 0.7845 | -178.0 | -174.6 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -5.09 | 227.36 | -50.37 | 101.19 | 0.7842 | -644.0 | -563.1 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -6.07 | 226.76 | -50.97 | 102.25 | 0.7927 | 625.0 | 539.0 | |
| 0.82 | 7.16 | 0.66 | 5.82 | -5.82 | 226.74 | -50.99 | 101.94 | 0.7923 | 655.8 | 548.1 | |
| 0.91 | 1.81 | 0.73 | 1.46 | -4.43 | 226.75 | -50.98 | 100.21 | 0.7892 | 215.7 | 163.8 | |
| 0.91 | 2.17 | 0.74 | 1.77 | -6.24 | 226.54 | -51.19 | 102.40 | 0.7953 | 595.4 | 473.4 | |
| 2.35 | -31.00 | 1.92 | -31.00 | -5.97 | 226.43 | -51.30 | 102.04 | 0.7959 | 655.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -9.00 | 225.92 | -51.82 | 105.59 | 0.8082 | -628.0 | -574.4 | |
| 0.00 | 0.63 | 0.00 | 0.52 | -5.68 | 226.22 | -51.51 | 101.62 | 0.7974 | 452.0 | 354.3 | |
| 0.00 | 2.54 | 0.00 | 2.08 | -5.94 | 226.04 | -51.69 | 101.90 | 0.7998 | 411.0 | 325.9 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -5.69 | 226.07 | -51.66 | 101.60 | 0.7990 | 418.0 | 368.0 | |
| 0.00 | 1.72 | 0.00 | 1.40 | -4.17 | 226.14 | -51.59 | 99.74 | 0.7951 | -562.0 | -479.4 | |
| 0.00 | 0.72 | 0.00 | 0.62 | -9.24 | 225.31 | -52.42 | 105.70 | 0.8147 | -202.0 | -202.5 | |
| 0.00 | 1.18 | 0.00 | 0.97 | -5.77 | 225.81 | -51.92 | 101.64 | 0.8018 | 245.0 | 242.4 | |
| 19.75 | 123.09 | 16.53 | 103.53 | -7.38 | 225.52 | -52.21 | 103.52 | 0.8083 | 763.0 | 117.4 | |
| 2.26 | -42.00 | 1.90 | -42.00 | -7.73 | 225.46 | -52.27 | 103.92 | 0.8097 | 607.6 | 999999 | |
| 0.54 | 1.90 | 0.45 | 1.56 | -4.38 | 225.82 | -51.91 | 99.93 | 0.7988 | -573.2 | -488.6 | |
| 0.63 | 1.90 | 0.53 | 1.58 | -6.10 | 225.57 | -52.16 | 101.98 | 0.8050 | 446.0 | 355.4 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -6.30 | 225.49 | -52.24 | 102.19 | 0.8062 | 322.0 | 336.6 | |
| 0.00 | 1.99 | 0.00 | 1.66 | -5.34 | 225.36 | -52.37 | 101.00 | 0.8054 | 244.0 | 190.4 | |
| 0.00 | 1.81 | 0.00 | 1.51 | -5.02 | 225.10 | -52.63 | 100.55 | 0.8075 | -651.0 | -536.9 | |
| 0.00 | 1.45 | 0.00 | 1.22 | -6.12 | 224.96 | -52.77 | 101.85 | 0.8111 | 246.0 | 164.1 | |
| 0.00 | 2.54 | 0.00 | 2.21 | -9.35 | 224.36 | -53.37 | 105.55 | 0.8241 | -115.0 | -105.7 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -9.46 | 224.18 | -53.55 | 105.63 | 0.8261 | -264.0 | -269.9 | |
| 0.00 | 2.81 | 0.00 | 2.36 | -5.08 | 224.84 | -52.89 | 100.55 | 0.8102 | -511.0 | -365.2 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -8.02 | 224.17 | -53.56 | 103.92 | 0.8229 | 458.0 | 353.6 | |
| 0.00 | 1.45 | 0.00 | 1.29 | -9.82 | 223.62 | -54.11 | 105.89 | 0.8321 | -364.0 | -341.2 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -7.65 | 223.72 | -54.01 | 103.37 | 0.8264 | 267.0 | 273.8 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -7.79 | 222.46 | -55.27 | 103.21 | 0.8385 | 451.0 | 375.6 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -6.04 | 218.52 | -59.21 | 100.31 | 0.8703 | -279.0 | -274.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
