SDO HMI 2014-07-31 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.03 | 547.75 | 82.65 | 420.98 | -7.60 | 228.47 | -48.16 | 105.01 | 0.7661 | 511.8 | 253.8 | |
|
previous
or next observation for the same group /

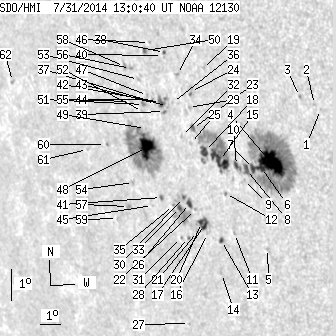

back to the solar disc SDO HMI 2014-07-31 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.57 | -5.67 | 233.61 | -43.02 | 104.12 | 0.7024 | 564.0 | 430.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -5.53 | 233.37 | -43.26 | 103.85 | 0.7049 | 561.0 | 517.1 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -5.33 | 232.75 | -43.88 | 103.36 | 0.7116 | 474.0 | 358.9 | |
| 34.59 | 227.65 | 25.18 | 165.89 | -7.48 | 231.30 | -45.33 | 105.76 | 0.7350 | 966.9 | 356.6 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -10.22 | 230.68 | -45.95 | 109.09 | 0.7508 | 643.0 | 534.6 | |
| 4.26 | -4.00 | 3.13 | -4.00 | -7.67 | 230.83 | -45.80 | 105.85 | 0.7408 | 630.7 | 999999 | |
| 2.81 | -4.00 | 2.08 | -4.00 | -7.73 | 230.47 | -46.16 | 105.80 | 0.7451 | 668.4 | 999999 | |
| 2.99 | -4.00 | 2.23 | -4.00 | -7.78 | 230.15 | -46.48 | 105.76 | 0.7488 | 643.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -8.14 | 229.96 | -46.67 | 106.15 | 0.7520 | 445.0 | 361.2 | |
| 2.17 | -4.00 | 1.63 | -4.00 | -7.69 | 229.71 | -46.92 | 105.49 | 0.7534 | 664.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -9.85 | 229.25 | -47.38 | 108.09 | 0.7649 | -497.0 | -365.5 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -8.61 | 229.06 | -47.56 | 106.45 | 0.7631 | 574.0 | 439.5 | |
| 1.36 | 2.72 | 1.06 | 2.11 | -10.12 | 228.60 | -48.03 | 108.19 | 0.7727 | 436.5 | 273.1 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -11.18 | 228.37 | -48.26 | 109.42 | 0.7784 | 135.0 | 195.6 | |
| 15.03 | 81.59 | 11.44 | 62.23 | -7.59 | 228.95 | -47.68 | 105.11 | 0.7614 | 715.3 | 405.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -9.95 | 227.98 | -48.65 | 107.76 | 0.7786 | 171.0 | 170.0 | |
| 4.35 | 12.32 | 3.42 | 9.69 | -9.67 | 227.90 | -48.73 | 107.38 | 0.7787 | 658.4 | 376.5 | |
| 4.71 | -15.00 | 3.63 | -15.00 | -7.36 | 228.30 | -48.33 | 104.61 | 0.7679 | 581.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -4.77 | 228.52 | -48.11 | 101.36 | 0.7589 | -522.0 | -454.2 | |
| 2.72 | -17.00 | 2.14 | -17.00 | -9.62 | 227.76 | -48.86 | 107.27 | 0.7799 | 536.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -9.92 | 227.51 | -49.11 | 107.56 | 0.7834 | 275.0 | 139.1 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -9.23 | 227.56 | -49.07 | 106.72 | 0.7809 | 544.0 | 528.2 | |
| 1.54 | 3.35 | 1.19 | 2.59 | -6.68 | 227.83 | -48.80 | 103.61 | 0.7711 | 606.7 | 498.8 | |
| 0.00 | 3.89 | 0.00 | 3.00 | -5.52 | 227.88 | -48.74 | 102.16 | 0.7677 | 546.0 | 336.3 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -7.15 | 227.67 | -48.96 | 104.17 | 0.7741 | 466.0 | 417.5 | |
| 2.63 | 5.07 | 2.08 | 4.02 | -9.06 | 227.30 | -49.32 | 106.43 | 0.7831 | 628.1 | 491.9 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -12.92 | 226.40 | -50.23 | 110.81 | 0.8036 | -516.0 | -456.1 | |
| 0.36 | 1.36 | 0.29 | 1.09 | -10.15 | 227.04 | -49.59 | 107.68 | 0.7889 | 396.0 | 349.8 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -6.03 | 227.73 | -48.90 | 102.76 | 0.7706 | 446.0 | 372.0 | |
| 0.72 | 2.44 | 0.58 | 1.95 | -8.89 | 227.05 | -49.58 | 106.14 | 0.7852 | 435.0 | 330.6 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -10.17 | 226.70 | -49.93 | 107.60 | 0.7925 | -367.0 | -314.6 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -6.97 | 227.28 | -49.35 | 103.81 | 0.7778 | 456.0 | 404.5 | |
| 1.63 | 25.26 | 1.31 | 20.26 | -9.22 | 226.80 | -49.83 | 106.47 | 0.7888 | -355.3 | 2.7 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -5.04 | 227.33 | -49.30 | 101.39 | 0.7726 | -702.0 | -604.1 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -9.18 | 226.51 | -50.11 | 106.33 | 0.7916 | -453.0 | -392.3 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -5.93 | 226.99 | -49.64 | 102.43 | 0.7784 | 395.0 | 400.8 | |
| 0.00 | 1.81 | 0.00 | 1.43 | -6.08 | 226.73 | -49.90 | 102.54 | 0.7814 | 672.0 | 543.8 | |
| 0.63 | 1.63 | 0.50 | 1.28 | -4.40 | 226.78 | -49.85 | 100.44 | 0.7772 | 102.9 | 157.9 | |
| 0.36 | 1.81 | 0.29 | 1.44 | -6.24 | 226.57 | -50.06 | 102.71 | 0.7836 | 609.8 | 542.5 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -4.50 | 226.67 | -49.96 | 100.55 | 0.7786 | 55.0 | 145.5 | |
| 0.81 | 2.08 | 0.66 | 1.70 | -8.97 | 225.97 | -50.66 | 105.90 | 0.7965 | -635.4 | -577.8 | |
| 3.08 | 8.78 | 2.45 | 6.97 | -5.98 | 226.41 | -50.22 | 102.33 | 0.7846 | 609.9 | 528.5 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -6.03 | 226.16 | -50.47 | 102.33 | 0.7873 | 268.0 | 269.3 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -5.91 | 226.03 | -50.60 | 102.15 | 0.7884 | 365.0 | 337.0 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -9.26 | 225.47 | -51.16 | 106.10 | 0.8023 | -332.0 | -333.8 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -4.15 | 226.08 | -50.55 | 99.95 | 0.7841 | -586.0 | -463.6 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -5.81 | 225.80 | -50.83 | 101.96 | 0.7906 | 233.0 | 216.9 | |
| 20.10 | 118.17 | 16.42 | 96.92 | -7.45 | 225.51 | -51.12 | 103.90 | 0.7973 | 738.4 | 129.5 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -6.85 | 225.56 | -51.07 | 103.18 | 0.7955 | 156.0 | 143.5 | |
| 1.18 | 2.63 | 0.94 | 2.10 | -4.42 | 225.81 | -50.81 | 100.23 | 0.7875 | -543.2 | -399.0 | |
| 0.00 | 2.35 | 0.00 | 1.91 | -6.11 | 225.57 | -51.06 | 102.27 | 0.7937 | 583.0 | 392.7 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -6.33 | 225.49 | -51.14 | 102.52 | 0.7950 | 399.0 | 309.0 | |
| 0.00 | 1.45 | 0.00 | 1.17 | -5.34 | 225.42 | -51.21 | 101.28 | 0.7936 | 190.0 | 116.3 | |
| 0.00 | 2.35 | 0.00 | 1.97 | -8.61 | 224.66 | -51.97 | 105.07 | 0.8088 | 132.0 | 114.4 | |
| 0.00 | 1.36 | 0.00 | 1.12 | -6.06 | 224.93 | -51.70 | 102.05 | 0.8001 | 286.0 | 190.7 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -5.03 | 225.06 | -51.57 | 100.81 | 0.7966 | -563.0 | -569.8 | |
| 0.00 | 2.54 | 0.00 | 2.16 | -9.39 | 224.24 | -52.39 | 105.89 | 0.8148 | -309.0 | -175.0 | |
| 0.00 | 2.81 | 0.00 | 2.30 | -4.99 | 224.77 | -51.86 | 100.69 | 0.7996 | -518.0 | -465.4 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -9.82 | 223.58 | -53.05 | 106.20 | 0.8222 | -488.0 | -434.1 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -7.52 | 223.44 | -53.19 | 103.42 | 0.8182 | 316.0 | 382.8 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -7.75 | 222.45 | -54.17 | 103.45 | 0.8282 | 529.0 | 414.6 | |
| 0.00 | 1.72 | 0.00 | 1.66 | -5.96 | 218.63 | -58.00 | 100.47 | 0.8597 | -547.0 | -351.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
