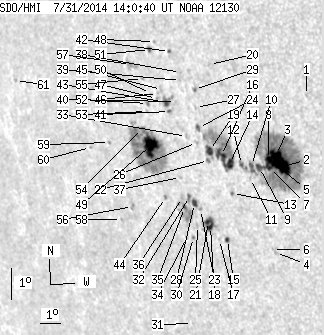

SDO HMI 2014-07-31 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.28 | 534.75 | 84.16 | 406.77 | -7.55 | 228.49 | -47.59 | 105.13 | 0.7598 | 551.5 | 239.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.57 | -5.32 | 232.80 | -43.28 | 103.55 | 0.7045 | 447.0 | 450.1 | |
| 18.02 | 225.99 | 12.94 | 162.94 | -7.61 | 231.56 | -44.52 | 106.23 | 0.7261 | 1059.0 | 361.3 | |
| 10.41 | -2.00 | 7.50 | -2.00 | -7.25 | 231.30 | -44.78 | 105.66 | 0.7279 | 996.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -10.36 | 230.76 | -45.31 | 109.52 | 0.7443 | 463.0 | 377.7 | |
| 2.90 | -2.00 | 2.09 | -2.00 | -7.55 | 231.13 | -44.94 | 105.99 | 0.7308 | 870.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -10.28 | 230.65 | -45.43 | 109.37 | 0.7453 | 367.0 | 393.7 | |
| 2.99 | -2.00 | 2.17 | -2.00 | -7.68 | 230.94 | -45.14 | 106.10 | 0.7334 | 649.1 | 999999 | |
| 6.61 | -2.00 | 4.79 | -2.00 | -7.44 | 230.93 | -45.15 | 105.77 | 0.7328 | 702.2 | 999999 | |
| 2.99 | -2.00 | 2.19 | -2.00 | -7.72 | 230.50 | -45.58 | 105.99 | 0.7385 | 688.3 | 999999 | |
| 1.54 | -2.00 | 1.13 | -2.00 | -7.68 | 230.15 | -45.93 | 105.82 | 0.7424 | 677.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -8.09 | 230.04 | -46.03 | 106.32 | 0.7448 | 422.0 | 370.4 | |
| 1.00 | -2.00 | 0.74 | -2.00 | -7.68 | 229.70 | -46.38 | 105.67 | 0.7473 | 660.9 | 999999 | |
| 0.45 | 1.45 | 0.34 | 1.09 | -8.63 | 229.15 | -46.93 | 106.70 | 0.7563 | 568.6 | 490.3 | |
| 8.06 | 69.72 | 6.05 | 52.60 | -7.69 | 229.16 | -46.92 | 105.49 | 0.7534 | 731.3 | 409.8 | |
| 1.54 | 2.44 | 1.18 | 1.88 | -10.11 | 228.65 | -47.42 | 108.39 | 0.7662 | 347.1 | 225.2 | |
| 7.97 | -14.00 | 6.01 | -14.00 | -7.46 | 228.83 | -47.25 | 105.10 | 0.7563 | 732.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -10.14 | 228.28 | -47.80 | 108.29 | 0.7703 | 99.0 | 103.5 | |
| 4.16 | 15.12 | 3.24 | 11.76 | -9.75 | 227.94 | -48.14 | 107.69 | 0.7727 | 561.1 | 255.1 | |
| 4.98 | -14.00 | 3.79 | -14.00 | -7.35 | 228.30 | -47.78 | 104.78 | 0.7618 | 558.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -4.66 | 228.62 | -47.46 | 101.39 | 0.7514 | -454.0 | -384.7 | |
| 4.16 | -18.00 | 3.24 | -18.00 | -9.60 | 227.87 | -48.20 | 107.48 | 0.7729 | 695.6 | 999999 | |
| 0.45 | 2.35 | 0.35 | 1.80 | -7.67 | 228.21 | -47.87 | 105.15 | 0.7637 | 420.2 | 325.0 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -9.25 | 227.57 | -48.51 | 106.94 | 0.7751 | 505.0 | 413.4 | |
| 1.45 | 3.26 | 1.11 | 2.50 | -6.66 | 227.89 | -48.19 | 103.78 | 0.7645 | 597.8 | 522.2 | |
| 0.00 | 2.08 | 0.00 | 1.64 | -9.77 | 227.33 | -48.75 | 107.50 | 0.7791 | 207.0 | 135.5 | |
| 0.00 | 1.90 | 0.00 | 1.46 | -7.14 | 227.73 | -48.35 | 104.34 | 0.7675 | 490.0 | 328.9 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -6.05 | 227.83 | -48.25 | 102.97 | 0.7636 | 361.0 | 320.0 | |
| 2.81 | 7.51 | 2.20 | 5.90 | -9.08 | 227.32 | -48.76 | 106.64 | 0.7772 | 575.5 | 269.6 | |
| 0.00 | 1.72 | 0.00 | 1.31 | -5.49 | 227.85 | -48.23 | 102.26 | 0.7620 | 531.0 | 325.1 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -10.17 | 227.06 | -49.02 | 107.90 | 0.7831 | 472.0 | 357.9 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -12.95 | 226.33 | -49.74 | 111.02 | 0.7990 | -478.0 | -457.0 | |
| 0.81 | -28.00 | 0.64 | -28.00 | -8.87 | 227.12 | -48.96 | 106.32 | 0.7787 | 493.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.40 | -6.99 | 227.29 | -48.79 | 104.01 | 0.7718 | 404.0 | 331.0 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -10.19 | 226.72 | -49.36 | 107.82 | 0.7867 | -242.0 | -231.7 | |
| 1.00 | 18.56 | 0.79 | 14.72 | -9.24 | 226.82 | -49.26 | 106.68 | 0.7829 | -334.8 | -3.7 | |
| 0.00 | 2.35 | 0.00 | 1.86 | -8.93 | 226.78 | -49.30 | 106.28 | 0.7824 | -139.0 | -123.3 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -8.30 | 226.80 | -49.28 | 105.51 | 0.7805 | 448.0 | 325.8 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -5.01 | 227.25 | -48.83 | 101.48 | 0.7674 | -710.0 | -621.8 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -5.26 | 227.23 | -48.85 | 101.79 | 0.7683 | -172.0 | -168.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -5.93 | 226.91 | -49.16 | 102.56 | 0.7732 | 701.0 | 620.0 | |
| 0.72 | 2.26 | 0.57 | 1.77 | -6.26 | 226.59 | -49.49 | 102.89 | 0.7775 | 596.6 | 519.1 | |
| 0.63 | 1.54 | 0.49 | 1.19 | -4.39 | 226.80 | -49.28 | 100.57 | 0.7710 | 250.1 | 200.8 | |
| 2.63 | 8.69 | 2.06 | 6.82 | -5.99 | 226.48 | -49.60 | 102.52 | 0.7780 | 643.9 | 525.8 | |
| 0.00 | 1.45 | 0.00 | 1.17 | -9.00 | 225.95 | -50.12 | 106.10 | 0.7911 | -732.0 | -699.4 | |
| 0.00 | 2.54 | 0.00 | 2.00 | -5.61 | 226.29 | -49.79 | 101.98 | 0.7792 | 204.0 | 289.0 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -5.75 | 226.08 | -49.99 | 102.10 | 0.7817 | 439.0 | 350.1 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -5.91 | 226.01 | -50.06 | 102.28 | 0.7828 | 322.0 | 288.0 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -4.14 | 226.11 | -49.97 | 100.08 | 0.7779 | -387.0 | -422.6 | |
| 21.10 | 121.50 | 17.03 | 98.49 | -7.41 | 225.51 | -50.57 | 104.01 | 0.7916 | 728.2 | 114.0 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -5.77 | 225.74 | -50.33 | 102.04 | 0.7853 | 424.0 | 327.5 | |
| 1.18 | 2.63 | 0.93 | 2.08 | -4.40 | 225.85 | -50.23 | 100.35 | 0.7813 | -465.8 | -392.9 | |
| 0.00 | 1.90 | 0.00 | 1.52 | -6.10 | 225.56 | -50.52 | 102.40 | 0.7880 | 548.0 | 381.4 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -6.35 | 225.47 | -50.60 | 102.69 | 0.7895 | 408.0 | 290.6 | |
| 0.72 | -49.00 | 0.59 | -49.00 | -6.90 | 225.20 | -50.88 | 103.30 | 0.7936 | 536.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -5.33 | 225.41 | -50.67 | 101.41 | 0.7879 | 183.0 | 170.5 | |
| 0.00 | 2.81 | 0.00 | 2.36 | -9.41 | 224.24 | -51.83 | 106.08 | 0.8094 | -290.0 | -241.1 | |
| 0.00 | 8.06 | 0.00 | 6.52 | -4.94 | 224.87 | -51.21 | 100.79 | 0.7927 | -666.0 | -479.6 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -9.87 | 223.58 | -52.49 | 106.43 | 0.8170 | -488.0 | -416.1 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -7.47 | 223.46 | -52.62 | 103.52 | 0.8125 | 223.0 | 207.1 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -7.71 | 222.44 | -53.64 | 103.54 | 0.8230 | 378.0 | 336.4 | |
| 0.00 | 1.63 | 0.00 | 1.54 | -5.94 | 218.66 | -57.41 | 100.58 | 0.8546 | -508.0 | -378.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
