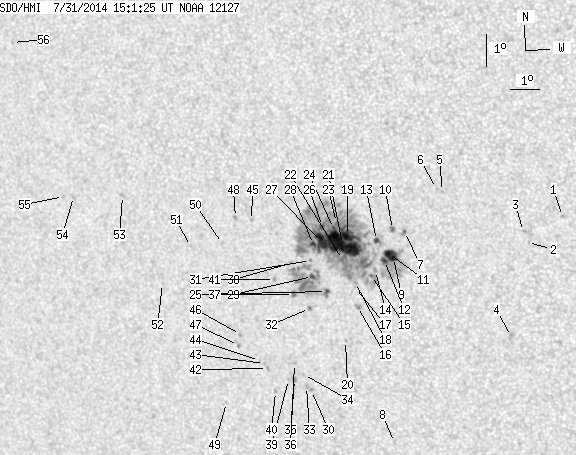

SDO HMI 2014-07-31 15:01:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.42 | 581.41 | 62.68 | 331.57 | -8.06 | 249.26 | -26.25 | 117.55 | 0.4958 | 539.5 | 203.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 15:01:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.97 | -6.57 | 256.86 | -18.66 | 123.18 | 0.3814 | 889.0 | 697.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -7.42 | 255.68 | -19.83 | 123.37 | 0.4046 | 454.0 | 595.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.08 | 255.57 | -19.95 | 122.51 | 0.4032 | 756.0 | 670.6 | |
| 0.00 | 3.89 | 0.00 | 2.15 | -10.40 | 254.98 | -20.54 | 128.20 | 0.4409 | 807.0 | 598.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -5.93 | 252.96 | -22.56 | 117.01 | 0.4301 | 728.0 | 654.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.85 | 252.76 | -22.75 | 116.62 | 0.4322 | 719.0 | 409.8 | |
| 0.54 | 2.72 | 0.30 | 1.51 | -7.23 | 251.62 | -23.89 | 118.23 | 0.4579 | -495.8 | -44.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -13.95 | 250.70 | -24.82 | 128.83 | 0.5249 | 782.0 | 579.4 | |
| 5.25 | 56.40 | 2.94 | 31.66 | -8.06 | 251.20 | -24.31 | 119.38 | 0.4697 | 1190.8 | 398.3 | |
| 0.81 | 2.53 | 0.45 | 1.42 | -7.18 | 251.22 | -24.29 | 117.74 | 0.4631 | 996.9 | 858.6 | |
| 5.97 | -9.00 | 3.35 | -9.00 | -7.94 | 251.04 | -24.48 | 118.99 | 0.4710 | 1073.8 | 999999 | |
| 2.90 | -9.00 | 1.63 | -9.00 | -8.17 | 250.89 | -24.63 | 119.26 | 0.4747 | 821.2 | 999999 | |
| 1.99 | 7.97 | 1.12 | 4.47 | -7.55 | 250.66 | -24.86 | 117.88 | 0.4733 | 991.5 | 702.1 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -8.49 | 250.56 | -24.95 | 119.54 | 0.4815 | 616.0 | 389.7 | |
| 0.54 | 377.50 | 0.31 | 214.62 | -8.66 | 250.42 | -25.10 | 119.69 | 0.4847 | 447.2 | 295.3 | |
| 0.00 | 2.99 | 0.00 | 1.71 | -9.65 | 249.86 | -25.66 | 120.91 | 0.4995 | -669.0 | -710.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -9.06 | 249.84 | -25.68 | 119.84 | 0.4953 | 193.0 | 116.6 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -8.90 | 249.85 | -25.67 | 119.57 | 0.4940 | 86.0 | 28.7 | |
| 16.75 | -15.00 | 9.48 | -15.00 | -7.44 | 249.68 | -25.83 | 116.75 | 0.4859 | 1258.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -10.75 | 249.35 | -26.17 | 122.27 | 0.5145 | -786.0 | -656.3 | |
| 46.08 | -15.00 | 26.16 | -15.00 | -7.72 | 249.49 | -26.02 | 117.11 | 0.4904 | 1114.4 | 999999 | |
| 0.72 | -15.00 | 0.41 | -15.00 | -8.20 | 249.46 | -26.06 | 117.94 | 0.4941 | 532.8 | 999999 | |
| 1.18 | -15.00 | 0.67 | -15.00 | -7.05 | 249.33 | -26.19 | 115.71 | 0.4880 | 858.8 | 999999 | |
| 1.90 | -15.00 | 1.08 | -15.00 | -7.24 | 249.22 | -26.30 | 115.97 | 0.4909 | 913.6 | 999999 | |
| 1.63 | 74.32 | 0.94 | 42.93 | -9.23 | 248.83 | -26.69 | 119.18 | 0.5098 | 567.0 | -7.3 | |
| 2.17 | -15.00 | 1.24 | -15.00 | -7.19 | 248.84 | -26.68 | 115.56 | 0.4957 | 795.5 | 999999 | |
| 16.29 | -15.00 | 9.31 | -15.00 | -7.66 | 248.78 | -26.74 | 116.36 | 0.4997 | 834.5 | 999999 | |
| 2.08 | -15.00 | 1.19 | -15.00 | -7.77 | 248.49 | -27.02 | 116.31 | 0.5042 | 709.9 | 999999 | |
| 1.72 | -25.00 | 0.99 | -25.00 | -8.78 | 248.38 | -27.14 | 117.99 | 0.5125 | 607.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -12.41 | 247.99 | -27.53 | 123.62 | 0.5442 | -695.0 | -587.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -8.28 | 248.35 | -27.17 | 117.09 | 0.5095 | 665.0 | 499.8 | |
| 0.63 | 2.26 | 0.37 | 1.31 | -9.79 | 248.19 | -27.33 | 119.56 | 0.5221 | -799.6 | -641.9 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -12.28 | 247.83 | -27.69 | 123.28 | 0.5452 | -767.0 | -644.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -11.90 | 247.76 | -27.75 | 122.62 | 0.5431 | -767.0 | -536.4 | |
| 0.00 | 2.63 | 0.00 | 1.55 | -12.08 | 247.43 | -28.09 | 122.59 | 0.5486 | -754.0 | -652.1 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -11.57 | 247.48 | -28.03 | 121.83 | 0.5440 | -903.0 | -681.0 | |
| 1.27 | -25.00 | 0.74 | -25.00 | -9.38 | 247.67 | -27.85 | 118.39 | 0.5260 | -894.9 | 999999 | |
| 0.00 | 3.53 | 0.00 | 2.05 | -8.40 | 247.61 | -27.91 | 116.68 | 0.5202 | 617.0 | 406.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.09 | 247.21 | -28.30 | 122.41 | 0.5513 | -604.0 | -488.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.50 | 246.70 | -28.81 | 122.58 | 0.5606 | -652.0 | -585.5 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -8.93 | 247.04 | -28.47 | 117.12 | 0.5312 | -765.0 | -636.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -11.77 | 246.50 | -29.01 | 121.28 | 0.5577 | -696.0 | -627.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -11.62 | 246.42 | -29.10 | 120.96 | 0.5577 | -653.0 | -512.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -11.53 | 246.25 | -29.27 | 120.68 | 0.5591 | -610.0 | -449.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -7.12 | 246.38 | -29.14 | 113.47 | 0.5288 | 660.0 | 496.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -10.74 | 245.66 | -29.86 | 118.93 | 0.5610 | -624.0 | -597.1 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -11.09 | 245.55 | -29.97 | 119.40 | 0.5648 | -703.0 | -569.1 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -7.05 | 245.82 | -29.70 | 112.95 | 0.5360 | 820.0 | 645.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -12.94 | 244.88 | -30.64 | 121.68 | 0.5858 | -532.0 | -442.7 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -7.89 | 245.29 | -30.22 | 114.00 | 0.5479 | -687.0 | -499.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -8.05 | 244.13 | -31.38 | 113.44 | 0.5642 | -627.0 | -440.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -9.27 | 243.00 | -32.52 | 114.63 | 0.5859 | -623.0 | -524.9 | |
| 0.00 | 2.17 | 0.00 | 1.33 | -6.58 | 241.78 | -33.74 | 109.60 | 0.5879 | -789.0 | -616.1 | |
| 0.00 | 2.63 | 0.00 | 1.64 | -6.72 | 239.94 | -35.58 | 108.83 | 0.6127 | -580.0 | -520.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -6.74 | 239.56 | -35.96 | 108.66 | 0.6178 | -515.0 | -452.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -2.08 | 237.88 | -37.63 | 100.69 | 0.6232 | -622.0 | -580.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
