SDO HMI 2014-07-31 15:01:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.24 | 40.83 | 5.10 | 25.30 | -20.62 | 249.30 | -26.21 | 136.40 | 0.6019 | 896.1 | 525.5 | |
|
previous
or next observation for the same group /

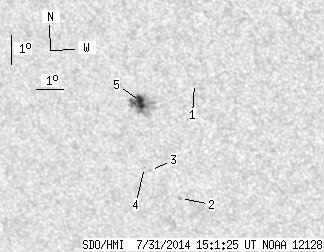

back to the solar disc SDO HMI 2014-07-31 15:01:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | -19.75 | 251.29 | -24.23 | 137.53 | 0.5742 | 802.0 | 635.6 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -23.75 | 250.03 | -25.48 | 140.81 | 0.6255 | 637.0 | 500.8 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -22.82 | 249.12 | -26.39 | 138.81 | 0.6244 | 709.0 | 608.8 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -22.72 | 248.92 | -26.60 | 138.49 | 0.6253 | 653.0 | 504.2 | |
| 8.24 | 37.03 | 5.10 | 22.92 | -20.45 | 249.23 | -26.29 | 136.12 | 0.6009 | 1049.7 | 520.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
