SDO HMI 2014-07-31 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.54 | 543.20 | 78.93 | 404.64 | -7.60 | 228.49 | -46.48 | 105.57 | 0.7477 | 580.3 | 272.4 | |
|
previous
or next observation for the same group /

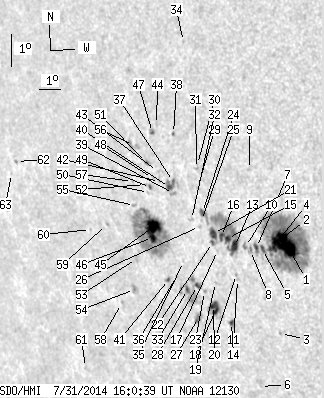

back to the solar disc SDO HMI 2014-07-31 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.73 | 219.32 | 13.89 | 154.79 | -7.65 | 231.61 | -43.36 | 106.72 | 0.7128 | 1085.6 | 388.9 | |
| 10.41 | -1.00 | 7.35 | -1.00 | -7.29 | 231.36 | -43.61 | 106.14 | 0.7146 | 1071.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -10.34 | 230.81 | -44.16 | 109.97 | 0.7315 | 572.0 | 511.8 | |
| 10.23 | -1.00 | 7.27 | -1.00 | -7.50 | 231.03 | -43.94 | 106.30 | 0.7190 | 766.8 | 999999 | |
| 1.72 | -1.00 | 1.24 | -1.00 | -7.73 | 230.44 | -44.53 | 106.39 | 0.7266 | 708.2 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -12.11 | 229.58 | -45.39 | 111.72 | 0.7516 | -474.0 | -437.6 | |
| 1.54 | -1.00 | 1.11 | -1.00 | -7.69 | 230.19 | -44.78 | 106.24 | 0.7294 | 714.6 | 999999 | |
| 0.00 | 3.35 | 0.00 | 2.43 | -7.80 | 229.91 | -45.06 | 106.29 | 0.7329 | 728.0 | 521.3 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -5.26 | 230.17 | -44.80 | 102.99 | 0.7224 | 51.0 | 85.4 | |
| 0.00 | 2.90 | 0.00 | 2.11 | -7.69 | 229.71 | -45.26 | 106.07 | 0.7348 | 750.0 | 585.2 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -8.76 | 229.20 | -45.77 | 107.28 | 0.7440 | 455.0 | 336.2 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -8.60 | 229.18 | -45.79 | 107.07 | 0.7437 | 648.0 | 544.7 | |
| 7.42 | 69.61 | 5.45 | 51.40 | -7.72 | 229.22 | -45.75 | 105.94 | 0.7405 | 781.6 | 451.6 | |
| 1.72 | 4.07 | 1.29 | 3.06 | -10.15 | 228.68 | -46.29 | 108.87 | 0.7542 | 358.4 | 65.7 | |
| 3.17 | -13.00 | 2.34 | -13.00 | -7.50 | 228.94 | -46.03 | 105.55 | 0.7429 | 865.9 | 999999 | |
| 2.90 | -13.00 | 2.14 | -13.00 | -7.45 | 228.68 | -46.29 | 105.40 | 0.7457 | 679.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -7.91 | 228.44 | -46.53 | 105.91 | 0.7498 | 404.0 | 305.6 | |
| 3.71 | 15.66 | 2.82 | 11.90 | -9.82 | 228.02 | -46.95 | 108.21 | 0.7602 | 722.1 | 351.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -8.93 | 228.18 | -46.79 | 107.13 | 0.7557 | 620.0 | 538.2 | |
| 4.34 | -18.00 | 3.30 | -18.00 | -9.66 | 227.96 | -47.01 | 107.99 | 0.7604 | 777.5 | 999999 | |
| 4.98 | -13.00 | 3.71 | -13.00 | -7.38 | 228.33 | -46.64 | 105.20 | 0.7494 | 604.4 | 999999 | |
| 1.09 | -13.00 | 0.81 | -13.00 | -7.67 | 228.25 | -46.72 | 105.54 | 0.7512 | 446.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -9.25 | 227.63 | -47.34 | 107.34 | 0.7627 | 570.0 | 478.0 | |
| 2.35 | 7.51 | 1.76 | 5.62 | -6.76 | 227.92 | -47.05 | 104.26 | 0.7522 | 630.4 | 465.4 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -7.02 | 227.84 | -47.13 | 104.56 | 0.7538 | 440.0 | 420.7 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -7.21 | 227.73 | -47.24 | 104.78 | 0.7556 | 559.0 | 402.8 | |
| 0.00 | 6.16 | 0.00 | 4.76 | -10.10 | 227.19 | -47.78 | 108.26 | 0.7700 | 456.0 | 342.0 | |
| 1.99 | 25.98 | 1.53 | 20.06 | -9.08 | 227.34 | -47.63 | 107.03 | 0.7653 | 544.9 | 49.5 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -6.03 | 227.79 | -47.18 | 103.26 | 0.7517 | 434.0 | 398.6 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -5.28 | 227.87 | -47.10 | 102.31 | 0.7489 | 268.0 | 334.4 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -5.40 | 227.81 | -47.16 | 102.46 | 0.7499 | 582.0 | 395.9 | |
| 0.00 | 2.17 | 0.00 | 1.65 | -7.02 | 227.39 | -47.58 | 104.42 | 0.7588 | 558.0 | 367.8 | |
| 1.18 | -28.00 | 0.91 | -28.00 | -9.25 | 226.85 | -48.12 | 107.07 | 0.7710 | -476.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -1.52 | 227.49 | -47.48 | 97.25 | 0.7450 | -466.0 | -445.4 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -8.37 | 226.81 | -48.16 | 105.96 | 0.7688 | 345.0 | 342.7 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -8.87 | 226.40 | -48.57 | 106.45 | 0.7746 | -534.0 | -478.2 | |
| 1.09 | 10.59 | 0.83 | 8.11 | -5.89 | 226.71 | -48.26 | 102.77 | 0.7634 | 642.2 | 538.7 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -4.39 | 226.86 | -48.11 | 100.88 | 0.7581 | 1.0 | 209.7 | |
| 0.00 | 2.72 | 0.00 | 2.08 | -6.26 | 226.66 | -48.31 | 103.24 | 0.7648 | 719.0 | 556.8 | |
| 2.26 | -37.00 | 1.74 | -37.00 | -6.09 | 226.50 | -48.47 | 102.97 | 0.7661 | 676.6 | 999999 | |
| 0.91 | 2.72 | 0.71 | 2.14 | -9.00 | 226.00 | -48.97 | 106.47 | 0.7792 | -702.1 | -591.2 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -5.94 | 226.05 | -48.92 | 102.64 | 0.7706 | 301.0 | 273.9 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -5.63 | 225.99 | -48.98 | 102.24 | 0.7705 | 363.0 | 305.5 | |
| 0.00 | 1.63 | 0.00 | 1.25 | -4.17 | 226.09 | -48.88 | 100.40 | 0.7661 | -489.0 | -391.4 | |
| 16.47 | 116.13 | 12.97 | 91.86 | -7.37 | 225.57 | -49.40 | 104.31 | 0.7794 | 826.2 | 150.3 | |
| 4.98 | -45.00 | 3.93 | -45.00 | -7.72 | 225.47 | -49.50 | 104.72 | 0.7814 | 616.4 | 999999 | |
| 0.91 | 3.26 | 0.70 | 2.52 | -4.44 | 225.88 | -49.09 | 100.68 | 0.7690 | -641.7 | -454.2 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -5.87 | 225.73 | -49.24 | 102.47 | 0.7739 | 304.0 | 271.2 | |
| 0.81 | 1.72 | 0.64 | 1.35 | -6.16 | 225.60 | -49.37 | 102.80 | 0.7760 | 527.9 | 455.9 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -6.32 | 225.48 | -49.49 | 102.97 | 0.7777 | 302.0 | 333.1 | |
| 0.63 | 2.35 | 0.49 | 1.84 | -5.39 | 225.50 | -49.47 | 101.80 | 0.7752 | 189.3 | 210.2 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -6.08 | 225.37 | -49.60 | 102.64 | 0.7783 | 265.0 | 232.1 | |
| 0.00 | 3.08 | 0.00 | 2.49 | -8.45 | 224.57 | -50.40 | 105.35 | 0.7925 | 90.0 | 156.0 | |
| 0.00 | 5.61 | 0.00 | 4.59 | -9.44 | 224.28 | -50.69 | 106.47 | 0.7981 | -446.0 | -261.9 | |
| 0.00 | 1.90 | 0.00 | 1.52 | -6.78 | 224.75 | -50.22 | 103.34 | 0.7865 | 431.0 | 299.2 | |
| 0.00 | 6.88 | 0.00 | 5.43 | -4.91 | 224.94 | -50.03 | 101.04 | 0.7802 | -574.0 | -515.4 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -6.04 | 224.76 | -50.21 | 102.41 | 0.7847 | 262.0 | 177.6 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -9.94 | 223.53 | -51.44 | 106.84 | 0.8069 | -559.0 | -515.8 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -7.49 | 223.27 | -51.70 | 103.80 | 0.8034 | 396.0 | 322.5 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -7.71 | 222.42 | -52.55 | 103.83 | 0.8123 | 452.0 | 388.4 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -12.16 | 221.10 | -53.87 | 108.69 | 0.8356 | -584.0 | -519.5 | |
| 0.00 | 1.45 | 0.00 | 1.33 | -5.90 | 218.82 | -56.15 | 100.80 | 0.8431 | -531.0 | -478.4 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -6.30 | 218.47 | -56.50 | 101.19 | 0.8470 | -295.0 | -285.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
