SDO HMI 2014-07-31 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.12 | 557.26 | 79.90 | 401.85 | -7.55 | 228.61 | -44.69 | 106.14 | 0.7274 | 582.8 | 283.0 | |
|
previous
or next observation for the same group /

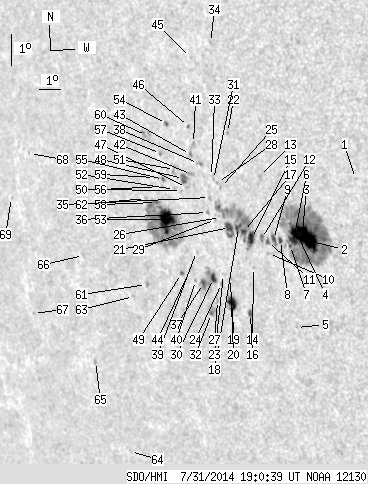

back to the solar disc SDO HMI 2014-07-31 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.89 | -5.51 | 233.78 | -39.52 | 105.23 | 0.6588 | 556.0 | 455.3 | |
| 18.19 | 232.93 | 12.44 | 159.73 | -7.61 | 231.75 | -41.55 | 107.39 | 0.6913 | 1209.9 | 394.7 | |
| 10.77 | -2.00 | 7.38 | -2.00 | -7.28 | 231.46 | -41.84 | 106.82 | 0.6936 | 1157.3 | 999999 | |
| 3.62 | -2.00 | 2.49 | -2.00 | -7.54 | 231.31 | -42.00 | 107.12 | 0.6964 | 1016.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -10.37 | 230.77 | -42.54 | 110.73 | 0.7134 | 548.0 | 427.0 | |
| 9.59 | -2.00 | 6.62 | -2.00 | -7.46 | 231.11 | -42.20 | 106.93 | 0.6985 | 793.7 | 999999 | |
| 0.90 | -2.00 | 0.63 | -2.00 | -7.79 | 230.90 | -42.40 | 107.30 | 0.7021 | 495.4 | 999999 | |
| 1.27 | -2.00 | 0.88 | -2.00 | -7.66 | 230.50 | -42.81 | 106.96 | 0.7064 | 727.5 | 999999 | |
| 2.26 | -2.00 | 1.59 | -2.00 | -7.65 | 230.21 | -43.10 | 106.83 | 0.7098 | 762.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -8.11 | 229.93 | -43.37 | 107.34 | 0.7145 | 498.0 | 432.7 | |
| 0.90 | 2.81 | 0.64 | 1.98 | -7.73 | 229.94 | -43.36 | 106.84 | 0.7132 | 671.4 | 534.2 | |
| 0.00 | 3.44 | 0.00 | 2.43 | -7.65 | 229.70 | -43.61 | 106.64 | 0.7158 | 689.0 | 531.3 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -5.72 | 229.83 | -43.47 | 104.05 | 0.7080 | 113.0 | 142.7 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -8.59 | 229.22 | -44.08 | 107.72 | 0.7244 | 729.0 | 584.4 | |
| 6.24 | 79.09 | 4.45 | 56.78 | -7.68 | 229.27 | -44.04 | 106.52 | 0.7209 | 854.0 | 483.5 | |
| 1.63 | 3.98 | 1.18 | 2.89 | -10.06 | 228.85 | -44.45 | 109.50 | 0.7338 | 558.1 | 250.4 | |
| 2.90 | -15.00 | 2.07 | -15.00 | -7.49 | 228.95 | -44.36 | 106.14 | 0.7239 | 932.9 | 999999 | |
| 3.44 | -15.00 | 2.47 | -15.00 | -7.38 | 228.75 | -44.56 | 105.92 | 0.7259 | 739.9 | 999999 | |
| 8.60 | 12.58 | 6.32 | 9.25 | -9.80 | 228.11 | -45.19 | 108.86 | 0.7411 | 741.3 | 396.9 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -9.01 | 228.16 | -45.15 | 107.86 | 0.7379 | 723.0 | 666.4 | |
| 4.62 | -15.00 | 3.34 | -15.00 | -7.41 | 228.35 | -44.95 | 105.82 | 0.7305 | 678.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -4.44 | 228.58 | -44.73 | 101.91 | 0.7193 | -665.0 | -637.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -8.91 | 227.87 | -45.44 | 107.61 | 0.7408 | 493.0 | 502.0 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -9.20 | 227.73 | -45.57 | 107.94 | 0.7433 | 603.0 | 458.1 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -6.18 | 228.11 | -45.20 | 104.10 | 0.7296 | 477.0 | 400.6 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -7.12 | 228.00 | -45.31 | 105.31 | 0.7337 | 323.0 | 383.3 | |
| 0.00 | 2.53 | 0.00 | 1.89 | -9.76 | 227.46 | -45.85 | 108.55 | 0.7482 | 295.0 | 102.1 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -6.03 | 228.00 | -45.31 | 103.87 | 0.7305 | 503.0 | 459.5 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -7.20 | 227.77 | -45.54 | 105.34 | 0.7365 | 383.0 | 336.2 | |
| 3.53 | 21.81 | 2.62 | 16.26 | -9.07 | 227.40 | -45.91 | 107.64 | 0.7465 | 485.8 | 0.6 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -5.95 | 227.83 | -45.48 | 103.71 | 0.7322 | 378.0 | 302.1 | |
| 0.63 | 5.79 | 0.48 | 4.34 | -10.19 | 227.11 | -46.20 | 108.97 | 0.7534 | 634.0 | 356.8 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -5.86 | 227.75 | -45.55 | 103.56 | 0.7329 | 238.0 | 252.0 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -1.71 | 228.00 | -45.31 | 98.02 | 0.7199 | -486.0 | -480.8 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -6.53 | 227.59 | -45.72 | 104.39 | 0.7366 | 232.0 | 243.4 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -7.00 | 227.44 | -45.87 | 104.97 | 0.7397 | 494.0 | 403.2 | |
| 1.81 | -30.00 | 1.36 | -30.00 | -9.26 | 226.92 | -46.39 | 107.71 | 0.7524 | -308.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.32 | -5.50 | 227.22 | -46.09 | 102.91 | 0.7380 | 526.0 | 438.5 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -8.27 | 226.77 | -46.54 | 106.39 | 0.7510 | 491.0 | 417.5 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -9.19 | 226.57 | -46.73 | 107.50 | 0.7560 | -485.0 | -408.3 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -4.89 | 227.06 | -46.25 | 102.06 | 0.7383 | -661.0 | -411.2 | |
| 0.00 | 2.53 | 0.00 | 1.87 | -5.87 | 226.87 | -46.44 | 103.29 | 0.7430 | 734.0 | 611.1 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -5.24 | 226.89 | -46.42 | 102.48 | 0.7411 | 362.0 | 303.0 | |
| 0.00 | 1.81 | 0.00 | 1.37 | -8.83 | 226.41 | -46.90 | 106.98 | 0.7566 | -600.0 | -465.5 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -2.24 | 227.10 | -46.20 | 98.52 | 0.7316 | -404.0 | -448.8 | |
| 0.45 | 1.36 | 0.33 | 0.99 | -4.38 | 226.88 | -46.43 | 101.33 | 0.7390 | 234.4 | 193.2 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -6.29 | 226.60 | -46.71 | 103.76 | 0.7472 | 652.0 | 544.5 | |
| 3.08 | 6.15 | 2.29 | 4.57 | -6.02 | 226.49 | -46.81 | 103.37 | 0.7476 | 685.6 | 571.4 | |
| 0.72 | 1.63 | 0.55 | 1.24 | -9.02 | 225.97 | -47.34 | 107.06 | 0.7620 | -739.0 | -646.9 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -6.40 | 226.36 | -46.95 | 103.83 | 0.7502 | 399.0 | 324.4 | |
| 0.00 | 4.98 | 0.00 | 3.72 | -5.77 | 226.12 | -47.19 | 102.93 | 0.7512 | 293.0 | 399.2 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -6.39 | 226.04 | -47.27 | 103.72 | 0.7537 | 455.0 | 355.0 | |
| 23.44 | 119.45 | 17.85 | 91.33 | -7.36 | 225.55 | -47.76 | 104.82 | 0.7618 | 855.3 | 154.1 | |
| 0.72 | 1.72 | 0.54 | 1.28 | -4.36 | 225.89 | -47.41 | 101.03 | 0.7502 | -642.0 | -534.3 | |
| 0.72 | 2.08 | 0.55 | 1.58 | -6.12 | 225.57 | -47.73 | 103.23 | 0.7581 | 506.5 | 403.7 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -6.34 | 225.46 | -47.85 | 103.48 | 0.7600 | 417.0 | 353.6 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -5.31 | 225.53 | -47.78 | 102.18 | 0.7566 | 67.0 | 135.9 | |
| 1.09 | -53.00 | 0.83 | -53.00 | -6.86 | 225.16 | -48.15 | 104.06 | 0.7646 | 513.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -6.09 | 225.17 | -48.14 | 103.07 | 0.7625 | 156.0 | 179.0 | |
| 0.00 | 6.97 | 0.00 | 5.31 | -4.80 | 224.94 | -48.37 | 101.35 | 0.7619 | -611.0 | -472.0 | |
| 0.00 | 1.99 | 0.00 | 1.57 | -9.49 | 224.25 | -49.05 | 107.07 | 0.7816 | -459.0 | -362.4 | |
| 0.00 | 1.81 | 0.00 | 1.40 | -6.78 | 224.66 | -48.65 | 103.80 | 0.7698 | 291.0 | 137.0 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -9.92 | 223.54 | -49.76 | 107.37 | 0.7901 | -565.0 | -400.6 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -14.98 | 222.02 | -51.29 | 112.85 | 0.8201 | -307.0 | -242.4 | |
| 0.00 | 1.90 | 0.00 | 1.64 | -12.17 | 221.11 | -52.20 | 109.25 | 0.8202 | -516.0 | -497.7 | |
| 0.00 | 1.90 | 0.00 | 1.60 | -8.81 | 221.32 | -51.99 | 105.32 | 0.8095 | -435.0 | -389.7 | |
| 0.00 | 0.90 | 0.00 | 0.83 | -10.89 | 218.20 | -55.10 | 106.87 | 0.8437 | -406.0 | -328.1 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -5.82 | 219.06 | -54.24 | 101.15 | 0.8250 | -334.0 | -422.4 | |
| 0.00 | 0.63 | 0.00 | 0.57 | -7.29 | 217.85 | -55.45 | 102.59 | 0.8392 | -262.0 | -243.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
