SDO HMI 2014-07-31 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.22 | 0.00 | 16.69 | 11.50 | 257.73 | -15.03 | 68.48 | 0.2829 | 643.7 | 533.6 | |
|
previous
or next observation for the same group /

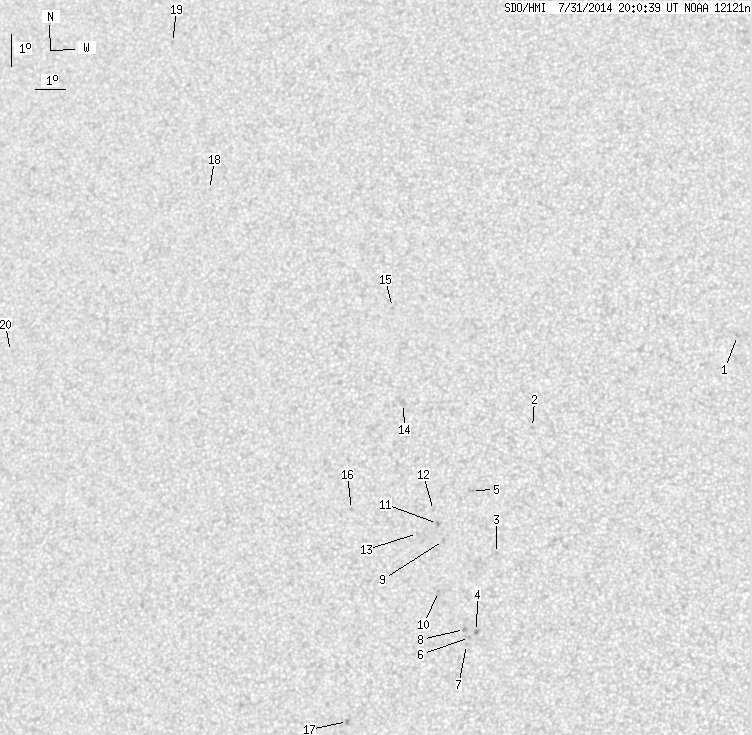

back to the solar disc SDO HMI 2014-07-31 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.92 | 16.44 | 267.53 | -5.22 | 25.14 | 0.2062 | -784.0 | -664.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.52 | 261.12 | -11.64 | 55.03 | 0.2404 | -777.0 | -631.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.64 | 260.14 | -12.61 | 71.92 | 0.2275 | 828.0 | 664.1 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 7.26 | 259.59 | -13.17 | 82.71 | 0.2288 | 1041.0 | 922.8 | |
| 0.00 | 2.71 | 0.00 | 1.39 | 11.55 | 259.26 | -13.49 | 65.58 | 0.2521 | 738.0 | 624.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.07 | 259.37 | -13.38 | 83.61 | 0.2321 | 892.0 | 689.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 6.85 | 259.28 | -13.47 | 84.56 | 0.2334 | 770.0 | 639.3 | |
| 0.00 | 2.44 | 0.00 | 1.25 | 7.31 | 259.21 | -13.55 | 82.65 | 0.2353 | 997.0 | 794.2 | |
| 0.00 | 2.44 | 0.00 | 1.25 | 10.00 | 258.44 | -14.31 | 72.40 | 0.2565 | 809.0 | 672.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.45 | 258.35 | -14.41 | 78.48 | 0.2523 | 841.0 | 756.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 10.52 | 258.23 | -14.53 | 70.72 | 0.2624 | 918.0 | 718.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 10.91 | 258.08 | -14.67 | 69.46 | 0.2668 | 811.0 | 598.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.20 | 257.60 | -15.15 | 72.53 | 0.2709 | 747.0 | 562.0 | |
| 0.00 | 4.34 | 0.00 | 2.26 | 14.16 | 256.92 | -15.84 | 60.45 | 0.3055 | 846.0 | 533.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.11 | 256.32 | -16.43 | 53.38 | 0.3383 | 688.0 | 537.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 10.87 | 255.44 | -17.31 | 72.21 | 0.3083 | 845.0 | 597.8 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 4.42 | 255.57 | -17.18 | 93.65 | 0.2964 | 1059.0 | 838.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 20.60 | 249.63 | -23.12 | 54.33 | 0.4543 | 677.0 | 489.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 25.21 | 247.42 | -25.34 | 48.55 | 0.5186 | 412.0 | 301.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 15.27 | 243.37 | -29.39 | 69.40 | 0.5077 | 516.0 | 556.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
