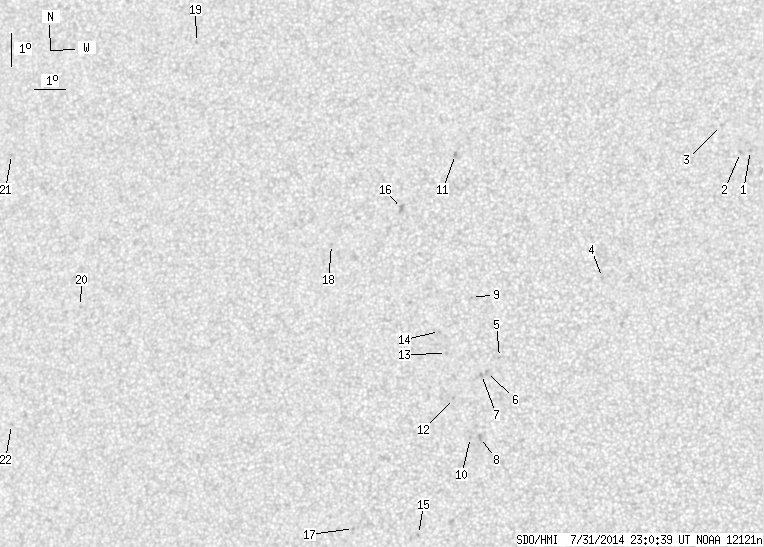

SDO HMI 2014-07-31 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.71 | 0.00 | 16.81 | 11.58 | 257.91 | -13.18 | 63.05 | 0.2601 | 546.6 | 500.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.68 | 16.19 | 267.88 | -3.21 | 16.54 | 0.1898 | -829.0 | -631.5 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 16.13 | 267.57 | -3.53 | 18.17 | 0.1903 | -866.0 | -674.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.96 | 266.95 | -4.15 | 19.58 | 0.2072 | -835.0 | -730.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.25 | 263.30 | -7.79 | 49.33 | 0.1754 | -814.0 | -577.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.76 | 260.15 | -10.95 | 69.12 | 0.2012 | 725.0 | 575.3 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 9.29 | 259.75 | -11.34 | 71.90 | 0.2051 | 865.0 | 733.0 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 9.23 | 259.60 | -11.50 | 72.41 | 0.2073 | 858.0 | 775.4 | |
| 0.00 | 2.99 | 0.00 | 1.51 | 7.31 | 259.62 | -11.47 | 81.66 | 0.2003 | 939.0 | 827.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.57 | 259.19 | -11.90 | 62.92 | 0.2279 | 914.0 | 680.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.30 | 259.31 | -11.79 | 81.87 | 0.2056 | 979.0 | 833.8 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 15.95 | 258.45 | -12.64 | 49.58 | 0.2776 | 990.0 | 777.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 8.48 | 258.74 | -12.35 | 76.80 | 0.2183 | 838.0 | 736.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.85 | 258.47 | -12.62 | 71.14 | 0.2285 | 961.0 | 745.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.51 | 258.22 | -12.87 | 68.74 | 0.2360 | 862.0 | 737.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 4.32 | 257.74 | -13.35 | 95.59 | 0.2324 | 838.0 | 710.8 | |
| 0.00 | 4.34 | 0.00 | 2.24 | 14.25 | 256.81 | -14.28 | 57.80 | 0.2838 | 982.0 | 776.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 4.45 | 255.69 | -15.40 | 94.17 | 0.2667 | 995.0 | 797.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 13.09 | 254.61 | -16.48 | 64.55 | 0.3073 | 720.0 | 604.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 19.19 | 249.48 | -21.62 | 55.53 | 0.4238 | 782.0 | 620.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 10.92 | 246.43 | -24.66 | 76.45 | 0.4232 | 629.0 | 533.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 15.47 | 243.51 | -27.58 | 68.08 | 0.4830 | 766.0 | 589.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 7.23 | 244.35 | -26.74 | 85.37 | 0.4497 | 727.0 | 621.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
