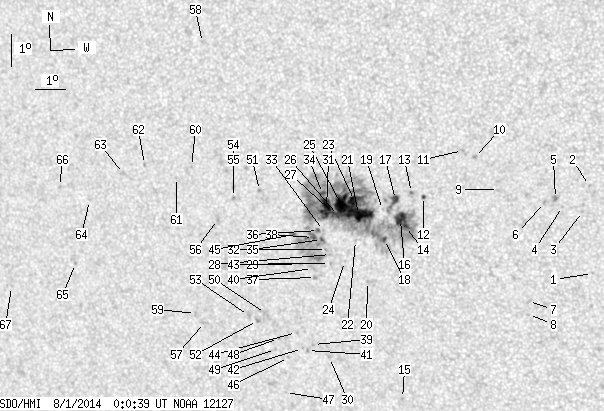

SDO HMI 2014-08-01 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.33 | 571.90 | 60.79 | 313.56 | -7.86 | 249.33 | -21.21 | 122.65 | 0.4272 | 566.2 | 277.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.43 | -9.39 | 257.18 | -13.36 | 138.63 | 0.3464 | 582.0 | 372.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -6.63 | 257.18 | -13.36 | 132.75 | 0.3139 | 852.0 | 693.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -7.45 | 256.94 | -13.60 | 134.09 | 0.3261 | 720.0 | 554.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -7.31 | 256.31 | -14.23 | 132.48 | 0.3320 | 676.0 | 557.6 | |
| 0.00 | 2.99 | 0.00 | 1.57 | -7.06 | 256.10 | -14.44 | 131.50 | 0.3319 | 1142.0 | 901.5 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -7.20 | 255.74 | -14.80 | 131.11 | 0.3378 | 824.0 | 699.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -10.32 | 255.10 | -15.44 | 136.25 | 0.3805 | 761.0 | 654.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.74 | 255.08 | -15.47 | 136.96 | 0.3855 | 614.0 | 499.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -6.83 | 254.29 | -16.25 | 127.63 | 0.3523 | 286.0 | 398.6 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -5.85 | 253.56 | -16.98 | 124.16 | 0.3526 | 930.0 | 794.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -5.65 | 253.18 | -17.36 | 123.09 | 0.3559 | 731.0 | 473.8 | |
| 0.91 | 2.08 | 0.49 | 1.12 | -7.12 | 251.87 | -18.67 | 124.44 | 0.3868 | -700.5 | -507.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.01 | 251.49 | -19.05 | 123.65 | 0.3909 | 1012.0 | 897.8 | |
| 2.90 | 499.35 | 1.57 | 273.14 | -8.08 | 251.24 | -19.30 | 125.54 | 0.4039 | 1028.6 | 354.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -13.55 | 250.76 | -19.78 | 134.66 | 0.4645 | 534.0 | 499.5 | |
| 11.13 | -14.00 | 6.02 | -14.00 | -7.86 | 251.09 | -19.45 | 124.89 | 0.4039 | 1159.8 | 999999 | |
| 4.16 | -14.00 | 2.25 | -14.00 | -7.24 | 250.96 | -19.59 | 123.42 | 0.4001 | 1150.8 | 999999 | |
| 1.54 | -14.00 | 0.84 | -14.00 | -8.51 | 250.53 | -20.01 | 125.42 | 0.4170 | 309.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -7.57 | 250.52 | -20.03 | 123.51 | 0.4088 | 635.0 | 515.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.85 | 249.89 | -20.65 | 127.12 | 0.4376 | -824.0 | -620.9 | |
| 27.15 | -14.00 | 14.81 | -14.00 | -7.75 | 249.72 | -20.82 | 122.85 | 0.4210 | 1235.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.57 | 249.57 | -20.97 | 124.28 | 0.4300 | 545.0 | 350.2 | |
| 11.59 | -14.00 | 6.31 | -14.00 | -7.32 | 249.61 | -20.93 | 121.83 | 0.4188 | 1372.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.25 | 249.17 | -21.37 | 125.05 | 0.4412 | 498.0 | 214.1 | |
| 22.99 | -14.00 | 12.58 | -14.00 | -7.46 | 249.17 | -21.37 | 121.58 | 0.4258 | 1153.7 | 999999 | |
| 2.44 | -14.00 | 1.34 | -14.00 | -7.81 | 249.06 | -21.48 | 122.13 | 0.4303 | 885.3 | 999999 | |
| 2.72 | -14.00 | 1.49 | -14.00 | -7.75 | 248.89 | -21.65 | 121.83 | 0.4320 | 887.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.05 | 248.72 | -21.82 | 124.11 | 0.4452 | 659.0 | 562.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.33 | 248.66 | -21.88 | 124.58 | 0.4484 | 501.0 | 480.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -12.32 | 248.43 | -22.11 | 129.52 | 0.4787 | -775.0 | -610.3 | |
| 17.92 | -14.00 | 9.85 | -14.00 | -7.61 | 248.67 | -21.87 | 121.27 | 0.4337 | 932.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.89 | 248.59 | -21.95 | 123.67 | 0.4455 | 490.0 | 475.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -8.30 | 248.53 | -22.01 | 122.46 | 0.4413 | 706.0 | 550.6 | |
| 1.81 | -14.00 | 0.99 | -14.00 | -7.14 | 248.56 | -21.98 | 120.21 | 0.4315 | 871.8 | 999999 | |
| 1.09 | -14.00 | 0.60 | -14.00 | -8.58 | 248.45 | -22.09 | 122.91 | 0.4448 | 921.5 | 999999 | |
| 0.81 | -14.00 | 0.45 | -14.00 | -8.31 | 248.37 | -22.18 | 122.27 | 0.4436 | 758.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -9.79 | 248.17 | -22.37 | 124.81 | 0.4588 | -751.0 | -713.8 | |
| 1.45 | -14.00 | 0.80 | -14.00 | -8.53 | 248.19 | -22.36 | 122.50 | 0.4478 | 715.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.93 | 247.93 | -22.62 | 128.23 | 0.4809 | -763.0 | -726.8 | |
| 0.00 | 3.08 | 0.00 | 1.71 | -9.51 | 248.09 | -22.45 | 124.21 | 0.4574 | -841.0 | -731.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -12.13 | 247.70 | -22.84 | 128.30 | 0.4854 | -788.0 | -701.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -12.07 | 247.54 | -23.00 | 128.00 | 0.4869 | -644.0 | -531.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.37 | 247.69 | -22.85 | 123.48 | 0.4612 | -931.0 | -730.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -11.57 | 247.38 | -23.16 | 126.97 | 0.4842 | -799.0 | -695.0 | |
| 0.72 | -14.00 | 0.40 | -14.00 | -8.46 | 247.52 | -23.02 | 121.61 | 0.4560 | 700.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -12.38 | 247.04 | -23.50 | 127.91 | 0.4957 | -718.0 | -525.2 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -13.51 | 246.82 | -23.72 | 129.45 | 0.5086 | -715.0 | -568.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -11.78 | 246.75 | -23.79 | 126.60 | 0.4938 | -816.0 | -692.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -12.14 | 246.62 | -23.92 | 127.03 | 0.4986 | -684.0 | -487.8 | |
| 0.00 | 6.61 | 0.00 | 3.75 | -11.00 | 246.38 | -24.16 | 124.87 | 0.4916 | -679.0 | -628.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -7.13 | 246.46 | -24.08 | 117.93 | 0.4600 | 875.0 | 687.7 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -11.24 | 246.09 | -24.45 | 124.94 | 0.4972 | -806.0 | -662.4 | |
| 0.00 | 1.99 | 0.00 | 1.14 | -11.09 | 245.80 | -24.75 | 124.38 | 0.4997 | -695.0 | -486.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.39 | 245.57 | -24.97 | 117.54 | 0.4740 | 716.0 | 616.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.04 | 245.59 | -24.95 | 116.91 | 0.4714 | 791.0 | 681.3 | |
| 0.00 | 3.89 | 0.00 | 2.20 | -8.10 | 244.98 | -25.56 | 118.30 | 0.4871 | -652.0 | -361.9 | |
| 0.00 | 2.72 | 0.00 | 1.57 | -11.38 | 244.25 | -26.29 | 123.26 | 0.5212 | -701.0 | -657.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -2.62 | 244.73 | -25.81 | 107.36 | 0.4576 | 670.0 | 535.3 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -11.11 | 243.97 | -26.57 | 122.53 | 0.5227 | -719.0 | -603.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -6.48 | 244.20 | -26.34 | 114.59 | 0.4869 | -587.0 | -492.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -6.85 | 243.66 | -26.88 | 114.82 | 0.4966 | -603.0 | -493.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.49 | 242.58 | -27.96 | 113.31 | 0.5093 | -703.0 | -649.3 | |
| 0.00 | 2.99 | 0.00 | 1.73 | -6.81 | 241.82 | -28.72 | 113.31 | 0.5215 | -500.0 | -352.2 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -7.71 | 240.56 | -29.98 | 113.94 | 0.5439 | -622.0 | -452.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -9.72 | 239.87 | -30.67 | 116.74 | 0.5651 | -779.0 | -657.4 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.33 | 239.52 | -31.02 | 112.56 | 0.5556 | -637.0 | -471.1 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -10.58 | 237.44 | -33.10 | 116.32 | 0.6011 | -653.0 | -498.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
