SDO HMI 2014-08-01 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.75 | 35.48 | 9.97 | 21.23 | -20.79 | 248.82 | -21.72 | 141.86 | 0.5621 | 786.7 | 402.0 | |
|
previous
or next observation for the same group /

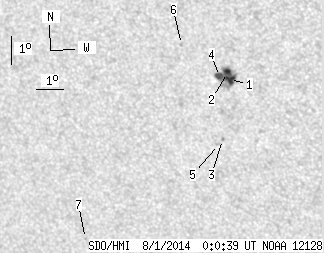

back to the solar disc SDO HMI 2014-08-01 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.24 | 30.68 | 4.31 | 18.28 | -20.61 | 249.18 | -21.36 | 142.10 | 0.5570 | 962.1 | 420.7 | |
| 4.89 | -1.00 | 2.91 | -1.00 | -20.37 | 249.15 | -21.39 | 141.77 | 0.5548 | 1182.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.68 | 248.60 | -21.94 | 143.73 | 0.5848 | 751.0 | 572.6 | |
| 4.62 | -1.00 | 2.75 | -1.00 | -20.52 | 248.85 | -21.70 | 141.56 | 0.5591 | 738.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -22.86 | 248.43 | -22.11 | 143.72 | 0.5882 | 569.0 | 473.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -19.48 | 247.67 | -22.87 | 138.85 | 0.5589 | 635.0 | 582.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -26.42 | 242.74 | -27.80 | 141.36 | 0.6712 | -583.0 | -506.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
