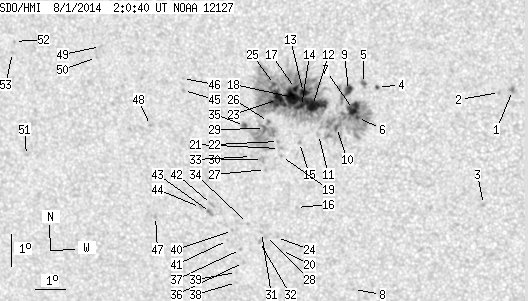

SDO HMI 2014-08-01 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.01 | 570.64 | 47.14 | 310.45 | -7.87 | 249.40 | -20.04 | 124.18 | 0.4119 | 482.7 | 323.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.99 | 0.00 | 1.56 | -7.09 | 256.22 | -13.22 | 134.13 | 0.3175 | 1082.0 | 856.9 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -7.16 | 255.81 | -13.63 | 133.41 | 0.3232 | 833.0 | 663.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -10.70 | 255.16 | -14.28 | 139.18 | 0.3724 | 585.0 | 550.0 | |
| 0.72 | 1.90 | 0.39 | 1.01 | -7.11 | 251.93 | -17.51 | 126.18 | 0.3715 | -547.2 | -507.6 | |
| 0.91 | 4.35 | 0.48 | 2.32 | -6.99 | 251.48 | -17.96 | 125.25 | 0.3763 | 1054.8 | 789.9 | |
| 1.27 | 508.88 | 0.68 | 276.27 | -8.06 | 251.24 | -18.20 | 127.15 | 0.3896 | 1028.9 | 398.0 | |
| 11.23 | -6.00 | 6.03 | -6.00 | -7.82 | 251.12 | -18.32 | 126.46 | 0.3888 | 1148.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -13.54 | 250.75 | -18.69 | 136.28 | 0.4525 | 715.0 | 543.3 | |
| 5.52 | -6.00 | 2.96 | -6.00 | -7.23 | 250.99 | -18.45 | 125.02 | 0.3850 | 1139.1 | 999999 | |
| 1.27 | -6.00 | 0.69 | -6.00 | -8.40 | 250.54 | -18.90 | 126.79 | 0.4018 | 468.4 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -8.64 | 249.94 | -19.50 | 126.41 | 0.4117 | 264.0 | 278.4 | |
| 17.47 | -6.00 | 9.46 | -6.00 | -7.74 | 249.79 | -19.65 | 124.38 | 0.4053 | 1257.8 | 999999 | |
| 4.71 | -6.00 | 2.55 | -6.00 | -7.34 | 249.52 | -19.92 | 123.19 | 0.4055 | 1416.8 | 999999 | |
| 2.17 | -6.00 | 1.18 | -6.00 | -7.78 | 249.43 | -20.01 | 123.98 | 0.4105 | 1128.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -8.91 | 249.31 | -20.13 | 126.06 | 0.4224 | 669.0 | 508.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -10.97 | 249.07 | -20.37 | 129.54 | 0.4450 | -784.0 | -473.2 | |
| 2.63 | -6.00 | 1.42 | -6.00 | -7.22 | 249.26 | -20.17 | 122.61 | 0.4079 | 1131.4 | 999999 | |
| 16.39 | -6.00 | 8.90 | -6.00 | -7.51 | 249.19 | -20.25 | 123.09 | 0.4114 | 1248.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.37 | 248.68 | -20.76 | 126.10 | 0.4346 | 769.0 | 548.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -12.37 | 248.46 | -20.98 | 131.09 | 0.4659 | -735.0 | -622.5 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -9.12 | 248.63 | -20.81 | 125.57 | 0.4329 | 340.0 | 298.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -8.91 | 248.61 | -20.83 | 125.12 | 0.4312 | 600.0 | 505.7 | |
| 17.65 | -6.00 | 9.62 | -6.00 | -7.59 | 248.66 | -20.78 | 122.58 | 0.4191 | 967.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -11.96 | 248.33 | -21.11 | 130.23 | 0.4634 | -743.0 | -633.4 | |
| 1.36 | -6.00 | 0.74 | -6.00 | -7.12 | 248.58 | -20.86 | 121.53 | 0.4162 | 963.9 | 999999 | |
| 0.45 | -6.00 | 0.25 | -6.00 | -8.29 | 248.32 | -21.12 | 123.55 | 0.4296 | 832.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -9.80 | 248.13 | -21.31 | 126.18 | 0.4455 | -755.0 | -644.9 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -11.94 | 247.96 | -21.48 | 129.71 | 0.4676 | -755.0 | -696.6 | |
| 1.81 | -6.00 | 0.99 | -6.00 | -8.51 | 248.18 | -21.26 | 123.80 | 0.4334 | 655.4 | 999999 | |
| 0.00 | 4.35 | 0.00 | 2.40 | -9.49 | 248.05 | -21.39 | 125.50 | 0.4437 | -761.0 | -645.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.81 | 247.84 | -21.60 | 129.34 | 0.4678 | -790.0 | -591.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -12.11 | 247.75 | -21.69 | 129.71 | 0.4717 | -809.0 | -612.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -9.41 | 247.69 | -21.75 | 124.90 | 0.4476 | -878.0 | -642.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -11.54 | 247.39 | -22.05 | 128.31 | 0.4706 | -818.0 | -677.8 | |
| 1.45 | -6.00 | 0.80 | -6.00 | -8.44 | 247.52 | -21.92 | 122.86 | 0.4414 | 649.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -12.80 | 247.14 | -22.29 | 130.08 | 0.4855 | -537.0 | -447.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -12.39 | 247.08 | -22.36 | 129.33 | 0.4823 | -694.0 | -543.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -13.45 | 246.84 | -22.60 | 130.75 | 0.4952 | -600.0 | -520.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -13.13 | 246.88 | -22.56 | 130.28 | 0.4918 | -586.0 | -502.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.79 | 246.87 | -22.57 | 128.07 | 0.4792 | -821.0 | -651.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -12.11 | 246.67 | -22.77 | 128.37 | 0.4846 | -615.0 | -504.7 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -10.99 | 246.23 | -23.21 | 125.94 | 0.4798 | -832.0 | -693.5 | |
| 0.00 | 3.80 | 0.00 | 2.15 | -11.24 | 246.17 | -23.27 | 126.31 | 0.4828 | -783.0 | -595.5 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -11.10 | 245.85 | -23.59 | 125.69 | 0.4855 | -713.0 | -533.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -7.43 | 245.54 | -23.90 | 118.70 | 0.4598 | 800.0 | 635.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -7.05 | 245.53 | -23.91 | 117.96 | 0.4572 | 785.0 | 630.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -11.45 | 244.28 | -25.16 | 124.54 | 0.5079 | -895.0 | -758.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.57 | 244.35 | -25.09 | 119.63 | 0.4843 | -706.0 | -622.2 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -6.17 | 242.80 | -26.64 | 113.79 | 0.4891 | -867.0 | -613.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.52 | 242.64 | -26.80 | 114.31 | 0.4935 | -750.0 | -569.6 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -9.72 | 239.95 | -29.49 | 117.67 | 0.5500 | -781.0 | -614.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -6.16 | 239.81 | -29.63 | 111.52 | 0.5304 | -695.0 | -585.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -6.51 | 239.72 | -29.72 | 112.06 | 0.5336 | -592.0 | -494.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
