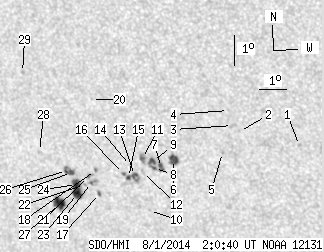

SDO HMI 2014-08-01 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.34 | 103.12 | 30.14 | 66.36 | -18.72 | 237.83 | -31.61 | 128.97 | 0.6399 | -149.3 | 43.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.86 | -17.45 | 244.76 | -24.68 | 134.08 | 0.5566 | 756.0 | 571.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -17.08 | 242.70 | -26.74 | 131.33 | 0.5750 | 633.0 | 486.7 | |
| 0.00 | 3.26 | 0.00 | 1.97 | -16.90 | 242.47 | -26.97 | 130.84 | 0.5757 | 613.0 | 457.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -16.41 | 242.41 | -27.03 | 130.10 | 0.5721 | 647.0 | 542.2 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -17.81 | 241.97 | -27.47 | 131.56 | 0.5892 | 755.0 | 541.4 | |
| 5.88 | 8.51 | 3.68 | 5.32 | -18.14 | 240.12 | -29.32 | 130.20 | 0.6114 | 899.8 | 627.1 | |
| 2.53 | 13.76 | 1.60 | 8.67 | -18.43 | 239.63 | -29.81 | 130.11 | 0.6190 | 836.5 | 612.9 | |
| 0.91 | -7.00 | 0.57 | -7.00 | -18.47 | 239.36 | -30.08 | 129.93 | 0.6222 | 610.5 | 999999 | |
| 2.63 | -7.00 | 1.66 | -7.00 | -18.24 | 239.33 | -30.11 | 129.60 | 0.6207 | 878.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -19.90 | 238.88 | -30.56 | 131.32 | 0.6389 | 535.0 | 313.6 | |
| 1.45 | 5.43 | 0.92 | 3.43 | -18.16 | 238.97 | -30.47 | 129.18 | 0.6238 | 633.4 | 569.9 | |
| 0.00 | 1.99 | 0.00 | 1.27 | -18.63 | 238.88 | -30.56 | 129.70 | 0.6285 | 452.0 | 314.7 | |
| 2.17 | 11.77 | 1.39 | 7.52 | -18.75 | 238.56 | -30.88 | 129.57 | 0.6328 | 710.3 | 469.3 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -18.42 | 238.47 | -30.97 | 129.07 | 0.6311 | 465.0 | 373.4 | |
| 1.54 | -13.00 | 0.99 | -13.00 | -18.83 | 238.31 | -31.13 | 129.46 | 0.6360 | 538.2 | 999999 | |
| 0.45 | -13.00 | 0.29 | -13.00 | -18.70 | 238.15 | -31.29 | 129.16 | 0.6367 | 590.2 | 999999 | |
| 0.72 | 2.44 | 0.47 | 1.60 | -19.43 | 237.08 | -32.36 | 129.17 | 0.6533 | -762.8 | -653.7 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -18.66 | 237.10 | -32.34 | 128.21 | 0.6473 | -962.0 | -796.7 | |
| 0.54 | 6.25 | 0.35 | 4.07 | -19.08 | 236.86 | -32.58 | 128.54 | 0.6530 | -894.0 | -736.7 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -16.30 | 237.42 | -32.02 | 125.37 | 0.6263 | -618.0 | -487.1 | |
| 0.45 | -19.00 | 0.30 | -19.00 | -18.88 | 236.78 | -32.66 | 128.23 | 0.6522 | -925.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -19.16 | 236.57 | -32.87 | 128.41 | 0.6565 | -670.0 | -544.8 | |
| 7.06 | 17.56 | 4.66 | 11.57 | -19.48 | 236.22 | -33.22 | 128.53 | 0.6624 | -787.3 | -510.2 | |
| 6.52 | -23.00 | 4.29 | -23.00 | -19.18 | 236.26 | -33.18 | 128.18 | 0.6599 | -875.1 | 999999 | |
| 2.26 | 7.79 | 1.49 | 5.11 | -18.78 | 236.15 | -33.29 | 127.59 | 0.6581 | -861.0 | -635.9 | |
| 1.81 | -25.00 | 1.19 | -25.00 | -18.73 | 235.97 | -33.47 | 127.38 | 0.6595 | -628.2 | 999999 | |
| 9.42 | 12.22 | 6.29 | 8.17 | -19.86 | 235.43 | -34.01 | 128.38 | 0.6733 | -823.9 | -556.4 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -18.15 | 235.06 | -34.38 | 125.93 | 0.6650 | -115.0 | -233.8 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -15.56 | 234.95 | -34.49 | 122.45 | 0.6488 | -682.0 | -504.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
