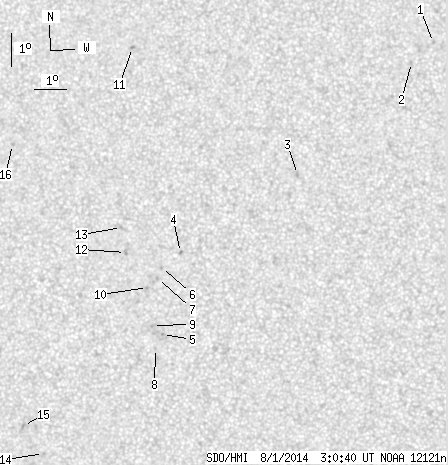

SDO HMI 2014-08-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.10 | 0.00 | 11.17 | 10.07 | 259.79 | -9.10 | 61.98 | 0.1932 | 556.8 | 427.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.78 | 16.31 | 267.99 | -0.90 | 4.70 | 0.1841 | -932.0 | -654.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 15.69 | 267.30 | -1.59 | 8.83 | 0.1749 | -792.0 | -665.2 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 12.23 | 263.77 | -5.13 | 37.78 | 0.1432 | -849.0 | -678.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.81 | 260.17 | -8.73 | 64.50 | 0.1664 | 885.0 | 704.3 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.30 | 259.66 | -9.23 | 80.10 | 0.1622 | 1066.0 | 898.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 9.34 | 259.58 | -9.31 | 68.35 | 0.1725 | 873.0 | 724.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.01 | 259.47 | -9.42 | 70.42 | 0.1724 | 848.0 | 726.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 6.87 | 259.45 | -9.44 | 82.88 | 0.1648 | 710.0 | 539.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.57 | 259.34 | -9.55 | 78.80 | 0.1683 | 802.0 | 623.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.73 | 259.16 | -9.73 | 72.48 | 0.1759 | 801.0 | 670.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 16.07 | 258.41 | -10.48 | 44.14 | 0.2522 | 1093.0 | 913.4 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 9.78 | 258.44 | -10.45 | 68.24 | 0.1933 | 1011.0 | 767.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 10.54 | 258.29 | -10.60 | 64.92 | 0.2005 | 825.0 | 666.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 3.62 | 256.02 | -12.87 | 99.03 | 0.2262 | 799.0 | 601.5 | |
| 0.00 | 2.35 | 0.00 | 1.20 | 4.46 | 255.38 | -13.51 | 95.02 | 0.2349 | 892.0 | 694.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.01 | 254.71 | -14.18 | 61.65 | 0.2724 | 876.0 | 737.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
