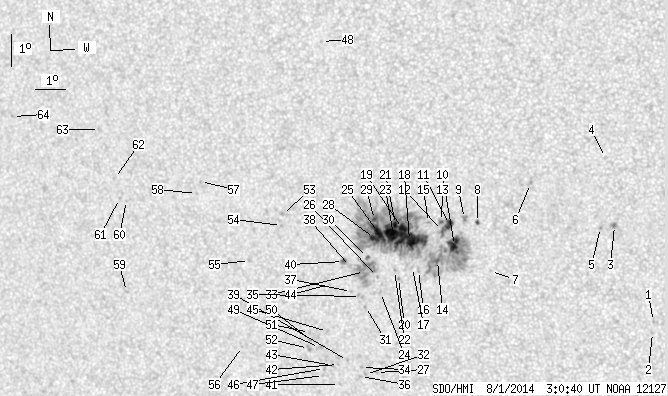

SDO HMI 2014-08-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.24 | 532.02 | 49.29 | 288.34 | -7.83 | 249.33 | -19.56 | 124.82 | 0.4054 | 480.6 | 341.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | -10.06 | 257.40 | -11.49 | 144.12 | 0.3361 | 791.0 | 619.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.41 | 257.36 | -11.53 | 144.62 | 0.3412 | 678.0 | 529.6 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -7.07 | 256.27 | -12.62 | 135.44 | 0.3103 | 1078.0 | 833.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -4.96 | 256.04 | -12.85 | 129.72 | 0.2892 | 837.0 | 608.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.14 | 255.83 | -13.06 | 134.61 | 0.3163 | 891.0 | 710.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -5.83 | 253.66 | -15.23 | 127.12 | 0.3292 | 971.0 | 775.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -8.61 | 252.28 | -16.61 | 130.86 | 0.3753 | -641.0 | -447.3 | |
| 0.81 | 1.99 | 0.43 | 1.06 | -7.09 | 251.93 | -16.96 | 127.04 | 0.3643 | -597.1 | -516.4 | |
| 0.00 | 3.62 | 0.00 | 1.93 | -6.98 | 251.51 | -17.38 | 126.12 | 0.3686 | 1141.0 | 832.0 | |
| 12.31 | 423.02 | 6.60 | 228.40 | -7.83 | 251.16 | -17.74 | 127.39 | 0.3815 | 1138.3 | 440.9 | |
| 5.25 | -10.00 | 2.81 | -10.00 | -7.18 | 251.02 | -17.87 | 125.80 | 0.3769 | 1144.3 | 999999 | |
| 2.17 | -10.00 | 1.16 | -10.00 | -7.37 | 250.79 | -18.10 | 125.86 | 0.3818 | 986.8 | 999999 | |
| 0.54 | -10.00 | 0.29 | -10.00 | -7.09 | 250.77 | -18.12 | 125.22 | 0.3794 | 1045.3 | 999999 | |
| 1.45 | -10.00 | 0.78 | -10.00 | -8.32 | 250.58 | -18.31 | 127.52 | 0.3935 | 476.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -7.14 | 250.35 | -18.54 | 124.69 | 0.3854 | 923.0 | 722.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -8.65 | 249.95 | -18.94 | 127.24 | 0.4048 | 485.0 | 392.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -8.56 | 249.76 | -19.13 | 126.79 | 0.4064 | -181.0 | -109.9 | |
| 22.00 | -10.00 | 11.88 | -10.00 | -7.72 | 249.70 | -19.19 | 124.99 | 0.3992 | 1242.1 | 999999 | |
| 5.52 | -10.00 | 2.98 | -10.00 | -7.35 | 249.49 | -19.40 | 123.93 | 0.3987 | 1389.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.93 | 249.28 | -19.61 | 126.82 | 0.4159 | 656.0 | 474.1 | |
| 2.72 | -10.00 | 1.47 | -10.00 | -7.23 | 249.27 | -19.62 | 123.38 | 0.4006 | 1085.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.68 | 249.16 | -19.73 | 126.17 | 0.4151 | 695.0 | 516.9 | |
| 17.47 | -10.00 | 9.46 | -10.00 | -7.55 | 249.19 | -19.70 | 123.93 | 0.4045 | 1271.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -9.39 | 248.66 | -20.23 | 126.84 | 0.4281 | 668.0 | 495.8 | |
| 12.31 | -10.00 | 6.69 | -10.00 | -7.50 | 248.70 | -20.19 | 123.18 | 0.4105 | 993.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.89 | 248.59 | -20.30 | 125.79 | 0.4243 | 617.0 | 503.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -11.94 | 248.35 | -20.54 | 130.97 | 0.4566 | -779.0 | -648.2 | |
| 4.80 | -10.00 | 2.61 | -10.00 | -7.70 | 248.56 | -20.33 | 123.39 | 0.4141 | 920.0 | 999999 | |
| 1.90 | -10.00 | 1.03 | -10.00 | -7.10 | 248.59 | -20.30 | 122.20 | 0.4086 | 938.8 | 999999 | |
| 0.63 | 1.81 | 0.35 | 0.99 | -8.30 | 248.30 | -20.59 | 124.26 | 0.4228 | 799.1 | 662.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.85 | 248.14 | -20.75 | 127.00 | 0.4389 | -783.0 | -616.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -12.01 | 247.97 | -20.92 | 130.59 | 0.4617 | -829.0 | -686.9 | |
| 0.00 | 36.49 | 0.00 | 19.99 | -8.74 | 248.17 | -20.72 | 124.96 | 0.4284 | -37.0 | 268.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -11.79 | 247.86 | -21.03 | 130.06 | 0.4609 | -846.0 | -700.0 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -9.54 | 247.99 | -20.90 | 126.23 | 0.4379 | -607.0 | -727.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -12.08 | 247.80 | -21.09 | 130.47 | 0.4644 | -804.0 | -685.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.39 | 247.70 | -21.19 | 125.58 | 0.4402 | -855.0 | -621.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.60 | 247.72 | -21.17 | 124.10 | 0.4330 | 336.0 | 393.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.59 | 247.41 | -21.48 | 129.12 | 0.4643 | -873.0 | -669.0 | |
| 1.36 | 3.35 | 0.75 | 1.84 | -8.45 | 247.50 | -21.39 | 123.54 | 0.4346 | 713.1 | 487.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -12.37 | 247.07 | -21.82 | 129.99 | 0.4757 | -665.0 | -520.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -11.73 | 247.10 | -21.79 | 128.95 | 0.4693 | -693.0 | -609.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.77 | 246.89 | -22.00 | 128.76 | 0.4722 | -842.0 | -690.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.20 | 246.99 | -21.90 | 124.32 | 0.4477 | -702.0 | -445.0 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -10.69 | 246.81 | -22.08 | 126.80 | 0.4631 | -731.0 | -501.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.87 | 246.61 | -22.28 | 128.58 | 0.4765 | -603.0 | -495.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.10 | 246.56 | -22.33 | 128.89 | 0.4793 | -504.0 | -404.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -1.65 | 247.02 | -21.87 | 108.18 | 0.3935 | 695.0 | 574.6 | |
| 0.00 | 2.90 | 0.00 | 1.63 | -11.21 | 246.50 | -22.39 | 127.32 | 0.4717 | -835.0 | -672.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.00 | 246.22 | -22.67 | 126.61 | 0.4733 | -839.0 | -675.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.74 | 246.21 | -22.69 | 126.15 | 0.4712 | -698.0 | -564.2 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -11.25 | 246.13 | -22.76 | 126.94 | 0.4767 | -688.0 | -638.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.06 | 245.55 | -23.34 | 118.57 | 0.4495 | 775.0 | 594.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.40 | 245.50 | -23.39 | 119.19 | 0.4528 | 739.0 | 599.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -8.55 | 244.35 | -24.54 | 120.15 | 0.4769 | -696.0 | -555.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.28 | 243.88 | -25.01 | 124.44 | 0.5046 | -500.0 | -453.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.15 | 242.83 | -26.06 | 114.23 | 0.4809 | -746.0 | -659.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -6.53 | 242.68 | -26.21 | 114.82 | 0.4855 | -728.0 | -587.9 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.72 | 240.00 | -28.89 | 118.17 | 0.5422 | -733.0 | -555.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -6.86 | 240.24 | -28.65 | 113.46 | 0.5210 | -556.0 | -552.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -6.81 | 239.99 | -28.90 | 113.19 | 0.5240 | -689.0 | -588.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -6.19 | 239.86 | -29.03 | 112.00 | 0.5224 | -629.0 | -542.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -4.69 | 239.42 | -29.48 | 109.00 | 0.5207 | -429.0 | -377.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -4.45 | 236.32 | -32.57 | 106.79 | 0.5627 | -444.0 | -368.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
