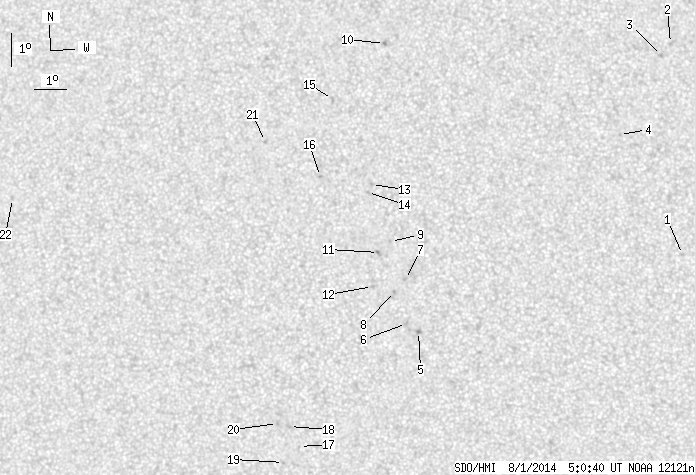

SDO HMI 2014-08-01 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.71 | 0.00 | 17.56 | 10.11 | 258.68 | -9.11 | 120.76 | 0.1948 | 564.5 | 469.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.69 | 267.90 | 0.10 | 358.49 | 0.0683 | -778.0 | -487.1 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 16.16 | 267.53 | -0.27 | 1.42 | 0.1809 | -869.0 | -620.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 15.79 | 267.24 | -0.55 | 3.04 | 0.1747 | -962.0 | -724.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.36 | 265.93 | -1.86 | 13.48 | 0.1361 | -786.0 | -632.1 | |
| 0.00 | 2.72 | 0.00 | 1.36 | 7.30 | 259.77 | -8.02 | 78.87 | 0.1417 | 1067.0 | 830.3 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 7.54 | 259.40 | -8.40 | 77.73 | 0.1489 | 955.0 | 743.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.87 | 259.34 | -8.46 | 69.31 | 0.1560 | 924.0 | 795.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.50 | 259.00 | -8.79 | 72.21 | 0.1595 | 981.0 | 867.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.03 | 258.84 | -8.95 | 63.91 | 0.1714 | 850.0 | 664.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 16.10 | 258.43 | -9.36 | 40.94 | 0.2396 | 1140.0 | 922.2 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 9.69 | 258.48 | -9.32 | 66.56 | 0.1748 | 1016.0 | 839.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.65 | 258.31 | -9.48 | 72.55 | 0.1715 | 863.0 | 632.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.76 | 258.19 | -9.60 | 57.18 | 0.1952 | 761.0 | 513.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.51 | 258.07 | -9.72 | 58.57 | 0.1948 | 806.0 | 602.9 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 14.34 | 256.85 | -10.95 | 50.71 | 0.2387 | 814.0 | 681.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.98 | 256.57 | -11.22 | 60.07 | 0.2207 | 734.0 | 590.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 3.74 | 256.13 | -11.66 | 99.50 | 0.2054 | 683.0 | 455.0 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 4.34 | 255.81 | -11.98 | 96.37 | 0.2092 | 949.0 | 574.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 3.24 | 255.64 | -12.15 | 101.36 | 0.2154 | 715.0 | 575.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.43 | 255.44 | -12.36 | 95.76 | 0.2154 | 910.0 | 754.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 13.01 | 254.77 | -13.02 | 59.71 | 0.2554 | 947.0 | 693.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 11.04 | 246.65 | -21.14 | 74.50 | 0.3690 | 700.0 | 501.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
