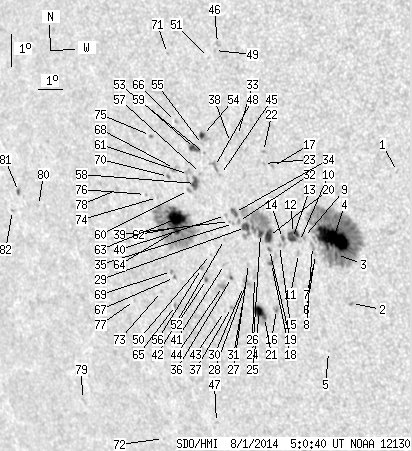

SDO HMI 2014-08-01 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.63 | 580.03 | 75.40 | 381.76 | -7.47 | 228.83 | -38.97 | 108.46 | 0.6589 | 565.8 | 340.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.93 | -5.30 | 234.37 | -33.43 | 107.77 | 0.5781 | 699.0 | 534.3 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -9.54 | 232.26 | -35.53 | 113.22 | 0.6259 | 720.0 | 513.2 | |
| 1.09 | 223.96 | 0.69 | 141.21 | -8.03 | 231.86 | -35.93 | 110.72 | 0.6235 | 393.2 | 461.4 | |
| 41.84 | -3.00 | 26.42 | -3.00 | -7.53 | 231.80 | -35.99 | 109.94 | 0.6220 | 1151.4 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -11.12 | 231.16 | -36.63 | 114.87 | 0.6476 | 392.0 | 222.0 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -8.08 | 231.05 | -36.74 | 110.37 | 0.6340 | 295.0 | 267.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -8.30 | 230.99 | -36.80 | 110.66 | 0.6358 | 458.0 | 285.2 | |
| 0.00 | 2.99 | 0.00 | 1.91 | -7.83 | 230.97 | -36.83 | 109.95 | 0.6340 | 599.0 | 495.0 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -7.57 | 230.65 | -37.15 | 109.40 | 0.6369 | 924.0 | 674.7 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -7.71 | 230.48 | -37.32 | 109.52 | 0.6396 | 554.0 | 533.5 | |
| 0.00 | 1.99 | 0.00 | 1.28 | -8.09 | 230.40 | -37.40 | 110.04 | 0.6423 | 347.0 | 219.0 | |
| 4.35 | 11.59 | 2.80 | 7.47 | -7.47 | 230.27 | -37.53 | 109.06 | 0.6412 | 816.0 | 631.0 | |
| 3.08 | -12.00 | 1.99 | -12.00 | -7.63 | 230.21 | -37.58 | 109.27 | 0.6426 | 754.6 | 999999 | |
| 0.54 | 4.26 | 0.35 | 2.76 | -7.65 | 229.82 | -37.97 | 109.11 | 0.6477 | 823.0 | 370.3 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -7.88 | 229.68 | -38.11 | 109.38 | 0.6504 | 657.0 | 520.7 | |
| 0.00 | 3.53 | 0.00 | 2.33 | -9.91 | 229.30 | -38.49 | 112.11 | 0.6640 | 780.0 | 461.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -5.42 | 229.64 | -38.16 | 105.71 | 0.6412 | 723.0 | 624.4 | |
| 1.00 | 4.71 | 0.65 | 3.08 | -8.47 | 229.30 | -38.50 | 110.04 | 0.6577 | 600.2 | 283.2 | |
| 0.54 | 1.72 | 0.36 | 1.13 | -8.03 | 229.27 | -38.52 | 109.40 | 0.6561 | 693.3 | 563.7 | |
| 6.70 | 64.57 | 4.38 | 42.39 | -7.62 | 229.28 | -38.52 | 108.81 | 0.6544 | 938.0 | 501.0 | |
| 1.54 | 16.48 | 1.03 | 11.01 | -10.20 | 228.79 | -39.01 | 112.24 | 0.6716 | 630.9 | 271.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -4.98 | 229.32 | -38.48 | 104.91 | 0.6437 | 710.0 | 574.2 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -5.35 | 229.29 | -38.50 | 105.46 | 0.6454 | 676.0 | 460.6 | |
| 2.35 | -20.00 | 1.54 | -20.00 | -7.55 | 228.97 | -38.83 | 108.56 | 0.6579 | 882.3 | 999999 | |
| 8.15 | -21.00 | 5.44 | -21.00 | -10.02 | 228.61 | -39.18 | 111.90 | 0.6728 | 815.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -8.95 | 228.56 | -39.23 | 110.38 | 0.6688 | -462.0 | -363.1 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -8.53 | 228.38 | -39.42 | 109.68 | 0.6692 | 347.0 | 388.6 | |
| 0.00 | 3.98 | 0.00 | 2.66 | -9.13 | 228.22 | -39.58 | 110.46 | 0.6737 | 785.0 | 656.0 | |
| 4.08 | -20.00 | 2.69 | -20.00 | -7.40 | 228.39 | -39.40 | 108.08 | 0.6645 | 775.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -9.27 | 228.08 | -39.72 | 110.58 | 0.6759 | 454.0 | 388.9 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -9.65 | 228.02 | -39.77 | 111.09 | 0.6782 | 467.0 | 421.1 | |
| 0.00 | 1.81 | 0.00 | 1.20 | -7.23 | 228.13 | -39.67 | 107.72 | 0.6670 | 731.0 | 608.8 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -4.55 | 228.32 | -39.47 | 103.88 | 0.6550 | -509.0 | -506.9 | |
| 2.08 | 4.26 | 1.38 | 2.83 | -6.96 | 228.00 | -39.80 | 107.27 | 0.6676 | 702.6 | 569.9 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -7.31 | 227.92 | -39.87 | 107.73 | 0.6699 | 413.0 | 418.8 | |
| 0.63 | 2.17 | 0.43 | 1.46 | -9.01 | 227.63 | -40.17 | 110.02 | 0.6803 | 497.1 | 366.6 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -9.97 | 227.49 | -40.30 | 111.27 | 0.6859 | 665.0 | 576.5 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -4.78 | 228.03 | -39.77 | 104.11 | 0.6595 | -391.0 | -429.2 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -7.25 | 227.77 | -40.03 | 107.59 | 0.6716 | 495.0 | 444.7 | |
| 0.00 | 1.81 | 0.00 | 1.21 | -7.08 | 227.62 | -40.17 | 107.28 | 0.6727 | 542.0 | 426.5 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -8.62 | 227.40 | -40.40 | 109.36 | 0.6814 | 593.0 | 569.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -7.83 | 227.50 | -40.30 | 108.30 | 0.6771 | 643.0 | 516.0 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -10.11 | 227.18 | -40.61 | 111.32 | 0.6902 | 633.0 | 393.9 | |
| 0.00 | 4.44 | 0.00 | 3.01 | -9.32 | 227.22 | -40.57 | 110.25 | 0.6864 | 187.0 | 157.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -5.81 | 227.55 | -40.25 | 105.42 | 0.6691 | 645.0 | 537.6 | |
| 0.00 | 2.17 | 0.00 | 1.42 | -1.76 | 227.66 | -40.13 | 99.49 | 0.6555 | -662.0 | -650.1 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -13.72 | 226.18 | -41.62 | 115.60 | 0.7178 | -599.0 | -493.5 | |
| 0.00 | 4.71 | 0.00 | 3.14 | -5.57 | 227.33 | -40.47 | 105.00 | 0.6710 | 729.0 | 550.9 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -1.98 | 227.54 | -40.26 | 99.78 | 0.6577 | -695.0 | -577.2 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -8.34 | 226.87 | -40.93 | 108.73 | 0.6867 | 430.0 | 294.9 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -2.21 | 227.29 | -40.51 | 100.05 | 0.6615 | -564.0 | -487.9 | |
| 0.72 | 1.99 | 0.50 | 1.37 | -9.15 | 226.59 | -41.20 | 109.72 | 0.6932 | -579.8 | -429.4 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -5.20 | 226.95 | -40.84 | 104.31 | 0.6744 | 437.0 | 357.7 | |
| 2.08 | 6.25 | 1.39 | 4.17 | -4.64 | 226.91 | -40.88 | 103.49 | 0.6731 | -859.8 | -597.5 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -4.92 | 226.89 | -40.90 | 103.89 | 0.6743 | -189.0 | -158.8 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -8.81 | 226.43 | -41.36 | 109.19 | 0.6937 | -736.0 | -655.1 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -5.83 | 226.74 | -41.06 | 105.14 | 0.6792 | 656.0 | 613.4 | |
| 4.62 | 7.88 | 3.12 | 5.33 | -6.16 | 226.50 | -41.29 | 105.51 | 0.6832 | 845.4 | 664.6 | |
| 3.89 | 7.61 | 2.62 | 5.12 | -5.07 | 226.56 | -41.24 | 103.98 | 0.6789 | 489.7 | 79.8 | |
| 0.00 | 1.99 | 0.00 | 1.36 | -6.39 | 226.19 | -41.60 | 105.73 | 0.6878 | 545.0 | 471.0 | |
| 0.00 | 6.16 | 0.00 | 4.18 | -5.89 | 226.24 | -41.55 | 105.04 | 0.6855 | 445.0 | 454.9 | |
| 0.27 | 124.61 | 0.19 | 86.21 | -7.54 | 225.81 | -41.98 | 107.17 | 0.6963 | 940.7 | 222.6 | |
| 19.83 | -62.00 | 13.68 | -62.00 | -7.31 | 225.59 | -42.20 | 106.76 | 0.6981 | 967.8 | 999999 | |
| 3.62 | -62.00 | 2.51 | -62.00 | -7.68 | 225.55 | -42.25 | 107.26 | 0.7000 | 704.7 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.47 | -10.06 | 225.16 | -42.64 | 110.32 | 0.7135 | -652.0 | -577.4 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -4.28 | 225.84 | -41.96 | 102.61 | 0.6855 | -893.0 | -742.3 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -9.18 | 225.26 | -42.54 | 109.17 | 0.7089 | -533.0 | -428.4 | |
| 0.00 | 4.26 | 0.00 | 2.91 | -5.75 | 225.68 | -42.12 | 104.62 | 0.6919 | 538.0 | 484.1 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -8.99 | 225.16 | -42.64 | 108.89 | 0.7094 | -270.0 | -191.7 | |
| 0.00 | 1.63 | 0.00 | 1.12 | -6.01 | 225.40 | -42.39 | 104.89 | 0.6961 | 653.0 | 491.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -2.20 | 225.62 | -42.18 | 99.56 | 0.6826 | -466.0 | -386.1 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -14.40 | 223.74 | -44.05 | 115.25 | 0.7469 | -577.0 | -504.4 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -9.66 | 224.63 | -43.16 | 109.55 | 0.7179 | -404.0 | -343.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -6.70 | 224.87 | -42.92 | 105.65 | 0.7047 | 414.0 | 355.1 | |
| 0.36 | 1.27 | 0.25 | 0.88 | -4.79 | 224.76 | -43.03 | 102.96 | 0.7001 | -685.8 | -608.5 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -6.64 | 224.37 | -43.42 | 105.39 | 0.7105 | 458.0 | 291.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -10.03 | 223.41 | -44.38 | 109.53 | 0.7331 | -474.0 | -416.2 | |
| 0.00 | 1.90 | 0.00 | 1.36 | -6.57 | 223.18 | -44.61 | 104.87 | 0.7242 | 23.0 | 58.8 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -13.40 | 220.34 | -47.45 | 112.51 | 0.7780 | -164.0 | -187.0 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -7.34 | 219.55 | -48.24 | 104.67 | 0.7671 | -111.0 | -52.4 | |
| 1.27 | 2.63 | 0.99 | 2.05 | -6.97 | 218.67 | -49.12 | 103.94 | 0.7756 | -553.0 | -390.8 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -7.59 | 218.29 | -49.50 | 104.60 | 0.7812 | -493.0 | -432.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
