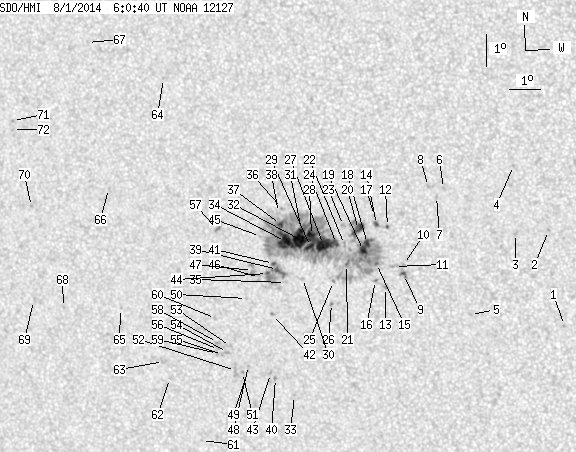

SDO HMI 2014-08-01 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.70 | 529.69 | 57.03 | 284.05 | -7.84 | 249.37 | -17.88 | 127.32 | 0.3838 | 532.8 | 316.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.62 | -10.02 | 257.42 | -9.82 | 148.22 | 0.3203 | 699.0 | 601.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.05 | 257.01 | -10.24 | 141.35 | 0.2838 | 924.0 | 832.0 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -7.16 | 255.97 | -11.27 | 138.89 | 0.2963 | 792.0 | 665.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.05 | 255.96 | -11.29 | 133.67 | 0.2707 | 902.0 | 672.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.73 | 254.47 | -12.77 | 140.59 | 0.3448 | 722.0 | 512.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.81 | 253.75 | -13.50 | 130.50 | 0.3067 | 982.0 | 794.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -6.06 | 253.52 | -13.72 | 130.65 | 0.3123 | 771.0 | 571.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.75 | 253.28 | -13.97 | 129.39 | 0.3121 | 807.0 | 657.2 | |
| 1.45 | 4.71 | 0.77 | 2.49 | -8.52 | 252.40 | -14.85 | 133.90 | 0.3533 | -743.4 | -327.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.21 | 252.41 | -14.84 | 133.27 | 0.3496 | -629.0 | -379.0 | |
| 0.00 | 3.98 | 0.00 | 2.11 | -8.28 | 252.12 | -15.13 | 132.86 | 0.3539 | 181.0 | 148.5 | |
| 0.45 | 1.45 | 0.24 | 0.76 | -7.03 | 251.94 | -15.30 | 129.82 | 0.3426 | -630.0 | -462.5 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -8.95 | 251.80 | -15.44 | 133.64 | 0.3650 | -334.0 | -280.1 | |
| 1.27 | 2.90 | 0.67 | 1.53 | -6.98 | 251.60 | -15.65 | 129.07 | 0.3464 | 1025.6 | 697.5 | |
| 0.54 | 408.27 | 0.29 | 218.22 | -8.20 | 251.55 | -15.70 | 131.64 | 0.3599 | 757.5 | 420.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -8.74 | 251.49 | -15.75 | 132.64 | 0.3664 | 880.0 | 704.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -6.70 | 251.54 | -15.71 | 128.34 | 0.3442 | 801.0 | 651.5 | |
| 4.08 | -15.00 | 2.16 | -15.00 | -7.58 | 251.29 | -15.96 | 129.84 | 0.3566 | 1240.7 | 999999 | |
| 5.80 | -15.00 | 3.08 | -15.00 | -7.80 | 251.15 | -16.10 | 130.08 | 0.3606 | 1169.5 | 999999 | |
| 7.52 | -15.00 | 3.98 | -15.00 | -7.15 | 251.01 | -16.23 | 128.42 | 0.3556 | 1165.1 | 999999 | |
| 0.45 | -15.00 | 0.24 | -15.00 | -8.26 | 250.58 | -16.66 | 130.06 | 0.3723 | 660.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -7.63 | 250.55 | -16.70 | 128.68 | 0.3664 | 658.0 | 541.6 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -7.04 | 250.54 | -16.71 | 127.37 | 0.3605 | 779.0 | 682.6 | |
| 1.90 | -15.00 | 1.01 | -15.00 | -7.61 | 250.29 | -16.96 | 128.20 | 0.3694 | 1064.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.81 | 250.14 | -17.11 | 130.43 | 0.3835 | 658.0 | 530.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.50 | 250.04 | -17.21 | 131.63 | 0.3920 | -866.0 | -749.5 | |
| 20.74 | -15.00 | 11.07 | -15.00 | -7.65 | 249.87 | -17.38 | 127.61 | 0.3752 | 1275.3 | 999999 | |
| 9.42 | -15.00 | 5.03 | -15.00 | -7.38 | 249.50 | -17.75 | 126.43 | 0.3774 | 1345.5 | 999999 | |
| 5.98 | -15.00 | 3.20 | -15.00 | -7.73 | 249.45 | -17.80 | 127.10 | 0.3813 | 1124.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -8.74 | 249.14 | -18.11 | 128.69 | 0.3952 | 815.0 | 610.9 | |
| 3.53 | -15.00 | 1.89 | -15.00 | -7.24 | 249.18 | -18.07 | 125.63 | 0.3801 | 1042.6 | 999999 | |
| 17.84 | -15.00 | 9.57 | -15.00 | -7.52 | 249.10 | -18.14 | 126.12 | 0.3838 | 1221.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -12.47 | 248.64 | -18.60 | 134.69 | 0.4400 | -783.0 | -647.3 | |
| 19.38 | -15.00 | 10.42 | -15.00 | -7.60 | 248.65 | -18.60 | 125.60 | 0.3905 | 1007.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -8.88 | 248.58 | -18.66 | 128.12 | 0.4036 | 600.0 | 390.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -6.57 | 248.59 | -18.65 | 123.32 | 0.3818 | 760.0 | 642.1 | |
| 2.99 | -15.00 | 1.60 | -15.00 | -7.07 | 248.51 | -18.74 | 124.28 | 0.3875 | 908.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.70 | 248.46 | -18.79 | 123.41 | 0.3848 | 691.0 | 567.7 | |
| 1.54 | 28.44 | 0.83 | 15.40 | -8.48 | 248.34 | -18.90 | 126.97 | 0.4028 | 978.0 | 381.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -11.94 | 248.06 | -19.19 | 132.93 | 0.4410 | -946.0 | -754.3 | |
| 1.00 | -39.00 | 0.54 | -39.00 | -8.30 | 248.22 | -19.02 | 126.43 | 0.4026 | 852.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -9.91 | 248.10 | -19.15 | 129.37 | 0.4197 | -761.0 | -650.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -11.79 | 247.90 | -19.34 | 132.44 | 0.4412 | -846.0 | -695.5 | |
| 0.82 | -39.00 | 0.44 | -39.00 | -8.62 | 248.01 | -19.24 | 126.76 | 0.4083 | 571.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.47 | 247.84 | -19.41 | 124.18 | 0.3999 | -27.0 | -4.8 | |
| 0.00 | 2.54 | 0.00 | 1.38 | -8.76 | 247.74 | -19.51 | 126.64 | 0.4130 | 35.0 | -12.3 | |
| 0.00 | 5.52 | 0.00 | 3.00 | -8.54 | 247.52 | -19.72 | 125.92 | 0.4138 | 638.0 | 518.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -11.56 | 247.19 | -20.05 | 131.02 | 0.4471 | -868.0 | -728.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -11.75 | 247.15 | -20.10 | 131.28 | 0.4496 | -876.0 | -722.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.43 | 247.28 | -19.97 | 127.29 | 0.4253 | -569.0 | -384.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -11.79 | 246.98 | -20.27 | 131.11 | 0.4520 | -844.0 | -703.7 | |
| 0.00 | 6.34 | 0.00 | 3.52 | -11.73 | 246.75 | -20.50 | 130.70 | 0.4541 | -652.0 | -564.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -10.97 | 246.64 | -20.60 | 129.24 | 0.4479 | -815.0 | -527.5 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -11.17 | 246.53 | -20.72 | 129.42 | 0.4511 | -842.0 | -775.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -11.24 | 246.36 | -20.89 | 129.31 | 0.4539 | -690.0 | -604.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -11.08 | 246.24 | -21.01 | 128.88 | 0.4539 | -759.0 | -628.6 | |
| 0.00 | 2.81 | 0.00 | 1.53 | -7.30 | 246.44 | -20.80 | 121.98 | 0.4171 | 912.0 | 740.2 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -10.86 | 246.22 | -21.03 | 128.47 | 0.4519 | -779.0 | -652.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.21 | 246.19 | -21.05 | 129.05 | 0.4556 | -632.0 | -511.8 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -10.10 | 246.21 | -21.04 | 127.09 | 0.4449 | -445.0 | -452.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.03 | 245.40 | -21.84 | 132.61 | 0.4925 | 538.0 | 316.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -12.07 | 244.51 | -22.74 | 128.36 | 0.4839 | -678.0 | -598.0 | |
| 0.00 | 3.17 | 0.00 | 1.79 | -11.54 | 244.36 | -22.89 | 127.28 | 0.4809 | -679.0 | -698.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -2.68 | 244.83 | -22.41 | 110.14 | 0.4074 | 801.0 | 669.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -9.91 | 243.04 | -24.21 | 122.96 | 0.4833 | -725.0 | -536.6 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -6.16 | 242.88 | -24.37 | 115.78 | 0.4574 | -738.0 | -594.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -1.67 | 242.32 | -24.92 | 105.97 | 0.4400 | -591.0 | -477.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -9.96 | 241.09 | -26.16 | 121.04 | 0.5088 | -703.0 | -565.2 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -9.79 | 240.06 | -27.18 | 119.78 | 0.5207 | -575.0 | -441.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -6.83 | 240.22 | -27.03 | 114.72 | 0.4986 | -778.0 | -612.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -4.19 | 239.70 | -27.54 | 109.35 | 0.4908 | -809.0 | -662.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -4.47 | 239.69 | -27.56 | 109.88 | 0.4924 | -657.0 | -531.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
