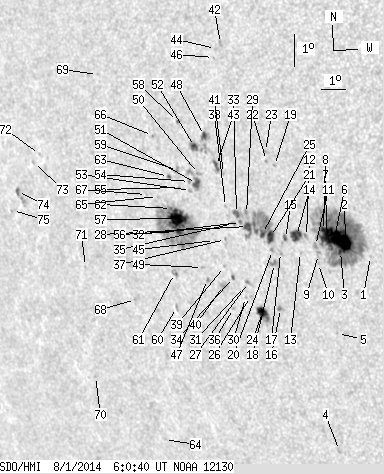

SDO HMI 2014-08-01 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.46 | 570.99 | 77.01 | 373.61 | -7.42 | 228.68 | -38.57 | 108.58 | 0.6537 | 603.9 | 327.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.56 | -8.02 | 233.05 | -34.20 | 111.69 | 0.6012 | 608.0 | 453.1 | |
| 19.02 | 218.26 | 11.88 | 136.59 | -7.63 | 232.15 | -35.09 | 110.58 | 0.6109 | 1323.1 | 458.7 | |
| 2.35 | -2.00 | 1.48 | -2.00 | -7.92 | 231.93 | -35.31 | 110.91 | 0.6151 | 712.2 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.67 | -14.30 | 230.98 | -36.27 | 119.52 | 0.6610 | -80.0 | -184.3 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -10.53 | 231.51 | -35.73 | 114.55 | 0.6335 | 495.0 | 454.1 | |
| 17.21 | -2.00 | 10.79 | -2.00 | -7.50 | 231.75 | -35.50 | 110.15 | 0.6155 | 1130.9 | 999999 | |
| 8.51 | -2.00 | 5.36 | -2.00 | -7.42 | 231.45 | -35.79 | 109.88 | 0.6189 | 919.0 | 999999 | |
| 2.99 | -2.00 | 1.88 | -2.00 | -7.30 | 231.35 | -35.89 | 109.64 | 0.6197 | 821.9 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.72 | -8.07 | 231.08 | -36.16 | 110.66 | 0.6266 | 300.0 | 325.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -8.35 | 231.05 | -36.19 | 111.07 | 0.6284 | 418.0 | 320.2 | |
| 0.00 | 2.90 | 0.00 | 1.84 | -7.79 | 231.00 | -36.25 | 110.20 | 0.6265 | 582.0 | 492.7 | |
| 0.00 | 1.99 | 0.00 | 1.27 | -7.53 | 230.68 | -36.57 | 109.64 | 0.6293 | 797.0 | 654.5 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -8.05 | 230.40 | -36.85 | 110.27 | 0.6353 | 452.0 | 359.6 | |
| 8.24 | 11.05 | 5.27 | 7.06 | -7.52 | 230.30 | -36.95 | 109.43 | 0.6342 | 825.0 | 591.3 | |
| 1.09 | 3.80 | 0.70 | 2.45 | -7.64 | 229.86 | -37.39 | 109.39 | 0.6402 | 749.9 | 541.1 | |
| 0.00 | 3.08 | 0.00 | 2.02 | -9.87 | 229.40 | -37.85 | 112.39 | 0.6561 | 780.0 | 484.9 | |
| 0.00 | 2.45 | 0.00 | 1.58 | -8.10 | 229.62 | -37.63 | 109.94 | 0.6453 | 686.0 | 483.0 | |
| 0.00 | 5.07 | 0.00 | 3.30 | -8.46 | 229.34 | -37.91 | 110.33 | 0.6503 | 745.0 | 343.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -5.39 | 229.64 | -37.61 | 105.89 | 0.6340 | 815.0 | 675.1 | |
| 0.00 | 1.99 | 0.00 | 1.29 | -8.05 | 229.31 | -37.94 | 109.72 | 0.6489 | 621.0 | 547.8 | |
| 6.25 | 56.33 | 4.05 | 36.67 | -7.62 | 229.28 | -37.97 | 109.07 | 0.6474 | 947.8 | 526.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -5.25 | 229.34 | -37.91 | 105.56 | 0.6374 | 666.0 | 548.0 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -4.97 | 229.32 | -37.93 | 105.13 | 0.6366 | 675.0 | 582.2 | |
| 7.34 | 13.58 | 4.86 | 9.00 | -10.04 | 228.66 | -38.59 | 112.24 | 0.6658 | 839.5 | 466.6 | |
| 2.99 | -21.00 | 1.95 | -21.00 | -7.54 | 228.97 | -38.27 | 108.81 | 0.6509 | 879.0 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -9.56 | 228.25 | -38.99 | 111.36 | 0.6685 | 633.0 | 552.2 | |
| 0.00 | 2.08 | 0.00 | 1.38 | -9.12 | 228.23 | -39.01 | 110.73 | 0.6668 | 779.0 | 718.0 | |
| 4.17 | -21.00 | 2.73 | -21.00 | -7.36 | 228.40 | -38.84 | 108.28 | 0.6573 | 804.2 | 999999 | |
| 0.00 | 3.89 | 0.00 | 2.55 | -6.95 | 228.41 | -38.84 | 107.69 | 0.6557 | 396.0 | 403.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -9.61 | 228.05 | -39.20 | 111.32 | 0.6712 | 477.0 | 376.3 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -9.26 | 228.05 | -39.19 | 110.83 | 0.6696 | 395.0 | 359.0 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -7.25 | 228.14 | -39.11 | 108.00 | 0.6602 | 721.0 | 623.6 | |
| 2.08 | 6.25 | 1.37 | 4.11 | -6.98 | 228.01 | -39.24 | 107.55 | 0.6608 | 700.2 | 450.7 | |
| 0.63 | 1.72 | 0.42 | 1.15 | -9.00 | 227.65 | -39.60 | 110.27 | 0.6734 | 440.7 | 394.1 | |
| 0.00 | 2.63 | 0.00 | 1.74 | -7.30 | 227.85 | -39.39 | 107.94 | 0.6639 | 677.0 | 459.9 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -9.99 | 227.51 | -39.74 | 111.58 | 0.6793 | 701.0 | 551.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -7.83 | 227.48 | -39.77 | 108.52 | 0.6707 | 535.0 | 513.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -6.79 | 227.59 | -39.66 | 107.09 | 0.6653 | 414.0 | 319.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -8.68 | 227.33 | -39.92 | 109.67 | 0.6759 | 643.0 | 538.3 | |
| 0.00 | 3.80 | 0.00 | 2.56 | -9.29 | 227.21 | -40.04 | 110.45 | 0.6799 | 191.0 | 126.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -5.76 | 227.61 | -39.64 | 105.60 | 0.6613 | 605.0 | 520.5 | |
| 0.00 | 2.45 | 0.00 | 1.59 | -1.75 | 227.71 | -39.53 | 99.65 | 0.6476 | -754.0 | -641.4 | |
| 2.08 | 13.77 | 1.38 | 9.11 | -5.53 | 227.35 | -39.90 | 105.16 | 0.6638 | 680.8 | 217.8 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -1.91 | 227.51 | -39.74 | 99.84 | 0.6507 | -589.0 | -529.6 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -7.89 | 227.03 | -40.22 | 108.41 | 0.6764 | 571.0 | 490.0 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -2.19 | 227.42 | -39.82 | 100.24 | 0.6526 | -571.0 | -486.2 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -9.14 | 226.58 | -40.67 | 109.95 | 0.6868 | -697.0 | -508.1 | |
| 2.54 | 5.89 | 1.68 | 3.90 | -4.63 | 226.93 | -40.31 | 103.69 | 0.6660 | -866.2 | -595.0 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -8.77 | 226.43 | -40.82 | 109.38 | 0.6871 | -803.0 | -663.8 | |
| 0.00 | 2.45 | 0.00 | 1.64 | -5.83 | 226.60 | -40.65 | 105.30 | 0.6742 | 792.0 | 649.3 | |
| 4.08 | 11.41 | 2.73 | 7.66 | -6.15 | 226.49 | -40.76 | 105.71 | 0.6766 | 884.7 | 590.1 | |
| 3.53 | 7.52 | 2.36 | 5.02 | -5.00 | 226.50 | -40.74 | 104.06 | 0.6726 | 391.3 | -76.2 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -6.38 | 226.22 | -41.03 | 105.94 | 0.6807 | 550.0 | 495.8 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -6.10 | 226.21 | -41.04 | 105.53 | 0.6799 | 518.0 | 405.2 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -6.32 | 225.78 | -41.47 | 105.67 | 0.6859 | 532.0 | 447.5 | |
| 2.45 | 125.98 | 1.68 | 86.38 | -7.70 | 225.58 | -41.67 | 107.53 | 0.6932 | 753.5 | 241.8 | |
| 17.93 | -56.00 | 12.27 | -56.00 | -7.30 | 225.59 | -41.66 | 106.97 | 0.6916 | 969.2 | 999999 | |
| 0.45 | 1.27 | 0.30 | 0.85 | -4.27 | 225.87 | -41.38 | 102.78 | 0.6783 | -765.8 | -648.8 | |
| 0.00 | 2.45 | 0.00 | 1.66 | -5.79 | 225.74 | -41.50 | 104.92 | 0.6846 | 611.0 | 549.1 | |
| 0.00 | 2.17 | 0.00 | 1.52 | -10.12 | 225.15 | -42.10 | 110.63 | 0.7075 | -780.0 | -577.5 | |
| 0.00 | 4.08 | 0.00 | 2.83 | -9.04 | 225.23 | -42.01 | 109.22 | 0.7023 | -481.0 | -320.1 | |
| 0.27 | -56.00 | 0.19 | -56.00 | -7.00 | 225.37 | -41.87 | 106.47 | 0.6931 | 588.3 | 999999 | |
| 0.72 | 1.90 | 0.49 | 1.30 | -6.01 | 225.35 | -41.89 | 105.07 | 0.6900 | 493.9 | 381.6 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -14.42 | 223.76 | -43.49 | 115.56 | 0.7411 | -611.0 | -483.2 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -6.66 | 224.83 | -42.42 | 105.79 | 0.6985 | 479.0 | 356.4 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -4.77 | 224.80 | -42.45 | 103.14 | 0.6929 | -682.0 | -611.2 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -6.63 | 224.37 | -42.87 | 105.58 | 0.7039 | 339.0 | 243.8 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -9.98 | 223.43 | -43.81 | 109.71 | 0.7265 | -406.0 | -413.8 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -3.05 | 222.59 | -44.65 | 100.06 | 0.7151 | -440.0 | -290.7 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -12.59 | 221.14 | -46.10 | 112.07 | 0.7612 | -499.0 | -498.6 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -9.09 | 221.40 | -45.85 | 107.74 | 0.7461 | -395.0 | -384.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -5.72 | 219.81 | -47.44 | 102.84 | 0.7539 | -553.0 | -475.8 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -5.99 | 219.51 | -47.74 | 103.10 | 0.7580 | -459.0 | -374.5 | |
| 1.54 | 6.79 | 1.19 | 5.24 | -6.96 | 218.64 | -48.61 | 104.08 | 0.7700 | -562.6 | -531.3 | |
| 0.00 | 1.54 | 0.00 | 1.20 | -7.57 | 218.32 | -48.93 | 104.76 | 0.7751 | -553.0 | -415.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
