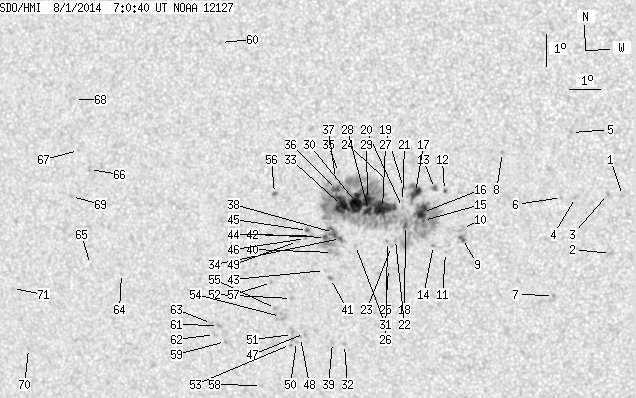

SDO HMI 2014-08-01 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.12 | 549.70 | 61.39 | 294.16 | -7.92 | 249.29 | -17.41 | 128.28 | 0.3786 | 555.5 | 281.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.37 | -7.06 | 257.52 | -9.18 | 144.40 | 0.2733 | 851.0 | 713.0 | |
| 0.00 | 3.17 | 0.00 | 1.65 | -8.89 | 257.10 | -9.60 | 146.82 | 0.3024 | 849.0 | 571.7 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -7.04 | 257.05 | -9.65 | 142.99 | 0.2776 | 925.0 | 799.6 | |
| 0.00 | 2.26 | 0.00 | 1.17 | -7.15 | 256.05 | -10.65 | 140.48 | 0.2894 | 885.0 | 695.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.13 | 255.97 | -10.73 | 135.35 | 0.2650 | 894.0 | 708.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.16 | 255.61 | -11.09 | 139.35 | 0.2942 | 644.0 | 481.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.24 | 255.26 | -11.44 | 144.58 | 0.3381 | 890.0 | 749.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.79 | 253.80 | -12.90 | 131.76 | 0.2991 | 1050.0 | 806.3 | |
| 1.45 | 4.98 | 0.76 | 2.63 | -8.51 | 252.45 | -14.25 | 135.07 | 0.3461 | -822.8 | -679.4 | |
| 0.00 | 3.26 | 0.00 | 1.72 | -8.19 | 252.46 | -14.24 | 134.44 | 0.3424 | -162.0 | -158.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -8.96 | 251.89 | -14.81 | 134.88 | 0.3578 | -429.0 | -172.4 | |
| 0.36 | 1.36 | 0.19 | 0.71 | -7.02 | 251.93 | -14.76 | 130.82 | 0.3357 | -650.8 | -593.7 | |
| 1.00 | 3.35 | 0.52 | 1.76 | -6.96 | 251.62 | -15.08 | 130.09 | 0.3390 | 1042.0 | 795.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.75 | 251.52 | -15.18 | 133.74 | 0.3598 | 952.0 | 710.9 | |
| 0.27 | 427.85 | 0.14 | 228.31 | -7.97 | 251.23 | -15.47 | 131.59 | 0.3547 | 965.3 | 382.2 | |
| 9.78 | -15.00 | 5.17 | -15.00 | -7.73 | 251.21 | -15.49 | 131.01 | 0.3522 | 1189.6 | 999999 | |
| 6.70 | 18.39 | 3.54 | 9.71 | -7.11 | 251.01 | -15.69 | 129.28 | 0.3482 | 1152.6 | 836.9 | |
| 1.54 | -15.00 | 0.82 | -15.00 | -8.15 | 250.65 | -16.05 | 130.90 | 0.3636 | 528.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -6.96 | 250.63 | -16.07 | 128.29 | 0.3515 | 853.0 | 743.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -7.59 | 250.58 | -16.12 | 129.57 | 0.3586 | 645.0 | 568.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.40 | 250.58 | -16.12 | 129.17 | 0.3566 | 644.0 | 544.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.60 | 250.31 | -16.39 | 131.23 | 0.3726 | 226.0 | 143.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.82 | 250.17 | -16.53 | 131.44 | 0.3766 | 706.0 | 532.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.82 | 250.16 | -16.54 | 127.15 | 0.3562 | 574.0 | 585.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.52 | 250.04 | -16.66 | 132.59 | 0.3857 | -863.0 | -760.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.67 | 250.05 | -16.65 | 130.92 | 0.3765 | 727.0 | 556.1 | |
| 24.82 | -15.00 | 13.21 | -15.00 | -7.60 | 249.94 | -16.76 | 128.51 | 0.3669 | 1239.6 | 999999 | |
| 6.61 | -15.00 | 3.53 | -15.00 | -7.71 | 249.48 | -17.22 | 127.98 | 0.3738 | 1114.3 | 999999 | |
| 9.69 | -15.00 | 5.17 | -15.00 | -7.37 | 249.46 | -17.24 | 127.22 | 0.3706 | 1366.1 | 999999 | |
| 21.65 | -15.00 | 11.57 | -15.00 | -7.47 | 249.10 | -17.59 | 126.87 | 0.3762 | 1140.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -8.82 | 249.01 | -17.69 | 129.51 | 0.3909 | 649.0 | 607.8 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -11.98 | 248.46 | -18.24 | 134.44 | 0.4306 | -776.0 | -603.7 | |
| 19.83 | -15.00 | 10.63 | -15.00 | -7.58 | 248.62 | -18.08 | 126.35 | 0.3836 | 998.8 | 999999 | |
| 0.91 | -15.00 | 0.49 | -15.00 | -8.62 | 248.53 | -18.17 | 128.36 | 0.3947 | 952.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.55 | 248.56 | -18.14 | 124.03 | 0.3748 | 721.0 | 577.4 | |
| 3.35 | -15.00 | 1.79 | -15.00 | -7.09 | 248.48 | -18.22 | 125.07 | 0.3808 | 930.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.74 | 248.46 | -18.24 | 124.30 | 0.3779 | 770.0 | 585.0 | |
| 4.17 | -15.00 | 2.25 | -15.00 | -8.44 | 248.32 | -18.38 | 127.66 | 0.3957 | 957.1 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -11.92 | 248.07 | -18.63 | 133.74 | 0.4345 | -750.0 | -577.6 | |
| 0.00 | 5.43 | 0.00 | 2.94 | -9.07 | 248.25 | -18.45 | 128.81 | 0.4027 | -68.0 | -61.1 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -9.89 | 248.14 | -18.56 | 130.22 | 0.4124 | -912.0 | -769.8 | |
| 1.45 | -15.00 | 0.78 | -15.00 | -8.60 | 248.05 | -18.65 | 127.58 | 0.4007 | 629.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -9.64 | 247.96 | -18.74 | 129.48 | 0.4121 | -795.0 | -619.2 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -8.55 | 247.59 | -19.10 | 126.82 | 0.4060 | 763.0 | 611.6 | |
| 0.91 | 2.08 | 0.49 | 1.13 | -8.40 | 247.47 | -19.23 | 126.34 | 0.4061 | 760.8 | 652.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.65 | 247.39 | -19.31 | 126.73 | 0.4095 | 578.0 | 392.4 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -11.67 | 247.17 | -19.53 | 131.96 | 0.4422 | -854.0 | -729.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -11.80 | 247.02 | -19.68 | 131.98 | 0.4452 | -845.0 | -680.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.76 | 247.13 | -19.57 | 126.56 | 0.4139 | -617.0 | -454.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -11.93 | 246.88 | -19.82 | 132.00 | 0.4482 | -553.0 | -479.1 | |
| 0.00 | 5.43 | 0.00 | 3.01 | -11.71 | 246.77 | -19.93 | 131.46 | 0.4473 | -720.0 | -633.8 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -10.57 | 246.82 | -19.88 | 129.52 | 0.4352 | -804.0 | -533.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -12.04 | 246.67 | -20.03 | 131.87 | 0.4516 | -464.0 | -422.9 | |
| 0.00 | 7.52 | 0.00 | 4.16 | -11.15 | 246.41 | -20.29 | 129.99 | 0.4459 | -498.0 | -654.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -10.90 | 246.26 | -20.44 | 129.35 | 0.4452 | -934.0 | -740.7 | |
| 0.63 | 1.63 | 0.34 | 0.88 | -7.28 | 246.45 | -20.25 | 122.65 | 0.4094 | 921.7 | 802.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -10.08 | 246.19 | -20.51 | 127.77 | 0.4382 | -569.0 | -447.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.39 | 245.59 | -21.11 | 132.59 | 0.4778 | -553.0 | -474.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -12.02 | 244.51 | -22.19 | 128.95 | 0.4770 | -755.0 | -660.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -2.66 | 244.84 | -21.85 | 110.59 | 0.3989 | 868.0 | 677.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.52 | 244.31 | -22.39 | 127.86 | 0.4746 | -867.0 | -737.9 | |
| 0.00 | 2.35 | 0.00 | 1.33 | -11.81 | 244.15 | -22.55 | 128.16 | 0.4792 | -562.0 | -364.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.46 | 244.08 | -22.62 | 127.48 | 0.4769 | -850.0 | -676.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -10.00 | 241.15 | -25.55 | 121.71 | 0.5012 | -663.0 | -485.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -9.76 | 240.11 | -26.59 | 120.28 | 0.5129 | -646.0 | -556.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -6.77 | 240.29 | -26.41 | 115.13 | 0.4897 | -688.0 | -620.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -6.20 | 239.95 | -26.75 | 113.77 | 0.4909 | -694.0 | -541.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -4.62 | 239.89 | -26.81 | 110.71 | 0.4825 | -784.0 | -579.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.65 | 239.62 | -27.08 | 116.15 | 0.5046 | -668.0 | -558.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -12.55 | 237.63 | -29.07 | 122.51 | 0.5645 | -721.0 | -584.3 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -10.65 | 237.28 | -29.42 | 119.25 | 0.5554 | -463.0 | -349.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
