SDO HMI 2014-08-01 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.86 | 36.61 | 8.60 | 21.21 | -20.55 | 249.04 | -17.12 | 147.90 | 0.5210 | 858.3 | 490.6 | |
|
previous
or next observation for the same group /

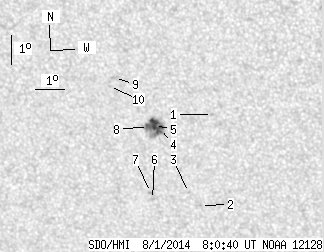

back to the solar disc SDO HMI 2014-08-01 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.01 | 251.08 | -15.07 | 150.52 | 0.4984 | 782.0 | 628.8 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -23.15 | 250.32 | -15.83 | 152.44 | 0.5441 | 795.0 | 637.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.71 | 249.97 | -16.19 | 151.50 | 0.5410 | 487.0 | 359.6 | |
| 3.35 | 28.08 | 1.94 | 16.27 | -20.54 | 249.27 | -16.88 | 148.25 | 0.5189 | 926.9 | 484.4 | |
| 9.06 | -4.00 | 5.24 | -4.00 | -20.44 | 249.08 | -17.08 | 147.86 | 0.5192 | 1082.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.99 | 248.69 | -17.47 | 149.94 | 0.5536 | 542.0 | 416.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.75 | 248.65 | -17.50 | 149.65 | 0.5509 | 754.0 | 608.6 | |
| 2.45 | -4.00 | 1.42 | -4.00 | -20.48 | 248.87 | -17.28 | 147.59 | 0.5214 | 856.5 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -18.86 | 247.90 | -18.25 | 144.30 | 0.5099 | 688.0 | 442.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -19.17 | 247.70 | -18.46 | 144.37 | 0.5153 | 655.0 | 538.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
