SDO HMI 2014-08-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.86 | 88.03 | 21.22 | 54.62 | -18.92 | 237.66 | -27.94 | 132.65 | 0.6038 | -103.7 | -32.9 | |
|
previous
or next observation for the same group /

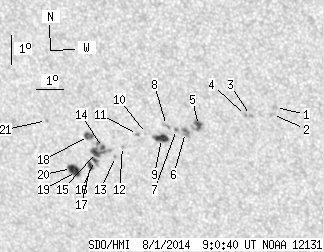

back to the solar disc SDO HMI 2014-08-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.27 | -17.46 | 243.01 | -22.59 | 136.59 | 0.5353 | 336.0 | 385.1 | |
| 0.00 | 2.08 | 0.00 | 1.22 | -17.69 | 242.88 | -22.73 | 136.74 | 0.5391 | 552.0 | 407.1 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -17.76 | 242.10 | -23.50 | 135.88 | 0.5476 | 883.0 | 599.0 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -17.77 | 241.93 | -23.68 | 135.68 | 0.5495 | 836.0 | 679.6 | |
| 3.26 | 7.79 | 1.96 | 4.69 | -18.17 | 240.21 | -25.39 | 134.25 | 0.5710 | 953.6 | 718.9 | |
| 0.00 | 5.62 | 0.00 | 3.40 | -18.43 | 239.71 | -25.90 | 134.04 | 0.5785 | 920.0 | 759.2 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -18.34 | 239.40 | -26.20 | 133.60 | 0.5809 | 852.0 | 742.2 | |
| 0.00 | 2.72 | 0.00 | 1.65 | -18.22 | 239.06 | -26.54 | 133.08 | 0.5833 | 827.0 | 637.5 | |
| 7.06 | 10.23 | 4.33 | 6.27 | -18.67 | 238.81 | -26.80 | 133.40 | 0.5900 | 737.9 | 420.4 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -18.53 | 238.29 | -27.31 | 132.68 | 0.5940 | 310.0 | 287.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -18.58 | 237.95 | -27.65 | 132.40 | 0.5979 | 611.0 | 426.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -19.01 | 237.33 | -28.27 | 132.34 | 0.6081 | -851.0 | -722.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -19.36 | 237.00 | -28.60 | 132.47 | 0.6145 | -724.0 | -634.2 | |
| 1.54 | 28.80 | 0.97 | 18.16 | -19.08 | 236.58 | -29.02 | 131.71 | 0.6164 | -960.7 | -663.8 | |
| 5.52 | -14.00 | 3.48 | -14.00 | -19.26 | 236.32 | -29.28 | 131.69 | 0.6206 | -891.7 | 999999 | |
| 1.54 | -14.00 | 0.97 | -14.00 | -19.53 | 236.19 | -29.41 | 131.92 | 0.6242 | -801.6 | 999999 | |
| 2.35 | -14.00 | 1.50 | -14.00 | -19.71 | 236.01 | -29.59 | 131.97 | 0.6276 | -660.2 | 999999 | |
| 3.71 | 6.43 | 2.33 | 4.04 | -18.73 | 236.13 | -29.47 | 130.84 | 0.6181 | -789.0 | -609.0 | |
| 4.26 | 11.86 | 2.72 | 7.60 | -19.94 | 235.44 | -30.17 | 131.74 | 0.6353 | -839.5 | -499.4 | |
| 4.62 | -19.00 | 2.96 | -19.00 | -19.85 | 235.27 | -30.33 | 131.47 | 0.6362 | -785.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -18.28 | 234.66 | -30.95 | 128.92 | 0.6298 | -810.0 | -645.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
