SDO HMI 2014-08-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.31 | 568.51 | 66.86 | 361.48 | -7.41 | 228.66 | -36.40 | 109.68 | 0.6262 | 513.0 | 322.5 | |
|
previous
or next observation for the same group /

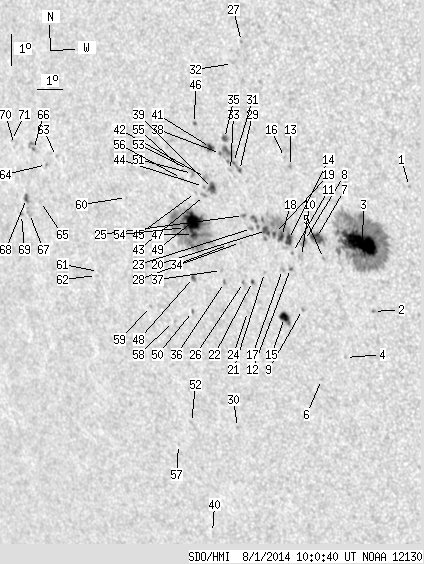

back to the solar disc SDO HMI 2014-08-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.48 | -5.70 | 233.89 | -31.16 | 109.74 | 0.5492 | 759.0 | 622.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -9.69 | 232.24 | -32.82 | 115.18 | 0.5925 | 715.0 | 613.2 | |
| 37.49 | 224.77 | 22.83 | 136.85 | -7.57 | 232.05 | -33.01 | 111.71 | 0.5834 | 1172.4 | 473.6 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -11.22 | 231.01 | -34.05 | 116.65 | 0.6167 | 456.0 | 339.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -8.12 | 230.55 | -34.50 | 111.68 | 0.6057 | 501.0 | 366.3 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -11.98 | 229.99 | -35.06 | 117.08 | 0.6334 | -723.0 | -601.9 | |
| 7.43 | 13.95 | 4.61 | 8.66 | -7.48 | 230.35 | -34.70 | 110.57 | 0.6051 | 842.5 | 584.3 | |
| 0.82 | 4.89 | 0.51 | 3.06 | -7.60 | 229.89 | -35.17 | 110.50 | 0.6117 | 792.1 | 552.6 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -9.78 | 229.57 | -35.48 | 113.62 | 0.6265 | 760.0 | 641.6 | |
| 0.00 | 4.26 | 0.00 | 2.67 | -8.11 | 229.73 | -35.33 | 111.19 | 0.6162 | 4.0 | 85.9 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -8.00 | 229.40 | -35.66 | 110.84 | 0.6199 | 664.0 | 587.7 | |
| 0.36 | 1.45 | 0.23 | 0.92 | -8.51 | 229.27 | -35.79 | 111.54 | 0.6240 | 711.2 | 495.0 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -5.32 | 229.55 | -35.50 | 106.75 | 0.6061 | 871.0 | 684.5 | |
| 4.89 | 68.01 | 3.08 | 43.04 | -7.61 | 229.28 | -35.77 | 110.17 | 0.6195 | 935.2 | 502.0 | |
| 6.16 | 9.78 | 3.95 | 6.27 | -10.08 | 228.85 | -36.21 | 113.62 | 0.6370 | 842.4 | 591.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -5.05 | 229.34 | -35.71 | 106.23 | 0.6078 | 720.0 | 583.9 | |
| 0.00 | 2.17 | 0.00 | 1.38 | -8.56 | 228.95 | -36.10 | 111.44 | 0.6282 | 617.0 | 525.6 | |
| 3.44 | -14.00 | 2.17 | -14.00 | -7.53 | 229.03 | -36.03 | 109.92 | 0.6225 | 858.8 | 999999 | |
| 1.09 | -14.00 | 0.69 | -14.00 | -7.45 | 228.77 | -36.29 | 109.66 | 0.6254 | 836.8 | 999999 | |
| 3.71 | -14.00 | 2.36 | -14.00 | -7.37 | 228.47 | -36.59 | 109.39 | 0.6289 | 808.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -8.70 | 228.25 | -36.81 | 111.26 | 0.6377 | 667.0 | 576.2 | |
| 0.72 | 1.72 | 0.47 | 1.11 | -9.01 | 227.75 | -37.31 | 111.45 | 0.6454 | 482.5 | 382.5 | |
| 0.00 | 2.08 | 0.00 | 1.33 | -7.35 | 227.89 | -37.16 | 109.06 | 0.6361 | 698.0 | 561.8 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -9.98 | 227.43 | -37.63 | 112.67 | 0.6539 | 705.0 | 550.2 | |
| 0.00 | 1.99 | 0.00 | 1.28 | -6.96 | 227.62 | -37.43 | 108.35 | 0.6379 | 722.0 | 579.3 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -9.07 | 227.39 | -37.67 | 111.34 | 0.6501 | -454.0 | -408.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -1.57 | 227.86 | -37.19 | 100.10 | 0.6160 | -728.0 | -630.2 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -7.81 | 227.42 | -37.64 | 109.52 | 0.6441 | 747.0 | 651.6 | |
| 0.63 | 22.19 | 0.40 | 14.21 | -5.56 | 227.59 | -37.47 | 106.23 | 0.6328 | 592.1 | 132.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -13.74 | 226.40 | -38.66 | 117.27 | 0.6850 | -634.0 | -481.6 | |
| 0.45 | -29.00 | 0.29 | -29.00 | -5.33 | 227.37 | -37.68 | 105.77 | 0.6347 | 609.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -2.26 | 227.50 | -37.56 | 101.08 | 0.6229 | -681.0 | -507.8 | |
| 0.00 | 1.72 | 0.00 | 1.10 | -5.58 | 227.24 | -37.82 | 106.10 | 0.6374 | 479.0 | 312.1 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -7.91 | 226.94 | -38.11 | 109.42 | 0.6505 | 604.0 | 507.0 | |
| 1.72 | 3.98 | 1.10 | 2.55 | -4.60 | 227.08 | -37.98 | 104.55 | 0.6359 | -896.2 | -728.8 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -9.12 | 226.64 | -38.42 | 111.02 | 0.6595 | -534.0 | -428.7 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -8.74 | 226.57 | -38.49 | 110.45 | 0.6588 | -737.0 | -525.0 | |
| 0.45 | -29.00 | 0.29 | -29.00 | -5.08 | 226.89 | -38.17 | 105.19 | 0.6401 | 448.2 | 999999 | |
| 4.08 | 7.43 | 2.65 | 4.83 | -6.19 | 226.49 | -38.57 | 106.68 | 0.6493 | 857.9 | 681.2 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -17.27 | 224.55 | -40.51 | 120.73 | 0.7239 | -393.0 | -294.6 | |
| 2.90 | 7.97 | 1.87 | 5.16 | -4.92 | 226.51 | -38.55 | 104.79 | 0.6444 | 459.8 | -81.6 | |
| 0.00 | 3.62 | 0.00 | 2.36 | -5.86 | 226.24 | -38.82 | 106.09 | 0.6512 | 640.0 | 539.1 | |
| 0.00 | 2.63 | 0.00 | 1.72 | -6.43 | 226.15 | -38.91 | 106.89 | 0.6545 | 668.0 | 573.2 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -6.15 | 226.13 | -38.92 | 106.47 | 0.6536 | 527.0 | 452.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -6.36 | 225.80 | -39.26 | 106.63 | 0.6586 | 578.0 | 442.8 | |
| 0.54 | 1.63 | 0.35 | 1.06 | -4.21 | 225.93 | -39.13 | 103.51 | 0.6495 | -725.8 | -580.9 | |
| 3.80 | 121.17 | 2.52 | 80.36 | -7.68 | 225.58 | -39.47 | 108.45 | 0.6664 | 740.0 | 227.5 | |
| 1.09 | 3.08 | 0.73 | 2.06 | -9.04 | 225.41 | -39.64 | 110.30 | 0.6741 | -513.7 | -343.5 | |
| 19.47 | -47.00 | 12.87 | -47.00 | -7.27 | 225.59 | -39.47 | 107.87 | 0.6648 | 946.0 | 999999 | |
| 0.36 | 1.63 | 0.24 | 1.10 | -10.12 | 225.22 | -39.84 | 111.71 | 0.6811 | -508.0 | -413.0 | |
| 0.00 | 2.45 | 0.00 | 1.60 | -5.77 | 225.73 | -39.32 | 105.75 | 0.6573 | 719.0 | 523.3 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -13.70 | 224.53 | -40.52 | 116.17 | 0.7057 | -677.0 | -558.6 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -5.66 | 225.58 | -39.47 | 105.52 | 0.6588 | 473.0 | 314.0 | |
| 1.18 | -47.00 | 0.78 | -47.00 | -7.48 | 225.29 | -39.77 | 108.03 | 0.6693 | 505.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -5.67 | 225.34 | -39.71 | 105.44 | 0.6619 | 469.0 | 367.0 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -5.96 | 225.28 | -39.78 | 105.83 | 0.6637 | 589.0 | 467.0 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -14.46 | 223.82 | -41.23 | 116.76 | 0.7171 | -580.0 | -478.9 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -10.49 | 224.39 | -40.67 | 111.81 | 0.6925 | -536.0 | -555.6 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -10.08 | 223.51 | -41.55 | 110.83 | 0.7010 | -550.0 | -392.9 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -6.70 | 222.97 | -42.09 | 105.97 | 0.6947 | 544.0 | 440.0 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -9.12 | 221.47 | -43.58 | 108.66 | 0.7207 | -460.0 | -458.0 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -9.25 | 221.37 | -43.69 | 108.79 | 0.7224 | -539.0 | -463.4 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -5.63 | 220.12 | -44.94 | 103.49 | 0.7252 | -632.0 | -513.8 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -5.91 | 219.65 | -45.40 | 103.72 | 0.7314 | -662.0 | -574.6 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -7.09 | 219.25 | -45.81 | 105.15 | 0.7394 | 100.0 | 158.6 | |
| 0.45 | 4.35 | 0.33 | 3.17 | -5.48 | 219.12 | -45.93 | 102.99 | 0.7363 | -624.8 | -514.5 | |
| 0.00 | 2.99 | 0.00 | 2.22 | -7.50 | 218.70 | -46.35 | 105.50 | 0.7468 | -706.0 | -543.5 | |
| 2.08 | 4.26 | 1.54 | 3.16 | -7.04 | 218.63 | -46.42 | 104.88 | 0.7462 | -635.9 | -381.2 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -7.56 | 218.33 | -46.72 | 105.45 | 0.7510 | -553.0 | -424.6 | |
| 0.00 | 1.99 | 0.00 | 1.47 | -5.39 | 218.29 | -46.77 | 102.61 | 0.7456 | -419.0 | -292.8 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -5.27 | 218.16 | -46.89 | 102.43 | 0.7467 | -460.0 | -406.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
