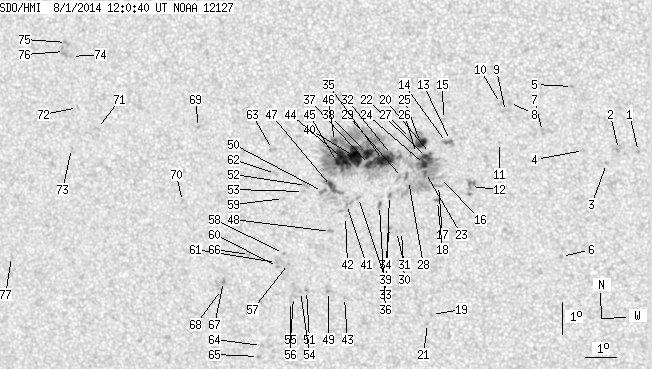

SDO HMI 2014-08-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.46 | 535.35 | 58.09 | 282.30 | -7.77 | 249.32 | -14.63 | 133.08 | 0.3432 | 520.0 | 313.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.18 | 257.90 | -6.06 | 154.93 | 0.2483 | 937.0 | 768.5 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -7.12 | 257.28 | -6.68 | 152.63 | 0.2520 | 908.0 | 809.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -7.56 | 256.90 | -7.05 | 152.14 | 0.2616 | 850.0 | 623.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.16 | 256.20 | -7.76 | 149.05 | 0.2616 | 819.0 | 583.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.18 | 255.89 | -8.07 | 143.58 | 0.2364 | 957.0 | 790.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.51 | 255.43 | -8.52 | 152.48 | 0.3167 | 800.0 | 653.6 | |
| 0.00 | 2.81 | 0.00 | 1.44 | -6.59 | 254.94 | -9.02 | 143.86 | 0.2652 | 687.0 | 634.1 | |
| 0.00 | 2.26 | 0.00 | 1.16 | -5.70 | 253.93 | -10.02 | 138.80 | 0.2641 | 876.0 | 617.0 | |
| 0.00 | 2.90 | 0.00 | 1.49 | -5.99 | 253.80 | -10.15 | 139.13 | 0.2691 | 597.0 | 636.8 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -5.74 | 253.65 | -10.30 | 138.10 | 0.2677 | 811.0 | 741.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -6.95 | 253.59 | -10.36 | 140.82 | 0.2838 | 634.0 | 473.9 | |
| 0.00 | 8.33 | 0.00 | 4.34 | -8.35 | 252.65 | -11.31 | 141.33 | 0.3118 | -699.0 | -632.1 | |
| 0.36 | 5.89 | 0.19 | 3.06 | -6.92 | 252.06 | -11.89 | 136.82 | 0.3002 | -473.2 | 238.1 | |
| 0.54 | -13.00 | 0.28 | -13.00 | -6.99 | 251.94 | -12.02 | 136.66 | 0.3025 | 739.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -6.27 | 251.86 | -12.09 | 134.80 | 0.2948 | 821.0 | 621.0 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -8.08 | 251.71 | -12.24 | 138.54 | 0.3184 | 648.0 | 456.7 | |
| 0.00 | 3.17 | 0.00 | 1.66 | -8.34 | 251.64 | -12.31 | 138.90 | 0.3223 | 807.0 | 624.4 | |
| 0.36 | 2.99 | 0.19 | 1.57 | -8.81 | 251.60 | -12.36 | 139.75 | 0.3288 | 908.0 | 666.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -12.43 | 251.25 | -12.71 | 145.32 | 0.3791 | 719.0 | 639.8 | |
| 0.27 | 363.25 | 0.14 | 191.02 | -7.34 | 251.42 | -12.53 | 136.26 | 0.3126 | 1101.7 | 410.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.72 | 251.11 | -12.85 | 145.46 | 0.3842 | 637.0 | 503.1 | |
| 5.52 | -20.00 | 2.88 | -20.00 | -7.47 | 251.29 | -12.66 | 136.25 | 0.3156 | 1179.1 | 999999 | |
| 1.00 | -20.00 | 0.52 | -20.00 | -7.94 | 251.25 | -12.71 | 137.16 | 0.3218 | 938.6 | 999999 | |
| 4.98 | -20.00 | 2.60 | -20.00 | -7.69 | 251.22 | -12.73 | 136.57 | 0.3191 | 1054.6 | 999999 | |
| 8.69 | 20.46 | 4.53 | 10.67 | -7.00 | 251.12 | -12.84 | 134.81 | 0.3121 | 1138.9 | 758.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -7.35 | 250.98 | -12.97 | 135.28 | 0.3178 | 582.0 | 500.0 | |
| 0.00 | 3.44 | 0.00 | 1.79 | -6.88 | 250.81 | -13.15 | 133.85 | 0.3145 | 937.0 | 776.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.20 | 250.70 | -13.25 | 136.51 | 0.3311 | 38.0 | 117.7 | |
| 0.00 | 5.98 | 0.00 | 3.14 | -8.11 | 250.52 | -13.44 | 135.92 | 0.3322 | 117.0 | 391.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.81 | 250.42 | -13.54 | 139.10 | 0.3538 | -893.0 | -724.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.82 | 250.26 | -13.70 | 138.77 | 0.3556 | -864.0 | -705.5 | |
| 1.72 | -20.00 | 0.90 | -20.00 | -7.40 | 250.19 | -13.76 | 133.69 | 0.3277 | 1163.9 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.24 | -8.69 | 250.08 | -13.87 | 136.20 | 0.3439 | 736.0 | 638.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.69 | 250.04 | -13.91 | 138.10 | 0.3564 | -909.0 | -797.2 | |
| 17.93 | -20.00 | 9.41 | -20.00 | -7.59 | 249.93 | -14.02 | 133.58 | 0.3330 | 1208.7 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.63 | -9.01 | 249.75 | -14.20 | 136.17 | 0.3514 | 754.0 | 495.1 | |
| 5.52 | -20.00 | 2.91 | -20.00 | -7.73 | 249.48 | -14.47 | 132.97 | 0.3399 | 1055.8 | 999999 | |
| 11.95 | -20.00 | 6.29 | -20.00 | -7.35 | 249.40 | -14.55 | 131.99 | 0.3367 | 1229.9 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -8.77 | 249.09 | -14.86 | 134.40 | 0.3563 | 761.0 | 491.2 | |
| 21.01 | -20.00 | 11.07 | -20.00 | -7.49 | 249.02 | -14.94 | 131.54 | 0.3429 | 1145.8 | 999999 | |
| 0.00 | 9.33 | 0.00 | 4.96 | -9.00 | 248.70 | -15.25 | 134.11 | 0.3635 | 637.0 | 436.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.38 | 248.65 | -15.30 | 134.77 | 0.3683 | -646.0 | -443.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.96 | 248.48 | -15.47 | 139.10 | 0.4003 | -894.0 | -751.7 | |
| 18.92 | -20.00 | 10.00 | -20.00 | -7.56 | 248.63 | -15.32 | 130.97 | 0.3484 | 974.7 | 999999 | |
| 4.53 | -20.00 | 2.39 | -20.00 | -7.69 | 248.47 | -15.49 | 130.95 | 0.3518 | 964.9 | 999999 | |
| 2.54 | -20.00 | 1.34 | -20.00 | -7.04 | 248.40 | -15.56 | 129.37 | 0.3458 | 911.6 | 999999 | |
| 4.62 | 16.30 | 2.45 | 8.66 | -8.45 | 248.25 | -15.71 | 132.14 | 0.3627 | 914.4 | 522.9 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -9.87 | 248.15 | -15.81 | 134.77 | 0.3796 | -937.0 | -697.6 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -11.78 | 247.98 | -15.98 | 137.89 | 0.4036 | -912.0 | -706.2 | |
| 0.00 | 4.16 | 0.00 | 2.22 | -8.61 | 247.95 | -16.00 | 131.95 | 0.3681 | 660.0 | 535.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -11.77 | 247.26 | -16.69 | 136.62 | 0.4111 | -884.0 | -752.7 | |
| 0.00 | 3.44 | 0.00 | 1.84 | -8.44 | 247.45 | -16.51 | 130.70 | 0.3724 | 674.0 | 622.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.63 | 247.34 | -16.61 | 130.91 | 0.3757 | 379.0 | 220.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.80 | 247.07 | -16.89 | 136.35 | 0.4137 | -735.0 | -616.2 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -11.97 | 246.83 | -17.13 | 136.23 | 0.4182 | -646.0 | -523.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -12.13 | 246.72 | -17.24 | 136.33 | 0.4213 | -577.0 | -434.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -10.92 | 246.73 | -17.22 | 134.25 | 0.4076 | -747.0 | -677.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -10.61 | 246.59 | -17.37 | 133.45 | 0.4058 | -866.0 | -750.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -8.87 | 246.68 | -17.27 | 130.29 | 0.3862 | -565.0 | -511.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.03 | 246.37 | -17.59 | 133.84 | 0.4129 | -679.0 | -574.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.90 | 246.34 | -17.61 | 133.58 | 0.4118 | -768.0 | -667.6 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -8.09 | 246.46 | -17.49 | 128.35 | 0.3810 | 500.0 | 480.4 | |
| 0.00 | 2.63 | 0.00 | 1.40 | -7.34 | 246.40 | -17.55 | 126.66 | 0.3745 | 759.0 | 699.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -13.58 | 245.66 | -18.30 | 136.96 | 0.4489 | -717.0 | -520.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -13.94 | 245.53 | -18.42 | 137.32 | 0.4543 | 547.0 | 403.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.68 | 245.48 | -18.48 | 131.80 | 0.4195 | -798.0 | -669.4 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -11.56 | 244.56 | -19.39 | 131.99 | 0.4394 | -988.0 | -826.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -11.82 | 244.48 | -19.48 | 132.31 | 0.4431 | -723.0 | -502.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.73 | 244.03 | -19.92 | 121.93 | 0.4005 | -813.0 | -650.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.07 | 243.38 | -20.57 | 125.80 | 0.4296 | -801.0 | -659.8 | |
| 0.00 | 2.35 | 0.00 | 1.30 | -6.89 | 240.69 | -23.26 | 118.33 | 0.4473 | -809.0 | -540.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.26 | 240.06 | -23.90 | 116.44 | 0.4516 | -656.0 | -500.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.55 | 239.78 | -24.17 | 118.68 | 0.4646 | -724.0 | -516.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -4.68 | 239.92 | -24.03 | 113.11 | 0.4431 | -806.0 | -670.0 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -4.26 | 239.77 | -24.18 | 112.08 | 0.4427 | -785.0 | -717.7 | |
| 0.00 | 6.34 | 0.00 | 3.50 | -4.54 | 239.70 | -24.26 | 112.60 | 0.4455 | -646.0 | -579.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -11.05 | 237.45 | -26.50 | 122.54 | 0.5215 | -552.0 | -394.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
