SDO HMI 2014-08-01 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.30 | 35.79 | 8.74 | 20.52 | -20.94 | 249.13 | -14.27 | 152.76 | 0.5044 | 644.7 | 364.4 | |
|
previous
or next observation for the same group /

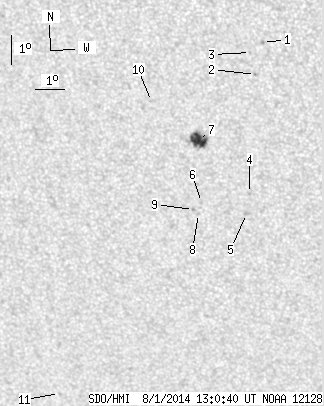

back to the solar disc SDO HMI 2014-08-01 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.95 | -17.16 | 251.42 | -11.99 | 152.91 | 0.4376 | -834.0 | -687.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -18.23 | 251.11 | -12.29 | 153.47 | 0.4545 | 663.0 | 612.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -17.50 | 251.00 | -12.40 | 152.49 | 0.4453 | 460.0 | 472.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.28 | 250.57 | -12.83 | 156.31 | 0.5134 | 656.0 | 532.2 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -22.97 | 250.40 | -13.00 | 156.61 | 0.5238 | 616.0 | 440.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.63 | 248.91 | -14.49 | 153.97 | 0.5285 | 704.0 | 647.8 | |
| 15.30 | 21.91 | 8.74 | 12.52 | -20.50 | 249.03 | -14.37 | 152.15 | 0.4997 | 968.7 | 538.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -23.01 | 248.76 | -14.64 | 154.09 | 0.5344 | 590.0 | 416.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.88 | 248.61 | -14.79 | 153.74 | 0.5337 | 713.0 | 567.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.22 | 247.58 | -15.82 | 148.45 | 0.4940 | 723.0 | 541.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -29.67 | 242.73 | -20.67 | 151.91 | 0.6536 | -675.0 | -516.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
