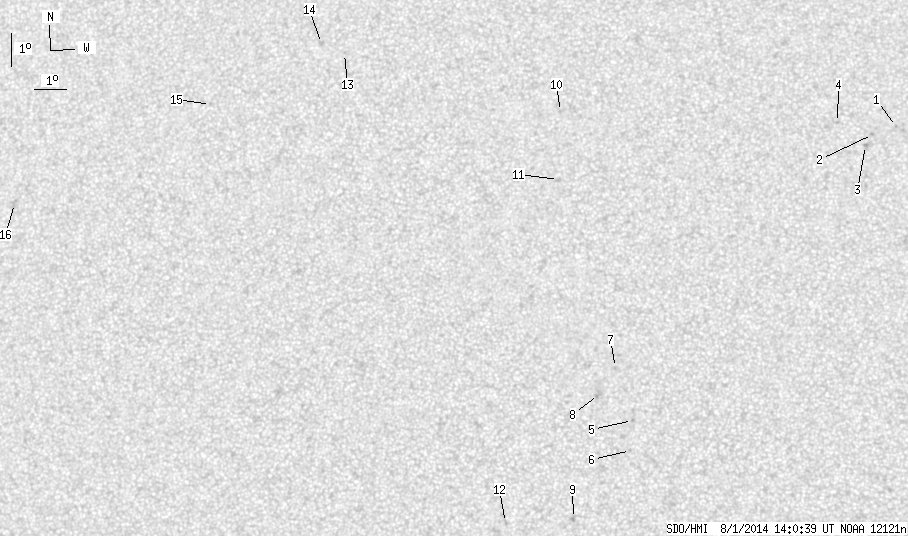

SDO HMI 2014-08-01 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 31.16 | 0.00 | 15.85 | 12.25 | 255.35 | -7.50 | 143.44 | 0.2042 | 257.8 | 332.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 16.38 | 268.18 | 5.33 | 334.18 | 0.2054 | -863.0 | -690.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 16.14 | 267.41 | 4.56 | 337.00 | 0.1963 | -907.0 | -765.5 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 15.80 | 267.18 | 4.33 | 337.35 | 0.1894 | -981.0 | -802.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 16.52 | 266.31 | 3.45 | 342.77 | 0.1959 | -870.0 | -677.5 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 7.40 | 259.89 | -2.96 | 61.20 | 0.0588 | 988.0 | 769.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.49 | 259.83 | -3.02 | 76.82 | 0.0540 | 893.0 | 656.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.02 | 259.35 | -3.50 | 46.93 | 0.0828 | 936.0 | 740.6 | |
| 0.00 | 4.71 | 0.00 | 2.34 | 8.19 | 258.84 | -4.01 | 58.78 | 0.0814 | 891.0 | 729.2 | |
| 0.00 | 2.53 | 0.00 | 1.26 | 4.41 | 258.10 | -4.75 | 106.07 | 0.0864 | 893.0 | 677.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 16.86 | 257.50 | -5.35 | 24.91 | 0.2129 | 728.0 | 605.6 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 14.76 | 257.49 | -5.36 | 30.06 | 0.1812 | 12.0 | 23.1 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 4.27 | 256.01 | -6.84 | 102.30 | 0.1221 | 962.0 | 745.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 18.56 | 250.43 | -12.42 | 42.41 | 0.3037 | 656.0 | 607.6 | |
| 0.00 | 3.26 | 0.00 | 1.70 | 18.86 | 249.65 | -13.20 | 43.40 | 0.3159 | 754.0 | 602.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.88 | 246.14 | -16.71 | 54.50 | 0.3394 | -665.0 | -389.9 | |
| 0.00 | 4.44 | 0.00 | 2.40 | 13.62 | 239.88 | -22.97 | 69.23 | 0.4074 | 697.0 | 554.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
