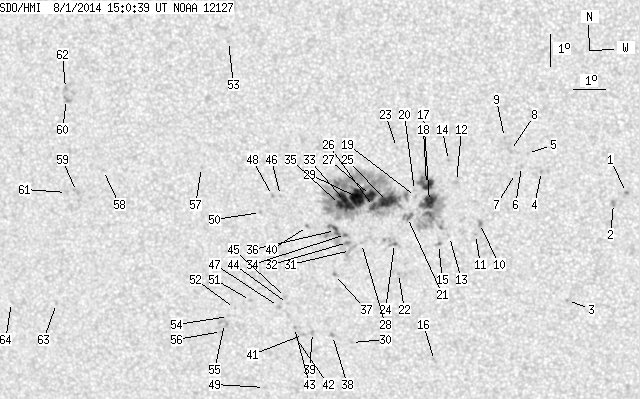

SDO HMI 2014-08-01 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.18 | 500.69 | 53.35 | 262.19 | -7.77 | 249.35 | -12.95 | 136.59 | 0.3236 | 544.5 | 342.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.16 | 257.38 | -4.92 | 159.20 | 0.2406 | 1063.0 | 886.8 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -7.51 | 256.98 | -5.32 | 158.19 | 0.2486 | 942.0 | 769.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.58 | 255.49 | -6.80 | 157.51 | 0.3057 | 805.0 | 564.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.53 | 254.77 | -7.53 | 148.54 | 0.2505 | 968.0 | 742.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.98 | 254.35 | -7.95 | 145.89 | 0.2465 | 852.0 | 672.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.39 | 254.15 | -8.14 | 146.17 | 0.2540 | 833.0 | 565.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.61 | 253.96 | -8.33 | 146.04 | 0.2589 | 706.0 | 489.8 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -5.89 | 253.82 | -8.48 | 143.97 | 0.2504 | 782.0 | 651.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.49 | 253.64 | -8.65 | 142.42 | 0.2467 | 840.0 | 636.9 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -8.19 | 252.81 | -9.49 | 145.83 | 0.2917 | -849.0 | -783.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.53 | 252.68 | -9.62 | 146.12 | 0.2978 | -746.0 | -550.3 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -6.88 | 252.13 | -10.17 | 141.20 | 0.2810 | -315.0 | -27.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.61 | 251.86 | -10.43 | 144.08 | 0.3066 | 42.0 | 60.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.23 | 251.89 | -10.40 | 139.04 | 0.2751 | 949.0 | 784.7 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -8.87 | 251.51 | -10.79 | 143.67 | 0.3135 | 1051.0 | 777.7 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -12.55 | 251.25 | -11.05 | 149.13 | 0.3663 | 666.0 | 587.0 | |
| 14.12 | 89.60 | 7.33 | 46.51 | -7.52 | 251.27 | -11.03 | 140.32 | 0.2983 | 1088.7 | 580.9 | |
| 9.14 | -17.00 | 4.73 | -17.00 | -6.99 | 251.19 | -11.11 | 138.95 | 0.2925 | 1153.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -7.38 | 250.84 | -11.46 | 138.90 | 0.3011 | 577.0 | 390.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -7.19 | 250.81 | -11.49 | 138.42 | 0.2991 | 609.0 | 563.9 | |
| 0.00 | 6.34 | 0.00 | 3.30 | -8.04 | 250.57 | -11.73 | 139.66 | 0.3124 | 666.0 | 604.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.81 | 250.22 | -12.08 | 142.31 | 0.3387 | -850.0 | -737.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.86 | 250.28 | -12.02 | 133.98 | 0.2891 | 130.0 | 94.7 | |
| 0.36 | 8.42 | 0.19 | 4.41 | -8.86 | 250.13 | -12.17 | 140.30 | 0.3275 | 817.5 | 629.7 | |
| 19.01 | 292.24 | 9.91 | 152.80 | -7.55 | 249.95 | -12.35 | 137.16 | 0.3131 | 1205.1 | 427.9 | |
| 3.89 | -25.00 | 2.03 | -25.00 | -7.72 | 249.51 | -12.79 | 136.50 | 0.3201 | 1057.8 | 999999 | |
| 9.50 | -25.00 | 4.96 | -25.00 | -7.37 | 249.42 | -12.87 | 135.57 | 0.3170 | 1308.1 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -8.89 | 249.09 | -13.21 | 138.01 | 0.3390 | 655.0 | 509.8 | |
| 22.26 | -25.00 | 11.65 | -25.00 | -7.45 | 249.01 | -13.29 | 134.82 | 0.3227 | 1182.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -12.03 | 248.63 | -13.67 | 142.70 | 0.3831 | -884.0 | -651.5 | |
| 0.00 | 6.70 | 0.00 | 3.53 | -9.11 | 248.73 | -13.57 | 137.70 | 0.3457 | 138.0 | 79.7 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -8.86 | 248.64 | -13.65 | 137.03 | 0.3436 | 849.0 | 739.6 | |
| 15.66 | -25.00 | 8.21 | -25.00 | -7.58 | 248.63 | -13.67 | 134.29 | 0.3287 | 1024.0 | 999999 | |
| 0.54 | 2.81 | 0.29 | 1.48 | -8.61 | 248.59 | -13.71 | 136.41 | 0.3412 | 984.8 | 735.7 | |
| 4.89 | -25.00 | 2.57 | -25.00 | -7.68 | 248.44 | -13.86 | 134.11 | 0.3321 | 953.7 | 999999 | |
| 2.81 | 15.57 | 1.48 | 8.21 | -8.50 | 248.28 | -14.02 | 135.52 | 0.3434 | 920.7 | 370.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.88 | 248.19 | -14.11 | 138.06 | 0.3609 | -928.0 | -690.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -11.82 | 248.03 | -14.27 | 141.17 | 0.3864 | -866.0 | -751.6 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -11.74 | 247.39 | -14.91 | 139.80 | 0.3919 | -893.0 | -726.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -8.39 | 247.39 | -14.90 | 133.54 | 0.3525 | 774.0 | 686.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.82 | 247.10 | -15.20 | 139.37 | 0.3959 | -881.0 | -701.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.95 | 246.86 | -15.44 | 139.17 | 0.3999 | -714.0 | -566.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.60 | 246.82 | -15.48 | 138.49 | 0.3962 | -737.0 | -656.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -10.84 | 246.64 | -15.66 | 136.84 | 0.3892 | -729.0 | -511.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -10.65 | 246.58 | -15.72 | 136.40 | 0.3876 | -773.0 | -624.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.44 | 246.57 | -15.73 | 129.98 | 0.3522 | 611.0 | 555.7 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -10.95 | 246.34 | -15.96 | 136.48 | 0.3937 | -808.0 | -680.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.45 | 246.32 | -15.98 | 129.53 | 0.3555 | 818.0 | 670.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -13.55 | 245.72 | -16.58 | 139.72 | 0.4309 | -712.0 | -612.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.99 | 245.91 | -16.39 | 129.99 | 0.3662 | 768.0 | 635.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.78 | 245.45 | -16.85 | 134.63 | 0.4018 | -827.0 | -691.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.05 | 244.91 | -17.39 | 134.21 | 0.4109 | -657.0 | -469.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -2.72 | 245.04 | -17.25 | 115.85 | 0.3306 | 735.0 | 576.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -11.31 | 244.70 | -17.60 | 134.32 | 0.4162 | -668.0 | -528.2 | |
| 0.00 | 5.79 | 0.00 | 3.16 | -11.54 | 244.55 | -17.75 | 134.48 | 0.4203 | -664.0 | -717.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -11.80 | 244.44 | -17.86 | 134.74 | 0.4245 | -769.0 | -669.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -6.64 | 244.07 | -18.23 | 124.11 | 0.3769 | -811.0 | -673.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -6.85 | 240.87 | -21.43 | 120.30 | 0.4219 | -752.0 | -494.8 | |
| 0.00 | 3.53 | 0.00 | 1.95 | -7.54 | 239.94 | -22.36 | 120.61 | 0.4400 | -735.0 | -634.4 | |
| 0.00 | 3.17 | 0.00 | 1.73 | -4.68 | 239.74 | -22.56 | 114.50 | 0.4220 | -764.0 | -641.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -7.58 | 239.60 | -22.70 | 120.32 | 0.4449 | -644.0 | -581.6 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -4.34 | 239.72 | -22.58 | 113.74 | 0.4201 | -766.0 | -641.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -11.10 | 239.02 | -23.28 | 126.08 | 0.4819 | -674.0 | -545.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -11.13 | 237.48 | -24.82 | 124.41 | 0.5011 | -672.0 | -508.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
