SDO HMI 2014-08-01 16:00:39 UT

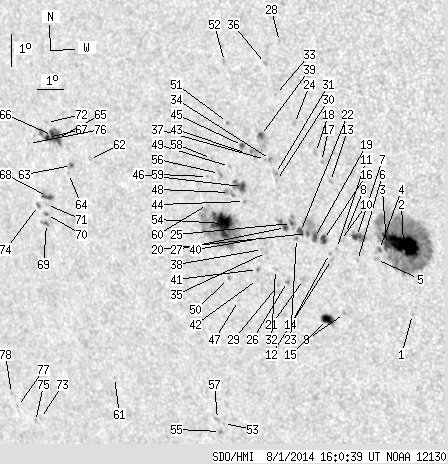

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.85 | 585.18 | 77.81 | 358.92 | -7.28 | 228.24 | -33.50 | 111.21 | 0.5880 | 467.3 | 284.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.54 | -9.82 | 232.32 | -29.42 | 117.92 | 0.5499 | 715.0 | 543.8 | |
| 41.90 | 237.82 | 24.59 | 139.46 | -7.63 | 232.20 | -29.54 | 114.16 | 0.5377 | 1130.9 | 444.7 | |
| 3.26 | -2.00 | 1.92 | -2.00 | -7.66 | 231.60 | -30.15 | 113.77 | 0.5460 | 707.0 | 999999 | |
| 0.36 | 3.08 | 0.21 | 1.82 | -7.83 | 231.33 | -30.41 | 113.87 | 0.5505 | 661.5 | 552.6 | |
| 0.00 | 2.44 | 0.00 | 1.45 | -8.15 | 231.20 | -30.55 | 114.31 | 0.5542 | 544.0 | 392.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -8.22 | 230.51 | -31.23 | 113.93 | 0.5636 | 650.0 | 464.3 | |
| 3.89 | 11.49 | 2.32 | 6.85 | -7.47 | 230.54 | -31.21 | 112.71 | 0.5590 | 857.6 | 684.9 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -7.39 | 230.15 | -31.60 | 112.33 | 0.5638 | 556.0 | 363.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -9.92 | 229.87 | -31.88 | 116.20 | 0.5819 | 677.0 | 531.7 | |
| 0.00 | 2.44 | 0.00 | 1.47 | -7.62 | 229.95 | -31.80 | 112.58 | 0.5677 | 733.0 | 578.2 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -7.88 | 229.78 | -31.96 | 112.89 | 0.5713 | 687.0 | 524.4 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -8.24 | 229.57 | -32.18 | 113.32 | 0.5761 | 600.0 | 442.2 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -5.80 | 229.72 | -32.02 | 109.40 | 0.5614 | 723.0 | 568.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -8.05 | 229.51 | -32.23 | 112.99 | 0.5758 | 724.0 | 556.8 | |
| 7.96 | 11.67 | 4.88 | 7.16 | -10.14 | 229.22 | -32.52 | 116.09 | 0.5914 | 838.9 | 476.1 | |
| 3.35 | 5.34 | 2.03 | 3.23 | -7.62 | 229.33 | -32.41 | 112.18 | 0.5759 | 962.4 | 764.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -5.19 | 229.44 | -32.31 | 108.21 | 0.5625 | 742.0 | 592.1 | |
| 0.00 | 3.44 | 0.00 | 2.06 | -4.93 | 229.23 | -32.51 | 107.65 | 0.5640 | 557.0 | 501.1 | |
| 2.53 | 30.22 | 1.54 | 18.36 | -7.58 | 229.01 | -32.74 | 111.90 | 0.5799 | 927.7 | 522.2 | |
| 0.90 | -19.00 | 0.55 | -19.00 | -7.47 | 228.76 | -32.98 | 111.57 | 0.5826 | 874.3 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.61 | -8.92 | 228.47 | -33.27 | 113.69 | 0.5940 | 720.0 | 579.6 | |
| 2.53 | -19.00 | 1.55 | -19.00 | -7.42 | 228.51 | -33.24 | 111.34 | 0.5857 | 816.9 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -7.65 | 228.34 | -33.40 | 111.60 | 0.5890 | 619.0 | 502.2 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -4.07 | 228.52 | -33.23 | 105.83 | 0.5703 | -680.0 | -544.9 | |
| 0.90 | 6.42 | 0.55 | 3.93 | -7.19 | 228.20 | -33.55 | 110.78 | 0.5886 | 841.5 | 672.2 | |
| 0.00 | 1.81 | 0.00 | 1.12 | -9.02 | 227.87 | -33.87 | 113.46 | 0.6023 | 724.0 | 520.0 | |
| 1.81 | 7.51 | 1.11 | 4.61 | -7.33 | 227.96 | -33.78 | 110.86 | 0.5924 | 778.0 | 594.0 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -1.57 | 228.05 | -33.69 | 101.36 | 0.5677 | -667.0 | -567.1 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -9.14 | 227.52 | -34.22 | 113.42 | 0.6073 | -531.0 | -463.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -5.88 | 227.75 | -34.00 | 108.42 | 0.5884 | 697.0 | 507.2 | |
| 0.00 | 2.81 | 0.00 | 1.71 | -5.66 | 227.72 | -34.02 | 108.06 | 0.5878 | 618.0 | 494.1 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -8.67 | 227.46 | -34.28 | 112.66 | 0.6057 | 555.0 | 383.2 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -3.21 | 227.86 | -33.89 | 104.07 | 0.5761 | -626.0 | -492.1 | |
| 0.00 | 2.17 | 0.00 | 1.33 | -5.23 | 227.57 | -34.18 | 107.28 | 0.5880 | 629.0 | 580.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -8.15 | 227.18 | -34.57 | 111.70 | 0.6067 | 666.0 | 466.1 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -2.28 | 227.52 | -34.22 | 102.35 | 0.5775 | -807.0 | -704.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -5.25 | 227.38 | -34.36 | 107.21 | 0.5906 | 471.0 | 438.9 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -8.07 | 227.04 | -34.71 | 111.48 | 0.6081 | 553.0 | 448.4 | |
| 1.99 | 25.07 | 1.22 | 15.36 | -4.51 | 227.24 | -34.50 | 105.94 | 0.5895 | -923.6 | -147.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -7.72 | 227.00 | -34.75 | 110.93 | 0.6069 | 617.0 | 559.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -8.71 | 226.78 | -34.96 | 112.32 | 0.6145 | -689.0 | -563.8 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -9.02 | 226.75 | -35.00 | 112.78 | 0.6166 | -781.0 | -647.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -5.10 | 226.68 | -35.06 | 106.63 | 0.5993 | 544.0 | 420.8 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -6.60 | 226.50 | -35.25 | 108.91 | 0.6082 | 777.0 | 676.6 | |
| 1.36 | 3.26 | 0.84 | 2.01 | -4.86 | 226.55 | -35.20 | 106.18 | 0.6002 | 593.9 | 451.6 | |
| 4.71 | 12.76 | 2.93 | 7.95 | -6.14 | 226.42 | -35.32 | 108.15 | 0.6072 | 893.7 | 636.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -9.73 | 225.94 | -35.80 | 113.36 | 0.6303 | -611.0 | -406.0 | |
| 0.00 | 6.33 | 0.00 | 3.97 | -6.35 | 225.95 | -35.79 | 108.24 | 0.6142 | 538.0 | 535.1 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -5.54 | 226.01 | -35.73 | 107.01 | 0.6100 | 598.0 | 416.4 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -9.06 | 225.64 | -36.10 | 112.19 | 0.6306 | -556.0 | -389.1 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -4.18 | 226.03 | -35.72 | 104.85 | 0.6046 | -682.0 | -615.4 | |
| 0.00 | 2.08 | 0.00 | 1.28 | -2.30 | 225.99 | -35.75 | 101.80 | 0.5986 | -322.0 | -422.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -13.72 | 224.74 | -37.00 | 118.26 | 0.6661 | -616.0 | -582.2 | |
| 32.22 | 104.88 | 20.36 | 66.41 | -7.34 | 225.60 | -36.15 | 109.58 | 0.6231 | 861.1 | 196.3 | |
| 0.00 | 1.81 | 0.00 | 1.20 | -13.99 | 224.57 | -37.17 | 118.52 | 0.6696 | -752.0 | -646.5 | |
| 0.00 | 2.81 | 0.00 | 1.76 | -5.78 | 225.62 | -36.13 | 107.19 | 0.6162 | 673.0 | 532.2 | |
| 0.00 | 3.35 | 0.00 | 2.22 | -13.60 | 224.52 | -37.22 | 117.97 | 0.6680 | -680.0 | -499.1 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -5.33 | 225.35 | -36.40 | 106.37 | 0.6180 | 169.0 | 240.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -5.90 | 225.15 | -36.59 | 107.16 | 0.6228 | 497.0 | 410.9 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -6.78 | 225.08 | -36.67 | 108.46 | 0.6274 | 305.0 | 275.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -12.52 | 220.57 | -41.18 | 114.28 | 0.7074 | -496.0 | -448.9 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -5.67 | 220.52 | -41.22 | 104.86 | 0.6808 | -600.0 | -428.1 | |
| 0.90 | 3.17 | 0.62 | 2.17 | -5.91 | 219.76 | -41.99 | 104.91 | 0.6909 | -773.5 | -651.9 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -6.17 | 219.61 | -42.13 | 105.22 | 0.6935 | -490.0 | -438.9 | |
| 5.25 | 23.44 | 3.60 | 16.15 | -5.11 | 219.25 | -42.49 | 103.61 | 0.6945 | -755.1 | -556.4 | |
| 2.44 | -65.00 | 1.68 | -65.00 | -5.03 | 219.05 | -42.69 | 103.43 | 0.6967 | -696.0 | 999999 | |
| 2.08 | -65.00 | 1.44 | -65.00 | -5.11 | 218.83 | -42.91 | 103.46 | 0.6996 | -567.4 | 999999 | |
| 3.44 | 6.97 | 2.40 | 4.87 | -6.95 | 218.65 | -43.10 | 105.94 | 0.7076 | 639.8 | 439.9 | |
| 0.90 | 3.26 | 0.64 | 2.29 | -7.80 | 218.50 | -43.24 | 107.04 | 0.7122 | -512.5 | -525.5 | |
| 0.45 | 1.99 | 0.32 | 1.40 | -7.52 | 218.54 | -43.21 | 106.67 | 0.7108 | -502.6 | -239.5 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -7.20 | 218.58 | -43.17 | 106.26 | 0.7093 | -588.0 | -409.5 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -4.64 | 218.83 | -42.91 | 102.81 | 0.6983 | -341.0 | -346.8 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -14.08 | 217.05 | -44.70 | 114.56 | 0.7523 | -211.0 | -268.0 | |
| 0.72 | 2.26 | 0.51 | 1.59 | -7.26 | 218.23 | -43.51 | 106.20 | 0.7136 | 242.0 | 302.2 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -14.19 | 216.80 | -44.95 | 114.58 | 0.7554 | -435.0 | -408.3 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -5.35 | 218.01 | -43.73 | 103.52 | 0.7102 | -448.0 | -351.7 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -13.76 | 216.10 | -45.64 | 113.73 | 0.7609 | -344.0 | -365.5 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -13.36 | 215.93 | -45.81 | 113.16 | 0.7611 | -443.0 | -350.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
