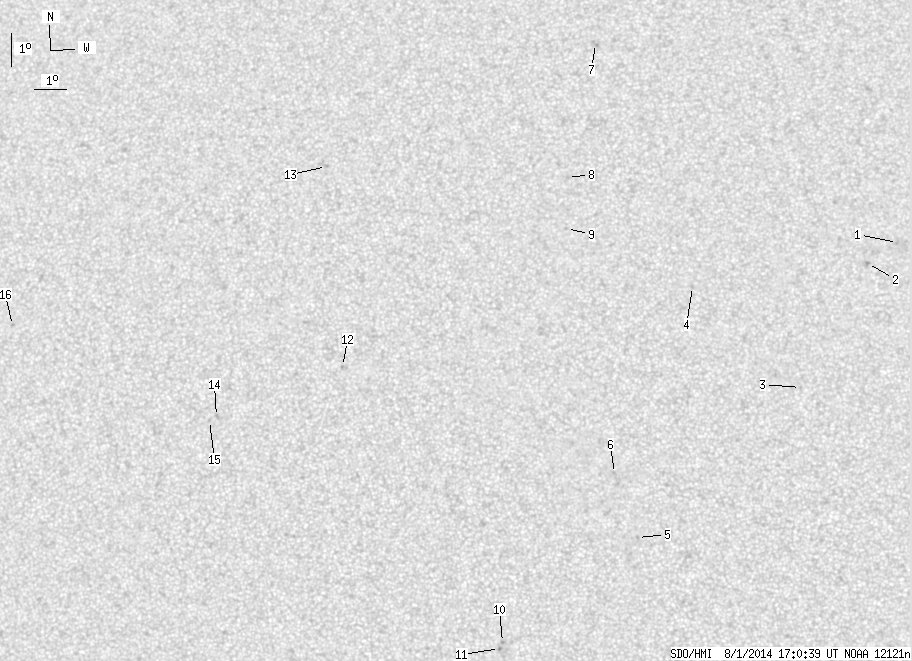

SDO HMI 2014-08-01 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.45 | 0.00 | 12.90 | 13.67 | 256.78 | -4.41 | 268.90 | 0.2025 | 301.2 | 160.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.92 | 16.43 | 268.18 | 6.98 | 327.78 | 0.2197 | -889.0 | -688.2 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 15.79 | 267.20 | 6.01 | 329.93 | 0.2019 | -1158.0 | -801.2 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 12.00 | 265.00 | 3.81 | 328.97 | 0.1268 | -811.0 | -485.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 15.12 | 261.65 | 0.46 | 357.24 | 0.1627 | -783.0 | -646.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.45 | 259.94 | -1.25 | 36.96 | 0.0360 | 832.0 | 698.9 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 9.39 | 259.23 | -1.96 | 28.30 | 0.0714 | 844.0 | 514.8 | |
| 0.00 | 2.80 | 0.00 | 1.45 | 22.71 | 258.49 | -2.70 | 8.51 | 0.2954 | -652.0 | -593.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 18.49 | 257.66 | -3.53 | 14.90 | 0.2284 | 663.0 | 566.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 16.91 | 257.65 | -3.54 | 17.03 | 0.2024 | 731.0 | 586.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.23 | 255.82 | -5.37 | 106.15 | 0.0975 | 997.0 | 805.7 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 4.05 | 255.73 | -5.46 | 107.65 | 0.1000 | 978.0 | 866.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.58 | 250.68 | -10.51 | 56.11 | 0.2154 | 874.0 | 683.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 18.75 | 249.84 | -11.35 | 39.54 | 0.2941 | 813.0 | 641.5 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 10.97 | 246.74 | -14.45 | 69.18 | 0.2632 | 852.0 | 686.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.84 | 246.52 | -14.67 | 69.89 | 0.2660 | 717.0 | 507.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 13.56 | 239.88 | -21.31 | 68.15 | 0.3822 | 811.0 | 717.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
