SDO HMI 2014-08-01 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.04 | 569.84 | 79.83 | 347.39 | -7.29 | 228.22 | -32.97 | 111.56 | 0.5812 | 461.5 | 319.9 | |
|
previous
or next observation for the same group /

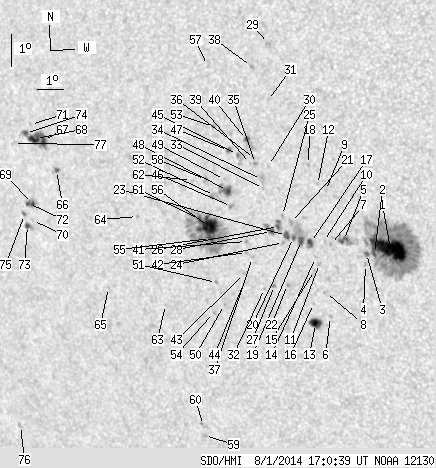

back to the solar disc SDO HMI 2014-08-01 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.17 | 234.53 | 24.02 | 136.74 | -7.63 | 232.21 | -28.98 | 114.60 | 0.5302 | 1158.8 | 473.2 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -7.82 | 231.63 | -29.56 | 114.48 | 0.5391 | 623.7 | 999999 | |
| 1.27 | -1.00 | 0.75 | -1.00 | -7.83 | 231.35 | -29.84 | 114.29 | 0.5429 | 689.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -8.18 | 231.28 | -29.91 | 114.83 | 0.5459 | 590.0 | 434.5 | |
| 3.44 | 12.85 | 2.04 | 7.61 | -7.47 | 230.56 | -30.63 | 113.11 | 0.5514 | 828.2 | 657.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -9.89 | 229.86 | -31.33 | 116.55 | 0.5747 | 733.0 | 522.1 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -7.62 | 230.08 | -31.11 | 113.03 | 0.5586 | 616.0 | 412.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -9.14 | 229.76 | -31.43 | 115.29 | 0.5715 | 700.0 | 579.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -5.94 | 230.03 | -31.16 | 110.17 | 0.5504 | 767.0 | 527.6 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -7.54 | 229.84 | -31.35 | 112.73 | 0.5614 | 525.0 | 573.3 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -8.23 | 229.63 | -31.56 | 113.74 | 0.5680 | 575.0 | 421.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.77 | 229.75 | -31.44 | 109.70 | 0.5533 | 683.0 | 604.3 | |
| 8.23 | 10.77 | 5.01 | 6.56 | -10.14 | 229.29 | -31.90 | 116.53 | 0.5836 | 881.1 | 559.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -8.05 | 229.50 | -31.69 | 113.36 | 0.5687 | 818.0 | 569.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -8.46 | 229.43 | -31.76 | 113.97 | 0.5719 | 400.0 | 314.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -9.51 | 229.29 | -31.90 | 115.54 | 0.5798 | 606.0 | 468.4 | |
| 3.26 | 5.97 | 1.96 | 3.59 | -7.59 | 229.36 | -31.83 | 112.51 | 0.5680 | 986.9 | 735.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -5.16 | 229.46 | -31.73 | 108.50 | 0.5544 | 714.0 | 577.4 | |
| 3.17 | 24.25 | 1.91 | 14.64 | -7.55 | 229.04 | -32.15 | 112.23 | 0.5720 | 956.3 | 543.4 | |
| 1.00 | -19.00 | 0.60 | -19.00 | -7.47 | 228.76 | -32.43 | 111.92 | 0.5754 | 885.8 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.53 | -7.01 | 228.69 | -32.50 | 111.12 | 0.5739 | 226.0 | 193.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.96 | 228.40 | -32.79 | 114.07 | 0.5881 | 753.0 | 675.1 | |
| 2.80 | -19.00 | 1.70 | -19.00 | -7.42 | 228.51 | -32.69 | 111.68 | 0.5784 | 831.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -7.65 | 228.38 | -32.81 | 111.97 | 0.5813 | 645.0 | 534.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -6.80 | 228.41 | -32.78 | 110.62 | 0.5766 | 43.0 | 113.7 | |
| 1.36 | 6.70 | 0.82 | 4.07 | -7.15 | 228.24 | -32.96 | 111.09 | 0.5807 | 855.5 | 690.5 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -9.02 | 227.91 | -33.28 | 113.84 | 0.5947 | 628.0 | 558.6 | |
| 1.72 | 7.51 | 1.05 | 4.58 | -7.33 | 227.96 | -33.23 | 111.20 | 0.5851 | 774.2 | 607.0 | |
| 0.00 | 2.90 | 0.00 | 1.73 | -1.51 | 228.16 | -33.03 | 101.51 | 0.5582 | -775.0 | -634.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -5.27 | 228.01 | -33.18 | 107.87 | 0.5748 | 433.0 | 337.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -3.26 | 228.07 | -33.12 | 104.51 | 0.5656 | -612.0 | -411.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -9.13 | 227.53 | -33.66 | 113.77 | 0.6002 | -564.0 | -429.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -6.00 | 227.77 | -33.42 | 108.94 | 0.5812 | 504.0 | 416.5 | |
| 0.00 | 4.89 | 0.00 | 2.97 | -5.72 | 227.72 | -33.47 | 108.46 | 0.5807 | 562.0 | 441.6 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -5.24 | 227.53 | -33.66 | 107.56 | 0.5811 | 725.0 | 618.0 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -5.08 | 227.50 | -33.69 | 107.29 | 0.5808 | 179.0 | 196.6 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -8.18 | 227.18 | -34.01 | 112.08 | 0.5996 | 724.0 | 639.0 | |
| 0.00 | 2.53 | 0.00 | 1.52 | -2.25 | 227.52 | -33.67 | 102.53 | 0.5696 | -898.0 | -664.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -5.25 | 227.35 | -33.84 | 107.48 | 0.5836 | 459.0 | 412.2 | |
| 1.72 | 8.69 | 1.05 | 5.28 | -4.51 | 227.24 | -33.95 | 106.22 | 0.5819 | -914.1 | -595.1 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -7.69 | 227.01 | -34.18 | 111.21 | 0.5995 | 719.0 | 574.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -8.04 | 226.97 | -34.22 | 111.73 | 0.6016 | 535.0 | 472.9 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -8.70 | 226.83 | -34.36 | 112.68 | 0.6068 | -514.0 | -462.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -9.02 | 226.76 | -34.43 | 113.12 | 0.6094 | -702.0 | -525.2 | |
| 0.36 | 7.78 | 0.22 | 4.76 | -4.99 | 226.88 | -34.31 | 106.83 | 0.5888 | 330.5 | 392.1 | |
| 0.00 | 2.44 | 0.00 | 1.51 | -6.63 | 226.54 | -34.65 | 109.28 | 0.6005 | 823.0 | 700.0 | |
| 1.09 | 2.44 | 0.67 | 1.50 | -4.89 | 226.56 | -34.64 | 106.50 | 0.5928 | 625.3 | 490.4 | |
| 4.80 | 12.58 | 2.96 | 7.78 | -6.14 | 226.43 | -34.76 | 108.44 | 0.5997 | 913.9 | 621.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -5.80 | 226.35 | -34.85 | 107.86 | 0.5994 | 638.0 | 580.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -9.73 | 225.96 | -35.23 | 113.70 | 0.6232 | -585.0 | -401.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -9.05 | 225.74 | -35.45 | 112.55 | 0.6225 | -513.0 | -358.5 | |
| 0.00 | 4.98 | 0.00 | 3.10 | -6.32 | 225.93 | -35.26 | 108.47 | 0.6071 | 518.0 | 526.5 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -4.18 | 226.04 | -35.15 | 105.10 | 0.5970 | -661.0 | -609.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -10.01 | 225.51 | -35.68 | 113.84 | 0.6303 | -526.0 | -412.2 | |
| 3.53 | 117.63 | 2.22 | 73.95 | -7.68 | 225.66 | -35.53 | 110.43 | 0.6168 | 793.0 | 222.9 | |
| 23.07 | -55.00 | 14.47 | -55.00 | -7.30 | 225.62 | -35.57 | 109.83 | 0.6156 | 959.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -2.31 | 225.89 | -35.30 | 101.99 | 0.5924 | -577.0 | -542.0 | |
| 0.00 | 2.26 | 0.00 | 1.41 | -5.84 | 225.63 | -35.56 | 107.57 | 0.6091 | 805.0 | 591.0 | |
| 0.00 | 1.90 | 0.00 | 1.26 | -13.99 | 224.53 | -36.66 | 118.85 | 0.6638 | -667.0 | -653.4 | |
| 0.00 | 3.17 | 0.00 | 2.09 | -13.66 | 224.55 | -36.64 | 118.43 | 0.6617 | -614.0 | -550.9 | |
| 2.44 | -55.00 | 1.54 | -55.00 | -7.11 | 225.30 | -35.89 | 109.36 | 0.6189 | 638.7 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -5.91 | 225.10 | -36.10 | 107.40 | 0.6163 | 474.0 | 395.3 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -9.87 | 223.67 | -37.52 | 112.58 | 0.6521 | 341.0 | 277.6 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -7.16 | 222.90 | -38.29 | 108.25 | 0.6496 | 552.0 | 455.5 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -9.47 | 221.47 | -39.72 | 110.89 | 0.6769 | -558.0 | -397.1 | |
| 1.09 | 2.80 | 0.73 | 1.90 | -5.93 | 219.78 | -41.41 | 105.17 | 0.6839 | -806.2 | -664.2 | |
| 5.97 | 26.69 | 4.06 | 18.22 | -5.03 | 219.33 | -41.86 | 103.73 | 0.6866 | -837.1 | -467.6 | |
| 9.23 | -67.00 | 6.30 | -67.00 | -5.00 | 219.00 | -42.19 | 103.55 | 0.6905 | -745.2 | 999999 | |
| 1.99 | 6.15 | 1.38 | 4.27 | -7.03 | 218.67 | -42.52 | 106.28 | 0.7010 | 672.8 | 523.4 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -7.57 | 218.61 | -42.58 | 106.99 | 0.7036 | -672.0 | -602.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -4.57 | 218.83 | -42.36 | 102.90 | 0.6914 | -590.0 | -440.8 | |
| 1.54 | -69.00 | 1.07 | -69.00 | -7.05 | 218.51 | -42.68 | 106.23 | 0.7031 | 695.0 | 999999 | |
| 1.90 | 4.25 | 1.33 | 2.97 | -7.74 | 218.38 | -42.81 | 107.13 | 0.7070 | -568.8 | -504.6 | |
| 1.99 | -67.00 | 1.37 | -67.00 | -4.87 | 218.60 | -42.59 | 103.24 | 0.6951 | -549.9 | 999999 | |
| 0.63 | 1.90 | 0.44 | 1.33 | -7.40 | 218.29 | -42.90 | 106.64 | 0.7068 | 507.0 | 439.7 | |
| 0.00 | 2.53 | 0.00 | 1.89 | -14.18 | 216.87 | -44.32 | 114.86 | 0.7489 | -447.0 | -426.8 | |
| 0.00 | 2.26 | 0.00 | 1.57 | -5.21 | 218.06 | -43.13 | 103.54 | 0.7025 | -575.0 | -419.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
