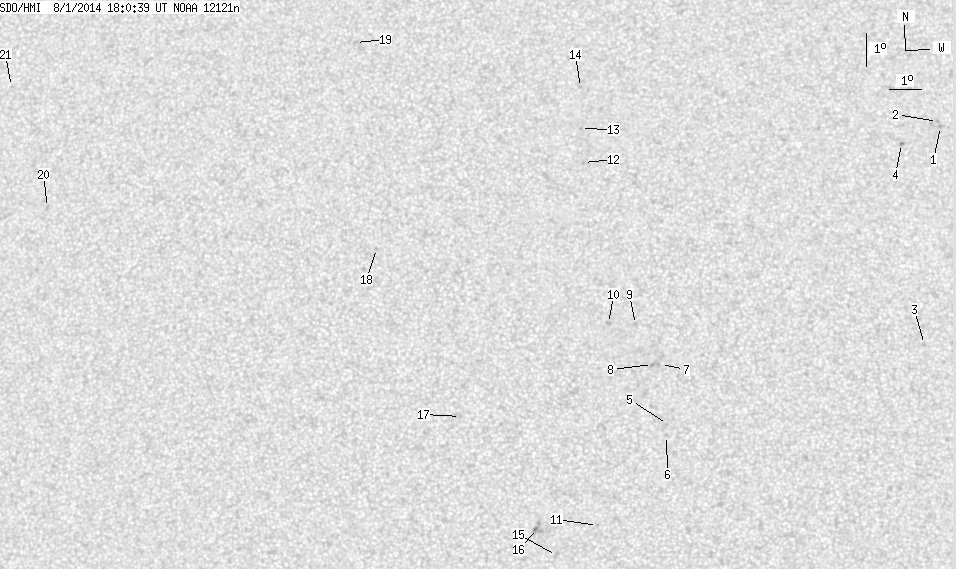

SDO HMI 2014-08-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.48 | 0.00 | 16.35 | 10.26 | 257.29 | -3.34 | 250.83 | 0.1490 | 432.5 | 425.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.78 | 16.33 | 268.45 | 7.81 | 324.58 | 0.2261 | -867.0 | -716.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.49 | 268.36 | 7.73 | 325.29 | 0.2274 | -624.0 | -560.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 9.65 | 267.74 | 7.10 | 299.08 | 0.1400 | -880.0 | -610.1 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 15.82 | 267.19 | 6.55 | 327.82 | 0.2070 | -1001.0 | -832.1 | |
| 0.00 | 0.63 | 0.00 | 0.31 | 7.27 | 259.79 | -0.84 | 29.84 | 0.0295 | 771.0 | 583.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.93 | 259.76 | -0.87 | 37.65 | 0.0249 | 902.0 | 774.7 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 9.10 | 259.57 | -1.06 | 17.69 | 0.0604 | 406.0 | 446.0 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.10 | 259.33 | -1.31 | 21.46 | 0.0619 | 1020.0 | 821.3 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 10.31 | 258.80 | -1.84 | 21.86 | 0.0850 | 681.0 | 492.5 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 10.34 | 257.96 | -2.67 | 30.10 | 0.0919 | 753.0 | 680.9 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 4.19 | 257.66 | -2.98 | 118.46 | 0.0592 | 740.0 | 568.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.27 | 257.13 | -3.51 | 19.73 | 0.1756 | 811.0 | 631.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.32 | 257.02 | -3.62 | 18.35 | 0.1933 | 911.0 | 710.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 17.59 | 256.99 | -3.64 | 16.51 | 0.2141 | 551.0 | 433.4 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 3.27 | 256.41 | -4.23 | 120.86 | 0.0861 | 595.0 | 614.2 | |
| 0.00 | 6.51 | 0.00 | 3.24 | 4.09 | 255.82 | -4.81 | 109.51 | 0.0892 | 1065.0 | 868.2 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 7.48 | 253.42 | -7.21 | 76.51 | 0.1286 | 908.0 | 589.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.56 | 250.67 | -9.97 | 54.82 | 0.2076 | 761.0 | 608.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.91 | 249.67 | -10.97 | 38.23 | 0.2921 | 608.0 | 536.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.55 | 239.94 | -20.70 | 67.68 | 0.3730 | 894.0 | 689.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 17.24 | 238.32 | -22.32 | 60.48 | 0.4185 | 77.0 | 87.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
