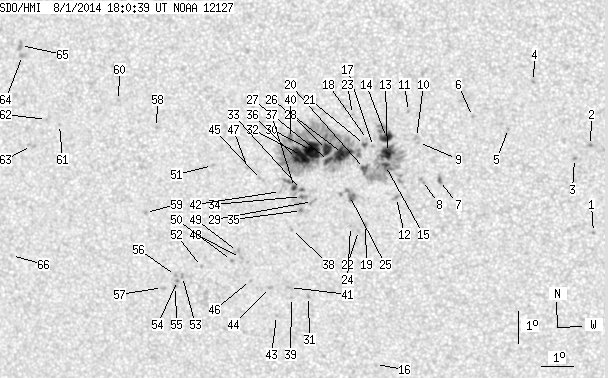

SDO HMI 2014-08-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.11 | 525.93 | 55.58 | 273.65 | -7.78 | 249.32 | -11.32 | 140.52 | 0.3060 | 486.3 | 329.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.90 | 257.66 | -2.97 | 169.32 | 0.2767 | 921.0 | 749.9 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -7.17 | 257.60 | -3.04 | 166.81 | 0.2316 | 1180.0 | 932.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.58 | 257.10 | -3.53 | 165.21 | 0.2404 | 861.0 | 784.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.19 | 255.87 | -4.77 | 156.50 | 0.2086 | 918.0 | 804.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.66 | 255.08 | -5.55 | 155.95 | 0.2369 | 756.0 | 668.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.29 | 253.98 | -6.66 | 151.14 | 0.2397 | 878.0 | 686.3 | |
| 0.81 | 3.62 | 0.42 | 1.87 | -8.30 | 252.92 | -7.71 | 151.34 | 0.2781 | -920.7 | -748.9 | |
| 0.00 | 2.80 | 0.00 | 1.45 | -8.31 | 252.40 | -8.24 | 149.73 | 0.2826 | -460.0 | -442.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.12 | 252.30 | -8.34 | 147.14 | 0.2664 | 665.0 | 550.5 | |
| 0.00 | 3.17 | 0.00 | 1.63 | -6.97 | 252.24 | -8.40 | 146.63 | 0.2647 | -447.0 | -36.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.16 | 252.01 | -8.63 | 144.13 | 0.2557 | 967.0 | 780.0 | |
| 0.00 | 2.62 | 0.00 | 1.36 | -8.86 | 251.57 | -9.06 | 148.30 | 0.2974 | 999.0 | 750.5 | |
| 12.03 | 408.59 | 6.21 | 211.90 | -7.45 | 251.33 | -9.31 | 144.89 | 0.2800 | 1180.8 | 458.1 | |
| 7.87 | -13.00 | 4.05 | -13.00 | -6.98 | 251.31 | -9.33 | 143.84 | 0.2738 | 1179.3 | 999999 | |
| 2.99 | -13.00 | 1.54 | -13.00 | -7.86 | 251.26 | -9.38 | 145.51 | 0.2863 | 992.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -14.19 | 250.72 | -9.91 | 153.90 | 0.3809 | 753.0 | 509.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.27 | 250.90 | -9.74 | 143.27 | 0.2818 | 876.0 | 661.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.05 | 250.72 | -9.92 | 142.29 | 0.2808 | 510.0 | 553.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.72 | 250.58 | -10.06 | 147.13 | 0.3184 | -1042.0 | -870.5 | |
| 2.99 | -13.00 | 1.55 | -13.00 | -7.96 | 250.60 | -10.04 | 143.89 | 0.2941 | 726.4 | 999999 | |
| 1.00 | 2.35 | 0.51 | 1.22 | -7.21 | 250.62 | -10.02 | 142.37 | 0.2839 | 1105.2 | 907.0 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -9.92 | 250.35 | -10.28 | 146.88 | 0.3232 | -853.0 | -686.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.28 | 250.27 | -10.37 | 139.28 | 0.2755 | -552.0 | -310.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.80 | 250.11 | -10.53 | 146.04 | 0.3237 | -1039.0 | -816.5 | |
| 0.00 | 11.22 | 0.00 | 5.84 | -8.82 | 250.11 | -10.53 | 144.26 | 0.3105 | 800.0 | 703.6 | |
| 18.55 | -13.00 | 9.61 | -13.00 | -7.51 | 249.93 | -10.71 | 141.13 | 0.2949 | 1240.6 | 999999 | |
| 4.07 | -13.00 | 2.12 | -13.00 | -7.73 | 249.48 | -11.15 | 140.47 | 0.3025 | 973.7 | 999999 | |
| 8.05 | -13.00 | 4.18 | -13.00 | -7.39 | 249.43 | -11.21 | 139.60 | 0.2987 | 1327.8 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -9.03 | 248.94 | -11.70 | 141.76 | 0.3249 | 769.0 | 544.4 | |
| 23.52 | -13.00 | 12.23 | -13.00 | -7.43 | 248.96 | -11.68 | 138.51 | 0.3043 | 1269.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -12.05 | 248.69 | -11.94 | 146.39 | 0.3672 | -940.0 | -755.3 | |
| 13.84 | -13.00 | 7.21 | -13.00 | -7.59 | 248.64 | -12.00 | 138.10 | 0.3098 | 1087.6 | 999999 | |
| 0.72 | 14.48 | 0.38 | 7.58 | -8.66 | 248.61 | -12.03 | 140.24 | 0.3236 | 1016.4 | 656.9 | |
| 0.45 | 3.17 | 0.24 | 1.66 | -8.88 | 248.60 | -12.04 | 140.66 | 0.3265 | 824.8 | 674.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -9.32 | 248.58 | -12.05 | 141.47 | 0.3323 | -894.0 | -745.5 | |
| 6.06 | -13.00 | 3.16 | -13.00 | -7.69 | 248.48 | -12.16 | 137.93 | 0.3128 | 983.2 | 999999 | |
| 1.99 | -33.00 | 1.04 | -33.00 | -8.60 | 248.39 | -12.25 | 139.62 | 0.3252 | 918.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.93 | 248.24 | -12.39 | 141.83 | 0.3435 | -869.0 | -683.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -12.09 | 248.15 | -12.49 | 145.27 | 0.3727 | -669.0 | -489.0 | |
| 2.17 | -13.00 | 1.13 | -13.00 | -7.07 | 248.31 | -12.33 | 136.16 | 0.3072 | 948.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -11.77 | 248.10 | -12.54 | 144.66 | 0.3690 | -906.0 | -789.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.74 | 247.94 | -12.69 | 138.87 | 0.3316 | 99.0 | 134.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -12.68 | 247.64 | -13.00 | 145.10 | 0.3852 | -826.0 | -571.4 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -11.78 | 247.49 | -13.14 | 143.40 | 0.3749 | -998.0 | -747.6 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -8.37 | 247.36 | -13.28 | 136.84 | 0.3337 | 524.0 | 490.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -11.58 | 246.86 | -13.77 | 141.77 | 0.3784 | -765.0 | -628.5 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -8.01 | 246.93 | -13.71 | 135.15 | 0.3342 | 804.0 | 511.6 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -10.85 | 246.58 | -14.05 | 139.95 | 0.3722 | -751.0 | -619.5 | |
| 0.00 | 2.71 | 0.00 | 1.45 | -10.66 | 246.50 | -14.14 | 139.45 | 0.3708 | -823.0 | -732.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.95 | 246.29 | -14.35 | 139.55 | 0.3766 | -826.0 | -725.2 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -7.97 | 245.82 | -14.82 | 132.84 | 0.3469 | 734.0 | 474.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.17 | 245.32 | -15.32 | 138.06 | 0.3895 | -748.0 | -602.3 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -11.50 | 244.68 | -15.95 | 137.49 | 0.4002 | -977.0 | -816.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.64 | 244.51 | -16.12 | 137.42 | 0.4036 | -984.0 | -820.7 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -11.83 | 244.44 | -16.20 | 137.61 | 0.4067 | -871.0 | -716.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -11.48 | 244.46 | -16.18 | 137.05 | 0.4024 | -812.0 | -649.4 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -11.87 | 244.01 | -16.62 | 136.95 | 0.4118 | -536.0 | -552.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.83 | 244.08 | -16.56 | 127.18 | 0.3567 | -789.0 | -656.2 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -9.51 | 243.60 | -17.03 | 131.96 | 0.3902 | -876.0 | -684.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.03 | 242.89 | -17.75 | 123.46 | 0.3649 | -790.0 | -583.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.83 | 240.95 | -19.69 | 122.49 | 0.3983 | -773.0 | -568.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.69 | 240.53 | -20.11 | 121.64 | 0.4027 | -733.0 | -624.3 | |
| 0.00 | 2.71 | 0.00 | 1.48 | -7.52 | 240.00 | -20.64 | 122.68 | 0.4169 | -729.0 | -714.0 | |
| 0.00 | 3.17 | 0.00 | 1.71 | -4.73 | 239.82 | -20.81 | 116.48 | 0.3973 | -787.0 | -592.6 | |
| 0.00 | 4.16 | 0.00 | 2.24 | -4.42 | 239.77 | -20.87 | 115.72 | 0.3959 | -991.0 | -750.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.02 | 239.11 | -21.52 | 128.12 | 0.4596 | -629.0 | -418.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
