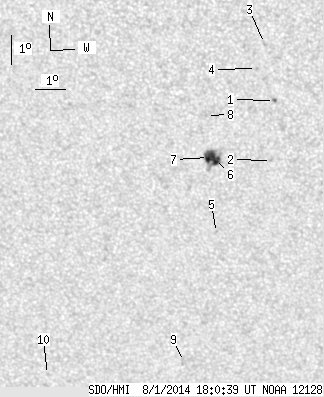

SDO HMI 2014-08-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.92 | 37.20 | 8.42 | 21.12 | -21.01 | 248.98 | -11.66 | 157.24 | 0.4886 | 745.4 | 361.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.72 | 0.35 | 0.95 | -18.49 | 251.18 | -9.46 | 159.20 | 0.4407 | 836.6 | 708.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.52 | 250.96 | -9.68 | 160.39 | 0.4713 | 731.0 | 586.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -16.61 | 250.96 | -9.68 | 157.02 | 0.4144 | 716.0 | 497.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.44 | 250.65 | -9.98 | 157.19 | 0.4284 | 717.0 | 647.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -23.03 | 248.93 | -11.71 | 158.76 | 0.5175 | 712.0 | 576.3 | |
| 8.23 | 25.15 | 4.65 | 14.20 | -20.48 | 249.11 | -11.53 | 157.00 | 0.4811 | 1037.8 | 460.9 | |
| 6.06 | -6.00 | 3.42 | -6.00 | -20.45 | 248.88 | -11.76 | 156.57 | 0.4821 | 978.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.04 | 248.92 | -11.72 | 155.34 | 0.4620 | 752.0 | 649.7 | |
| 0.00 | 3.08 | 0.00 | 1.88 | -27.65 | 247.29 | -13.34 | 159.58 | 0.5880 | -184.0 | -306.9 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -28.27 | 242.32 | -18.31 | 153.54 | 0.6232 | -507.0 | -362.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
