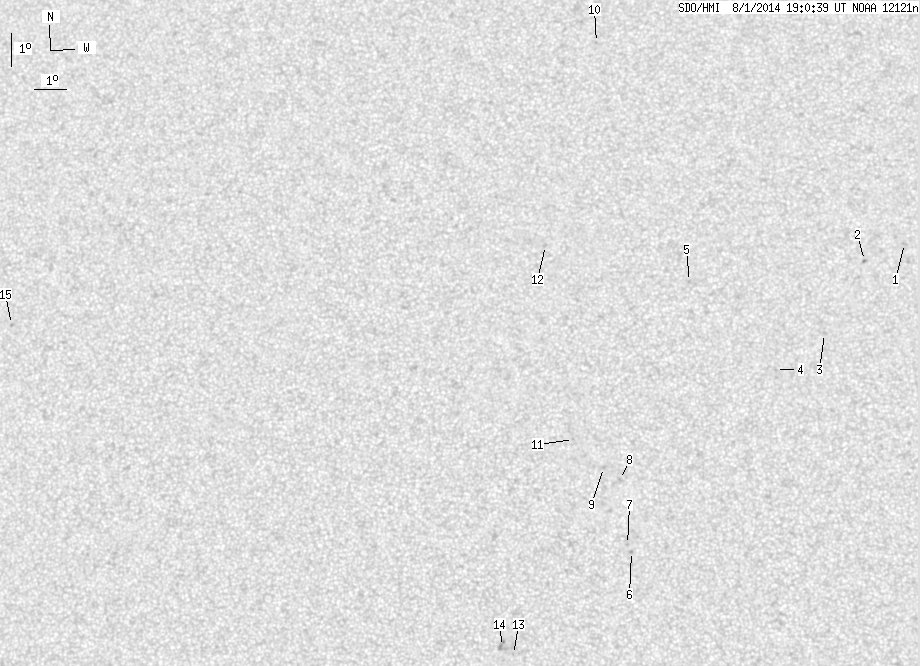

SDO HMI 2014-08-01 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.99 | 0.00 | 13.03 | 10.68 | 259.11 | -0.97 | 272.46 | 0.1374 | 223.2 | 266.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.92 | 16.32 | 268.47 | 8.39 | 322.64 | 0.2318 | -800.0 | -628.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 15.82 | 267.17 | 7.09 | 325.74 | 0.2120 | -1009.0 | -806.4 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 13.59 | 265.84 | 5.76 | 324.30 | 0.1679 | -690.0 | -583.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 12.50 | 264.28 | 4.20 | 328.50 | 0.1374 | -619.0 | -522.4 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 15.22 | 261.62 | 1.54 | 350.99 | 0.1662 | -898.0 | -682.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.97 | 259.79 | -0.29 | 14.11 | 0.0209 | 992.0 | 822.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 7.18 | 259.67 | -0.41 | 16.75 | 0.0250 | 895.0 | 748.4 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 9.16 | 259.45 | -0.63 | 10.53 | 0.0596 | 864.0 | 668.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.53 | 258.93 | -1.15 | 17.06 | 0.0680 | 989.0 | 796.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 22.69 | 258.63 | -1.45 | 4.59 | 0.2925 | -706.0 | -586.8 | |
| 0.00 | 1.00 | 0.00 | 0.49 | 10.38 | 258.00 | -2.08 | 24.19 | 0.0877 | 872.0 | 728.2 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 16.33 | 257.06 | -3.02 | 15.46 | 0.1903 | 768.0 | 542.0 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 3.83 | 256.19 | -3.89 | 116.95 | 0.0764 | 769.0 | 577.8 | |
| 0.00 | 6.88 | 0.00 | 3.42 | 4.07 | 255.85 | -4.23 | 112.31 | 0.0799 | 1009.0 | 828.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 13.58 | 239.98 | -20.10 | 67.11 | 0.3642 | 912.0 | 700.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
