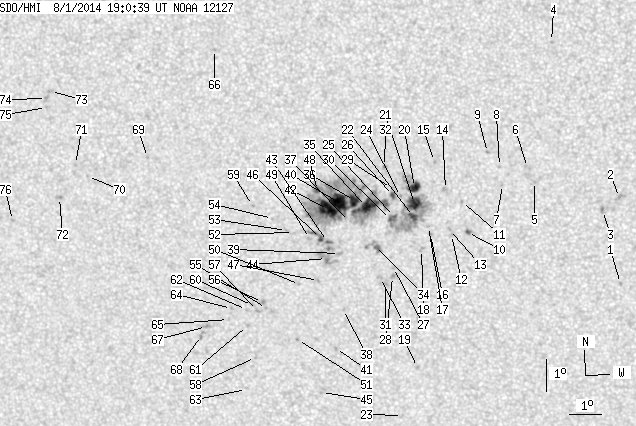

SDO HMI 2014-08-01 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.04 | 502.51 | 52.32 | 261.04 | -7.84 | 249.50 | -10.58 | 142.61 | 0.2996 | 473.7 | 313.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.89 | 257.67 | -2.41 | 171.28 | 0.2751 | 923.0 | 691.1 | |
| 0.00 | 4.16 | 0.00 | 2.12 | -7.19 | 257.66 | -2.43 | 169.43 | 0.2299 | 1096.0 | 807.3 | |
| 0.00 | 2.53 | 0.00 | 1.29 | -7.60 | 257.13 | -2.95 | 167.59 | 0.2385 | 921.0 | 772.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -2.38 | 255.61 | -4.48 | 151.26 | 0.1629 | 684.0 | 615.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.71 | 255.05 | -5.03 | 158.09 | 0.2344 | 804.0 | 668.5 | |
| 0.00 | 2.53 | 0.00 | 1.29 | -6.27 | 254.84 | -5.24 | 156.52 | 0.2289 | 538.0 | 640.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.81 | 254.06 | -6.02 | 154.49 | 0.2427 | 744.0 | 635.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.25 | 253.98 | -6.10 | 153.13 | 0.2348 | 854.0 | 663.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.82 | 253.62 | -6.46 | 150.88 | 0.2312 | 874.0 | 697.8 | |
| 0.81 | 3.17 | 0.42 | 1.63 | -8.32 | 252.96 | -7.12 | 153.26 | 0.2739 | -993.2 | -795.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.36 | 252.79 | -7.29 | 151.00 | 0.2607 | -694.0 | -500.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.39 | 252.46 | -7.62 | 151.79 | 0.2788 | -696.0 | -584.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.24 | 252.40 | -7.68 | 151.34 | 0.2769 | -663.0 | -473.7 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -6.99 | 252.30 | -7.78 | 148.67 | 0.2595 | -32.0 | -64.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.12 | 251.98 | -8.10 | 145.75 | 0.2501 | 996.0 | 909.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.40 | 251.81 | -8.27 | 149.80 | 0.2842 | 931.0 | 746.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.15 | 251.75 | -8.33 | 149.18 | 0.2811 | 998.0 | 783.5 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -8.88 | 251.52 | -8.56 | 149.77 | 0.2935 | 898.0 | 721.6 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -12.63 | 251.28 | -8.80 | 154.65 | 0.3503 | 770.0 | 566.8 | |
| 7.69 | 19.18 | 3.95 | 9.86 | -6.94 | 251.34 | -8.74 | 145.52 | 0.2676 | 1231.0 | 826.3 | |
| 11.67 | 88.39 | 6.01 | 45.61 | -7.44 | 251.33 | -8.75 | 146.53 | 0.2746 | 1236.5 | 438.8 | |
| 3.98 | -21.00 | 2.05 | -21.00 | -7.84 | 251.29 | -8.79 | 147.22 | 0.2807 | 994.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -14.18 | 250.74 | -9.34 | 155.21 | 0.3768 | 744.0 | 694.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -7.23 | 250.90 | -9.18 | 144.81 | 0.2758 | 794.0 | 655.6 | |
| 0.72 | -21.00 | 0.37 | -21.00 | -7.85 | 250.70 | -9.38 | 145.51 | 0.2863 | 982.0 | 999999 | |
| 1.72 | 3.17 | 0.89 | 1.63 | -7.20 | 250.69 | -9.39 | 144.11 | 0.2775 | 1002.3 | 580.4 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -9.46 | 250.63 | -9.45 | 148.28 | 0.3094 | -695.0 | -562.8 | |
| 0.00 | 2.35 | 0.00 | 1.23 | -9.74 | 250.59 | -9.49 | 148.65 | 0.3138 | -999.0 | -837.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.98 | 250.63 | -9.45 | 143.48 | 0.2751 | 682.0 | 594.1 | |
| 0.90 | -21.00 | 0.47 | -21.00 | -7.95 | 250.58 | -9.51 | 145.34 | 0.2889 | 780.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -10.00 | 250.36 | -9.72 | 148.48 | 0.3194 | -787.0 | -664.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.30 | 250.43 | -9.65 | 141.35 | 0.2681 | -855.0 | -565.3 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -9.78 | 250.21 | -9.87 | 147.72 | 0.3176 | -784.0 | -734.6 | |
| 0.00 | 11.22 | 0.00 | 5.83 | -8.81 | 250.05 | -10.03 | 145.56 | 0.3056 | 667.0 | 660.8 | |
| 19.00 | 254.40 | 9.83 | 131.97 | -7.56 | 249.84 | -10.24 | 142.49 | 0.2908 | 1225.0 | 455.1 | |
| 8.69 | -35.00 | 4.50 | -35.00 | -7.37 | 249.47 | -10.61 | 141.11 | 0.2922 | 1326.2 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -8.03 | 249.29 | -10.79 | 142.05 | 0.3027 | 327.0 | 328.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.81 | 249.01 | -11.07 | 146.45 | 0.3427 | -736.0 | -658.4 | |
| 0.00 | 2.62 | 0.00 | 1.37 | -9.05 | 248.95 | -11.13 | 143.17 | 0.3195 | 714.0 | 535.6 | |
| 21.80 | -35.00 | 11.31 | -35.00 | -7.45 | 248.97 | -11.11 | 139.97 | 0.2985 | 1297.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -12.06 | 248.71 | -11.37 | 147.70 | 0.3624 | -826.0 | -675.6 | |
| 19.90 | -35.00 | 10.35 | -35.00 | -7.67 | 248.62 | -11.46 | 139.57 | 0.3051 | 1092.9 | 999999 | |
| 0.72 | 17.82 | 0.38 | 9.31 | -8.67 | 248.59 | -11.50 | 141.56 | 0.3183 | 961.6 | 654.9 | |
| 0.00 | 12.48 | 0.00 | 6.54 | -9.21 | 248.54 | -11.54 | 142.48 | 0.3258 | -50.0 | -176.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.48 | 248.19 | -11.89 | 148.62 | 0.3863 | -673.0 | -611.2 | |
| 1.72 | -43.00 | 0.90 | -43.00 | -8.59 | 248.37 | -11.71 | 140.86 | 0.3194 | 999.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.91 | 248.26 | -11.82 | 143.11 | 0.3377 | -841.0 | -678.5 | |
| 1.72 | -35.00 | 0.89 | -35.00 | -7.08 | 248.32 | -11.76 | 137.55 | 0.3010 | 940.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -8.59 | 248.02 | -12.06 | 140.05 | 0.3231 | 442.0 | 353.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.05 | 247.65 | -12.43 | 141.98 | 0.3455 | -695.0 | -539.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.80 | 247.51 | -12.57 | 144.64 | 0.3697 | -993.0 | -786.3 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -8.41 | 247.53 | -12.56 | 138.54 | 0.3262 | 494.0 | 477.1 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -8.36 | 247.31 | -12.77 | 137.93 | 0.3279 | 694.0 | 565.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.99 | 246.88 | -13.20 | 136.21 | 0.3283 | 683.0 | 600.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.83 | 246.57 | -13.51 | 141.04 | 0.3665 | -877.0 | -714.3 | |
| 0.00 | 2.80 | 0.00 | 1.49 | -10.65 | 246.45 | -13.63 | 140.47 | 0.3654 | -1012.0 | -827.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -10.90 | 246.28 | -13.80 | 140.57 | 0.3703 | -857.0 | -691.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -12.41 | 246.14 | -13.94 | 142.78 | 0.3907 | -674.0 | -531.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.60 | 246.26 | -13.82 | 134.05 | 0.3309 | 741.0 | 636.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.75 | 246.13 | -13.95 | 139.99 | 0.3700 | -831.0 | -551.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -11.39 | 245.94 | -14.14 | 140.71 | 0.3799 | -713.0 | -580.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -10.88 | 245.93 | -14.15 | 139.82 | 0.3737 | -708.0 | -599.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -13.44 | 245.79 | -14.29 | 143.69 | 0.4072 | -523.0 | -549.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.86 | 245.45 | -14.63 | 138.84 | 0.3785 | -911.0 | -697.8 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -11.21 | 245.34 | -14.74 | 139.24 | 0.3840 | -677.0 | -499.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -2.79 | 245.18 | -14.90 | 119.65 | 0.2969 | 757.0 | 576.8 | |
| 0.00 | 2.99 | 0.00 | 1.61 | -11.46 | 244.62 | -15.46 | 138.30 | 0.3945 | -991.0 | -806.8 | |
| 0.00 | 3.71 | 0.00 | 2.00 | -11.75 | 244.44 | -15.64 | 138.47 | 0.3998 | -765.0 | -717.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.19 | 242.97 | -17.11 | 124.83 | 0.3579 | -795.0 | -606.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.84 | 241.01 | -19.07 | 123.36 | 0.3900 | -678.0 | -498.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.48 | 240.64 | -19.44 | 122.06 | 0.3920 | -662.0 | -515.9 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -7.53 | 240.07 | -20.01 | 123.52 | 0.4087 | -937.0 | -756.0 | |
| 0.00 | 2.62 | 0.00 | 1.41 | -4.24 | 239.90 | -20.18 | 116.09 | 0.3846 | -850.0 | -651.0 | |
| 0.00 | 2.71 | 0.00 | 1.46 | -4.46 | 239.77 | -20.31 | 116.44 | 0.3882 | -961.0 | -747.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -4.74 | 239.76 | -20.32 | 117.07 | 0.3904 | -771.0 | -617.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -8.30 | 238.48 | -21.60 | 123.04 | 0.4363 | -875.0 | -641.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
