SDO HMI 2014-08-01 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.38 | 555.03 | 76.23 | 333.28 | -7.40 | 228.06 | -31.47 | 112.79 | 0.5618 | 456.3 | 316.8 | |
|
previous
or next observation for the same group /

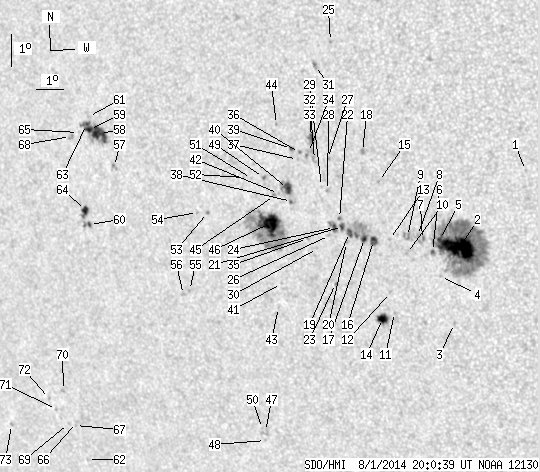

back to the solar disc SDO HMI 2014-08-01 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.18 | 234.76 | -24.77 | 113.52 | 0.4569 | 669.0 | 457.5 | |
| 40.53 | 228.80 | 23.25 | 131.18 | -7.69 | 232.37 | -27.16 | 116.19 | 0.5061 | 1245.2 | 479.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -10.09 | 232.00 | -27.53 | 120.01 | 0.5276 | 720.0 | 558.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -8.63 | 231.64 | -27.89 | 117.22 | 0.5221 | 522.0 | 380.6 | |
| 1.09 | -2.00 | 0.63 | -2.00 | -7.47 | 231.69 | -27.84 | 115.24 | 0.5139 | 830.8 | 999999 | |
| 0.63 | 2.80 | 0.37 | 1.62 | -7.86 | 231.42 | -28.11 | 115.70 | 0.5200 | 741.4 | 554.7 | |
| 0.00 | 3.26 | 0.00 | 1.89 | -7.50 | 231.10 | -28.43 | 114.81 | 0.5221 | 841.0 | 672.1 | |
| 0.00 | 2.80 | 0.00 | 1.63 | -7.38 | 230.93 | -28.60 | 114.48 | 0.5236 | 782.0 | 629.3 | |
| 0.00 | 6.69 | 0.00 | 3.90 | -7.43 | 230.58 | -28.95 | 114.29 | 0.5287 | 823.0 | 671.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -7.96 | 230.50 | -29.03 | 115.15 | 0.5330 | 442.0 | 396.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -9.85 | 229.91 | -29.62 | 117.82 | 0.5527 | 633.0 | 390.8 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -9.22 | 229.82 | -29.70 | 116.74 | 0.5497 | 684.0 | 553.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.55 | 229.93 | -29.59 | 114.02 | 0.5381 | 722.0 | 480.3 | |
| 7.15 | 9.95 | 4.27 | 5.94 | -10.06 | 229.46 | -30.07 | 117.81 | 0.5599 | 957.0 | 589.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -5.76 | 229.67 | -29.86 | 110.72 | 0.5317 | 785.0 | 622.9 | |
| 3.98 | 43.06 | 2.35 | 25.53 | -7.61 | 229.36 | -30.17 | 113.71 | 0.5461 | 971.0 | 575.9 | |
| 2.44 | -16.00 | 1.45 | -16.00 | -7.57 | 229.04 | -30.48 | 113.41 | 0.5501 | 977.3 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.54 | -4.86 | 229.15 | -30.38 | 108.79 | 0.5343 | 743.0 | 582.4 | |
| 2.44 | -16.00 | 1.45 | -16.00 | -7.41 | 228.52 | -31.01 | 112.78 | 0.5562 | 909.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -7.73 | 228.39 | -31.14 | 113.22 | 0.5597 | 693.0 | 490.4 | |
| 1.81 | -16.00 | 1.08 | -16.00 | -7.23 | 228.28 | -31.24 | 112.32 | 0.5584 | 935.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -6.99 | 228.19 | -31.33 | 111.86 | 0.5582 | 863.0 | 741.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -9.04 | 227.87 | -31.66 | 114.99 | 0.5740 | 675.0 | 579.6 | |
| 1.72 | 7.24 | 1.03 | 4.33 | -7.28 | 227.99 | -31.54 | 112.21 | 0.5625 | 875.5 | 639.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -1.53 | 228.13 | -31.40 | 102.25 | 0.5350 | -759.0 | -663.8 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -7.54 | 227.79 | -31.74 | 112.51 | 0.5666 | 681.0 | 568.3 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -5.14 | 227.89 | -31.64 | 108.53 | 0.5532 | 495.0 | 532.8 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -6.14 | 227.82 | -31.70 | 110.19 | 0.5588 | 809.0 | 553.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -6.02 | 227.62 | -31.91 | 109.88 | 0.5611 | 611.0 | 468.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -7.97 | 227.32 | -32.21 | 112.90 | 0.5752 | 610.0 | 423.4 | |
| 0.00 | 3.08 | 0.00 | 1.82 | -2.29 | 227.58 | -31.95 | 103.38 | 0.5456 | -876.0 | -721.4 | |
| 0.00 | 3.26 | 0.00 | 1.94 | -5.20 | 227.42 | -32.11 | 108.36 | 0.5599 | 433.0 | 487.5 | |
| 1.90 | 5.43 | 1.13 | 3.24 | -4.52 | 227.34 | -32.18 | 107.17 | 0.5578 | -920.7 | -718.9 | |
| 0.00 | 4.79 | 0.00 | 2.87 | -4.99 | 227.21 | -32.32 | 107.90 | 0.5618 | 7.0 | 155.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -7.68 | 226.98 | -32.55 | 112.21 | 0.5781 | 692.0 | 633.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -5.01 | 226.88 | -32.64 | 107.75 | 0.5663 | 666.0 | 456.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -5.23 | 226.80 | -32.73 | 108.07 | 0.5685 | 698.0 | 592.4 | |
| 0.00 | 2.35 | 0.00 | 1.43 | -6.55 | 226.49 | -33.04 | 110.08 | 0.5789 | 724.0 | 681.7 | |
| 0.72 | 2.35 | 0.44 | 1.42 | -4.90 | 226.60 | -32.93 | 107.41 | 0.5698 | 739.6 | 515.3 | |
| 5.52 | 12.30 | 3.35 | 7.46 | -6.15 | 226.37 | -33.16 | 109.36 | 0.5785 | 948.1 | 630.2 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -9.15 | 225.88 | -33.65 | 113.82 | 0.6002 | -420.0 | -291.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -6.33 | 226.03 | -33.50 | 109.45 | 0.5839 | 644.0 | 518.9 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -9.92 | 225.68 | -33.85 | 114.87 | 0.6070 | -422.0 | -339.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -4.19 | 226.09 | -33.44 | 105.95 | 0.5737 | -713.0 | -603.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -6.40 | 225.87 | -33.65 | 109.48 | 0.5863 | 718.0 | 582.6 | |
| 29.67 | 110.28 | 18.24 | 67.94 | -7.29 | 225.62 | -33.91 | 110.75 | 0.5940 | 950.7 | 205.6 | |
| 0.00 | 4.79 | 0.00 | 3.10 | -13.93 | 224.60 | -34.93 | 119.95 | 0.6437 | -708.0 | -611.2 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -14.22 | 224.54 | -34.98 | 120.32 | 0.6461 | -590.0 | -470.1 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -5.86 | 225.51 | -34.02 | 108.41 | 0.5887 | 757.0 | 653.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -13.84 | 224.50 | -35.03 | 119.76 | 0.6442 | -600.0 | -612.3 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -5.92 | 225.06 | -34.47 | 108.26 | 0.5950 | 536.0 | 526.7 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -5.90 | 224.76 | -34.76 | 108.09 | 0.5989 | 459.0 | 379.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -7.08 | 223.31 | -36.22 | 109.17 | 0.6230 | 748.0 | 583.0 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -7.10 | 222.92 | -36.60 | 109.01 | 0.6281 | 428.0 | 360.1 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -9.58 | 222.34 | -37.19 | 112.37 | 0.6468 | -733.0 | -647.2 | |
| 0.00 | 1.99 | 0.00 | 1.30 | -9.72 | 222.08 | -37.44 | 112.43 | 0.6506 | -636.0 | -535.8 | |
| 0.00 | 2.71 | 0.00 | 1.79 | -5.87 | 219.80 | -39.73 | 105.75 | 0.6629 | -779.0 | -623.1 | |
| 13.84 | 33.93 | 9.17 | 22.54 | -4.88 | 219.28 | -40.25 | 104.11 | 0.6661 | -874.6 | -409.0 | |
| 4.43 | -58.00 | 2.95 | -58.00 | -4.79 | 218.88 | -40.65 | 103.82 | 0.6708 | -739.0 | 999999 | |
| 1.18 | 3.98 | 0.80 | 2.70 | -7.75 | 218.59 | -40.94 | 107.94 | 0.6847 | -619.3 | -328.8 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -4.38 | 218.87 | -40.66 | 103.23 | 0.6696 | -485.0 | -416.9 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -15.32 | 217.11 | -42.42 | 117.25 | 0.7341 | -410.0 | -434.2 | |
| 2.44 | -58.00 | 1.63 | -58.00 | -4.64 | 218.77 | -40.76 | 103.57 | 0.6717 | -673.7 | 999999 | |
| 3.89 | 7.15 | 2.64 | 4.85 | -7.33 | 218.48 | -41.05 | 107.29 | 0.6844 | 718.4 | 525.6 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -4.91 | 218.43 | -41.10 | 103.83 | 0.6768 | -193.0 | -157.7 | |
| 0.00 | 2.08 | 0.00 | 1.50 | -14.14 | 216.93 | -42.60 | 115.67 | 0.7305 | -648.0 | -471.0 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -14.24 | 216.86 | -42.67 | 115.76 | 0.7317 | -475.0 | -374.9 | |
| 0.00 | 2.62 | 0.00 | 1.77 | -5.05 | 218.09 | -41.44 | 103.92 | 0.6815 | -655.0 | -422.9 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -14.20 | 216.57 | -42.96 | 115.56 | 0.7346 | -420.0 | -339.4 | |
| 0.00 | 1.72 | 0.00 | 1.24 | -13.14 | 216.60 | -42.93 | 114.22 | 0.7296 | -538.0 | -558.8 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -13.78 | 216.15 | -43.38 | 114.82 | 0.7372 | -536.0 | -440.2 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -13.44 | 215.93 | -43.60 | 114.29 | 0.7382 | -470.0 | -398.1 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -14.42 | 214.01 | -45.52 | 114.61 | 0.7623 | -599.0 | -547.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
