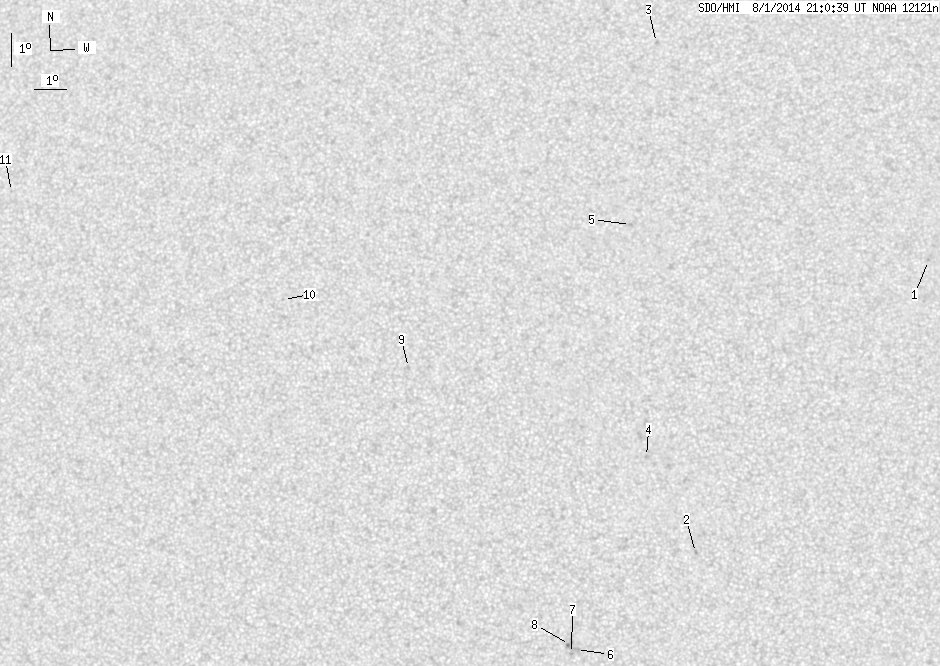

SDO HMI 2014-08-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.47 | 0.00 | 9.28 | 10.01 | 255.68 | -3.30 | 202.54 | 0.1340 | 506.9 | 522.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.78 | 267.19 | 8.21 | 321.67 | 0.2227 | -847.0 | -715.5 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 6.92 | 259.76 | 0.79 | 324.46 | 0.0235 | 949.0 | 747.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 22.67 | 258.55 | -0.42 | 1.33 | 0.2911 | -851.0 | -651.2 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 9.84 | 258.26 | -0.72 | 9.98 | 0.0714 | 898.0 | 721.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 16.96 | 257.74 | -1.24 | 6.10 | 0.1952 | 833.0 | 681.5 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 3.97 | 256.12 | -2.85 | 123.10 | 0.0595 | 822.0 | 688.6 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 3.84 | 255.97 | -3.00 | 123.40 | 0.0629 | 870.0 | 718.2 | |
| 0.00 | 3.17 | 0.00 | 1.57 | 4.12 | 255.91 | -3.06 | 119.10 | 0.0613 | 870.0 | 879.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.51 | 250.81 | -8.16 | 49.72 | 0.1825 | 790.0 | 625.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.53 | 246.75 | -12.22 | 53.14 | 0.2572 | 738.0 | 531.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 17.62 | 237.47 | -21.50 | 58.84 | 0.4099 | 504.0 | 339.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
