SDO HMI 2014-08-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.40 | 472.84 | 54.36 | 244.59 | -7.77 | 249.53 | -9.45 | 145.57 | 0.2873 | 570.7 | 327.5 | |
|
previous
or next observation for the same group /

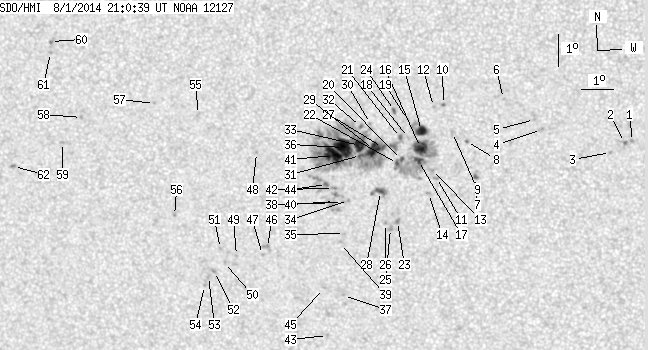

back to the solar disc SDO HMI 2014-08-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.18 | 257.87 | -1.10 | 175.16 | 0.2269 | 984.0 | 893.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.21 | 257.63 | -1.35 | 174.10 | 0.2278 | 1083.0 | 860.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.52 | 257.20 | -1.78 | 172.42 | 0.2339 | 944.0 | 733.4 | |
| 0.00 | 2.80 | 0.00 | 1.43 | -6.81 | 255.08 | -3.89 | 162.88 | 0.2298 | 739.0 | 663.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.50 | 254.87 | -4.10 | 161.58 | 0.2258 | 769.0 | 684.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.86 | 253.93 | -5.05 | 156.59 | 0.2212 | 695.0 | 568.9 | |
| 1.00 | 3.26 | 0.51 | 1.67 | -8.33 | 253.03 | -5.94 | 157.24 | 0.2658 | -975.6 | -721.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.21 | 252.77 | -6.20 | 154.53 | 0.2503 | -785.0 | -627.1 | |
| 0.00 | 3.08 | 0.00 | 1.57 | -6.93 | 252.34 | -6.63 | 152.50 | 0.2493 | -438.0 | -77.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.06 | 252.08 | -6.89 | 149.83 | 0.2385 | 1037.0 | 862.2 | |
| 0.00 | 2.62 | 0.00 | 1.35 | -8.34 | 251.83 | -7.15 | 153.23 | 0.2745 | 764.0 | 659.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.13 | 251.77 | -7.20 | 148.86 | 0.2421 | 778.0 | 731.6 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -8.09 | 251.71 | -7.27 | 152.42 | 0.2717 | 736.0 | 602.8 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -8.85 | 251.57 | -7.41 | 153.23 | 0.2841 | 887.0 | 649.6 | |
| 7.42 | 15.56 | 3.80 | 7.97 | -6.88 | 251.39 | -7.58 | 149.11 | 0.2564 | 1270.4 | 850.3 | |
| 13.48 | 82.42 | 6.92 | 42.40 | -7.41 | 251.35 | -7.62 | 150.02 | 0.2645 | 1196.8 | 418.8 | |
| 3.89 | -16.00 | 2.00 | -16.00 | -7.82 | 251.28 | -7.69 | 150.56 | 0.2710 | 976.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -7.10 | 250.98 | -7.99 | 148.23 | 0.2632 | 839.0 | 620.2 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.54 | 250.96 | -8.01 | 147.00 | 0.2554 | 972.0 | 822.2 | |
| 1.18 | -16.00 | 0.61 | -16.00 | -7.79 | 250.75 | -8.22 | 148.86 | 0.2751 | 890.6 | 999999 | |
| 0.90 | 261.46 | 0.46 | 135.14 | -7.11 | 250.73 | -8.24 | 147.45 | 0.2655 | 1162.3 | 457.6 | |
| 1.27 | -16.00 | 0.65 | -16.00 | -7.92 | 250.62 | -8.35 | 148.71 | 0.2781 | 641.4 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.41 | -9.74 | 250.58 | -8.39 | 151.72 | 0.3049 | -1047.0 | -832.5 | |
| 0.63 | 2.62 | 0.32 | 1.34 | -6.27 | 250.56 | -8.41 | 145.11 | 0.2552 | -829.7 | -604.3 | |
| 0.00 | 3.08 | 0.00 | 1.60 | -9.97 | 250.36 | -8.62 | 151.44 | 0.3100 | -899.0 | -763.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.81 | 250.20 | -8.77 | 150.77 | 0.3089 | -1032.0 | -859.1 | |
| 1.27 | -21.00 | 0.65 | -21.00 | -7.43 | 250.17 | -8.80 | 146.36 | 0.2752 | 1087.9 | 999999 | |
| 2.80 | 10.40 | 1.45 | 5.39 | -8.81 | 250.08 | -8.90 | 148.70 | 0.2955 | 882.9 | 625.9 | |
| 12.85 | -21.00 | 6.62 | -21.00 | -7.49 | 249.89 | -9.08 | 145.66 | 0.2787 | 1309.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.68 | 249.81 | -9.16 | 143.71 | 0.2683 | 1024.0 | 807.3 | |
| 1.54 | -21.00 | 0.79 | -21.00 | -7.69 | 249.48 | -9.49 | 144.87 | 0.2853 | 987.9 | 999999 | |
| 0.36 | -21.00 | 0.19 | -21.00 | -6.78 | 249.50 | -9.47 | 143.01 | 0.2728 | 795.0 | 999999 | |
| 9.86 | -21.00 | 5.09 | -21.00 | -7.37 | 249.46 | -9.52 | 144.16 | 0.2813 | 1325.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.11 | 249.07 | -9.90 | 146.46 | 0.3087 | 726.0 | 497.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.15 | 248.91 | -10.06 | 147.86 | 0.3247 | -768.0 | -561.8 | |
| 23.52 | -21.00 | 12.16 | -21.00 | -7.45 | 248.96 | -10.02 | 142.90 | 0.2872 | 1289.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.12 | 248.81 | -10.17 | 150.63 | 0.3534 | -821.0 | -684.1 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -9.17 | 248.88 | -10.09 | 146.07 | 0.3114 | 501.0 | 369.5 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -10.47 | 248.77 | -10.20 | 148.03 | 0.3303 | -692.0 | -737.5 | |
| 0.00 | 14.66 | 0.00 | 7.64 | -9.14 | 248.63 | -10.34 | 145.37 | 0.3133 | 253.0 | 131.5 | |
| 22.62 | -21.00 | 11.72 | -21.00 | -7.70 | 248.64 | -10.33 | 142.57 | 0.2938 | 1063.1 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.37 | -8.74 | 248.61 | -10.36 | 144.56 | 0.3080 | 1063.0 | 799.8 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -13.42 | 248.24 | -10.73 | 151.09 | 0.3762 | -833.0 | -582.2 | |
| 0.81 | 11.13 | 0.42 | 5.79 | -8.61 | 248.39 | -10.58 | 143.77 | 0.3084 | 1044.3 | 648.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -11.91 | 248.18 | -10.79 | 148.84 | 0.3555 | -681.0 | -697.7 | |
| 0.00 | 3.80 | 0.00 | 2.01 | -10.64 | 246.46 | -12.51 | 142.86 | 0.3541 | -927.0 | -809.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.87 | 246.29 | -12.68 | 142.88 | 0.3587 | -880.0 | -785.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.65 | 246.23 | -12.74 | 136.53 | 0.3192 | 950.0 | 750.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -10.92 | 245.47 | -13.51 | 141.21 | 0.3677 | -886.0 | -666.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -11.15 | 245.07 | -13.90 | 140.80 | 0.3746 | -789.0 | -607.9 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -10.71 | 244.97 | -14.01 | 139.82 | 0.3702 | -741.0 | -593.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -11.44 | 244.74 | -14.24 | 140.64 | 0.3817 | -910.0 | -708.4 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -11.61 | 244.53 | -14.44 | 140.52 | 0.3858 | -868.0 | -655.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.90 | 244.39 | -14.58 | 140.72 | 0.3908 | -796.0 | -631.8 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -6.51 | 244.43 | -14.54 | 130.16 | 0.3278 | -685.0 | -547.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.70 | 243.54 | -15.43 | 135.20 | 0.3737 | -895.0 | -688.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.20 | 243.05 | -15.92 | 126.87 | 0.3424 | -769.0 | -622.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.71 | 240.69 | -18.28 | 124.23 | 0.3784 | -887.0 | -735.8 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -7.51 | 240.04 | -18.93 | 125.00 | 0.3943 | -879.0 | -678.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -4.38 | 239.77 | -19.20 | 117.62 | 0.3717 | -876.0 | -808.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -4.72 | 239.76 | -19.21 | 118.42 | 0.3745 | -814.0 | -657.2 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -8.32 | 238.40 | -20.57 | 124.39 | 0.4231 | -1041.0 | -805.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
