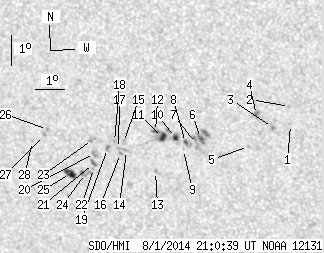

SDO HMI 2014-08-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.01 | 92.94 | 10.01 | 54.38 | -18.84 | 238.10 | -20.87 | 140.77 | 0.5339 | -140.0 | -8.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.25 | -17.95 | 243.09 | -15.88 | 146.91 | 0.4788 | 637.0 | 523.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.35 | 243.11 | -15.86 | 146.22 | 0.4711 | 806.0 | 641.8 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -18.07 | 242.48 | -16.49 | 146.06 | 0.4854 | 914.0 | 742.8 | |
| 0.00 | 4.34 | 0.00 | 2.46 | -17.65 | 241.99 | -16.99 | 144.77 | 0.4845 | 1020.0 | 773.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -18.73 | 241.61 | -17.37 | 145.49 | 0.5010 | 529.0 | 442.2 | |
| 1.18 | 10.04 | 0.68 | 5.78 | -18.51 | 240.01 | -18.96 | 142.86 | 0.5125 | 1020.0 | 791.2 | |
| 0.00 | 5.61 | 0.00 | 3.24 | -18.69 | 239.85 | -19.12 | 142.85 | 0.5159 | 688.0 | 644.0 | |
| 1.18 | 4.52 | 0.68 | 2.62 | -18.67 | 239.48 | -19.49 | 142.30 | 0.5190 | 828.1 | 593.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -18.90 | 239.38 | -19.59 | 142.46 | 0.5226 | 446.0 | 409.7 | |
| 2.35 | 4.89 | 1.36 | 2.83 | -18.51 | 239.16 | -19.81 | 141.66 | 0.5202 | 989.1 | 698.2 | |
| 4.07 | 14.66 | 2.36 | 8.51 | -18.53 | 238.71 | -20.26 | 141.06 | 0.5245 | 783.8 | 309.7 | |
| 1.18 | -11.00 | 0.68 | -11.00 | -18.33 | 238.50 | -20.48 | 140.53 | 0.5244 | 572.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.68 | 238.32 | -20.65 | 141.96 | 0.5410 | -839.0 | -706.5 | |
| 0.00 | 2.71 | 0.00 | 1.60 | -19.01 | 237.41 | -21.56 | 139.94 | 0.5421 | -876.0 | -632.8 | |
| 0.00 | 3.44 | 0.00 | 2.02 | -18.74 | 237.34 | -21.63 | 139.52 | 0.5398 | -445.0 | -359.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -19.12 | 237.19 | -21.79 | 139.79 | 0.5453 | -801.0 | -677.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -18.95 | 237.14 | -21.83 | 139.53 | 0.5440 | -880.0 | -728.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -18.72 | 237.03 | -21.94 | 139.10 | 0.5426 | -838.0 | -679.9 | |
| 0.00 | 2.53 | 0.00 | 1.50 | -18.97 | 236.76 | -22.22 | 139.06 | 0.5478 | -1000.0 | -857.6 | |
| 0.00 | 3.89 | 0.00 | 2.31 | -19.15 | 236.28 | -22.70 | 138.70 | 0.5544 | -833.0 | -745.0 | |
| 0.90 | 3.35 | 0.54 | 2.00 | -19.49 | 236.19 | -22.78 | 139.02 | 0.5587 | -1006.3 | -729.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -19.66 | 236.16 | -22.81 | 139.20 | 0.5608 | -431.0 | -527.8 | |
| 0.00 | 2.99 | 0.00 | 1.77 | -18.69 | 236.27 | -22.70 | 138.10 | 0.5495 | -782.0 | -712.3 | |
| 0.00 | 6.24 | 0.00 | 3.74 | -19.84 | 235.86 | -23.12 | 139.04 | 0.5656 | -671.0 | -664.3 | |
| 6.15 | 8.41 | 3.71 | 5.07 | -19.86 | 235.32 | -23.65 | 138.44 | 0.5708 | -844.3 | -518.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -18.42 | 234.74 | -24.24 | 135.92 | 0.5619 | -789.0 | -707.5 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -18.62 | 234.60 | -24.37 | 136.02 | 0.5653 | -798.0 | -613.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -18.84 | 234.14 | -24.83 | 135.79 | 0.5721 | -563.0 | -402.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
