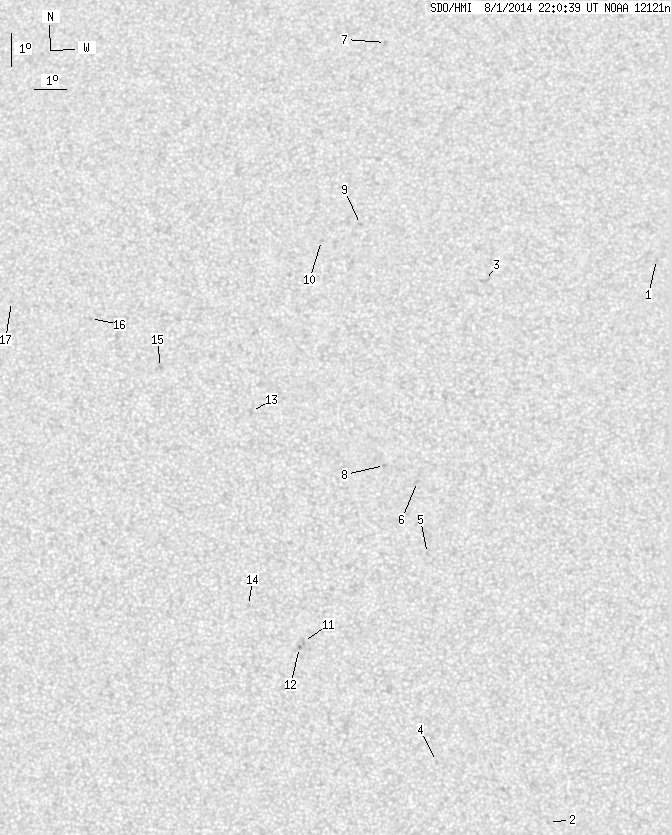

SDO HMI 2014-08-01 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.82 | 0.00 | 12.92 | 10.89 | 257.27 | -1.15 | 256.17 | 0.1378 | 531.6 | 345.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.84 | 267.15 | 8.73 | 320.16 | 0.2289 | -860.0 | -659.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -1.30 | 263.49 | 5.07 | 215.49 | 0.1527 | 70.0 | 100.8 | |
| 0.00 | 3.80 | 0.00 | 1.91 | 15.26 | 261.70 | 3.28 | 341.38 | 0.1737 | -697.0 | -624.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 0.59 | 260.07 | 1.66 | 197.55 | 0.0962 | 736.0 | 545.7 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.92 | 259.82 | 1.40 | 308.15 | 0.0310 | 895.0 | 708.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.11 | 259.52 | 1.10 | 341.66 | 0.0606 | 909.0 | 758.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 22.71 | 258.56 | 0.14 | 359.55 | 0.2916 | -826.0 | -703.9 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.60 | 258.51 | 0.09 | 358.71 | 0.0661 | 936.0 | 731.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 17.00 | 257.75 | -0.67 | 3.28 | 0.1949 | 914.0 | 746.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 16.50 | 256.52 | -1.90 | 9.74 | 0.1888 | 850.0 | 691.5 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 4.25 | 256.03 | -2.39 | 123.53 | 0.0502 | 817.0 | 715.5 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 4.07 | 255.91 | -2.51 | 125.11 | 0.0537 | 1062.0 | 961.3 | |
| 0.00 | 3.17 | 0.00 | 1.58 | 11.24 | 254.38 | -4.04 | 36.16 | 0.1176 | 687.0 | 427.2 | |
| 0.00 | 1.00 | 0.00 | 0.49 | 5.34 | 254.34 | -4.08 | 96.80 | 0.0716 | 861.0 | 631.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 12.56 | 251.52 | -6.90 | 44.86 | 0.1671 | 920.0 | 772.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.04 | 249.26 | -9.16 | 47.01 | 0.2121 | 936.0 | 705.2 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 14.52 | 246.71 | -11.70 | 52.07 | 0.2501 | 827.0 | 636.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
