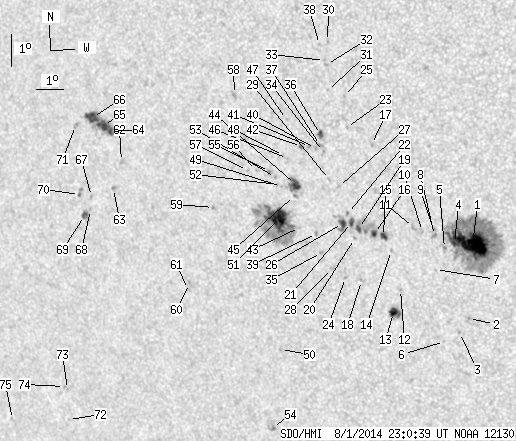

SDO HMI 2014-08-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.22 | 535.33 | 72.77 | 315.36 | -7.28 | 228.11 | -29.75 | 113.88 | 0.5387 | 456.0 | 345.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.81 | 224.66 | 23.06 | 126.85 | -7.75 | 232.45 | -25.41 | 117.90 | 0.4831 | 1244.6 | 509.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -10.09 | 232.14 | -25.73 | 121.75 | 0.5047 | 831.0 | 695.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -10.55 | 231.78 | -26.08 | 122.18 | 0.5127 | 647.0 | 587.8 | |
| 2.62 | -1.00 | 1.49 | -1.00 | -7.75 | 231.84 | -26.03 | 117.32 | 0.4914 | 752.9 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.65 | -7.92 | 231.48 | -26.38 | 117.31 | 0.4973 | 834.0 | 575.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -10.86 | 231.24 | -26.63 | 122.15 | 0.5220 | 639.0 | 581.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -8.59 | 231.12 | -26.74 | 118.19 | 0.5068 | 246.0 | 201.8 | |
| 0.00 | 2.44 | 0.00 | 1.39 | -7.53 | 231.17 | -26.70 | 116.33 | 0.4990 | 816.0 | 679.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.34 | 231.15 | -26.72 | 115.97 | 0.4980 | 795.0 | 685.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -7.42 | 230.76 | -27.11 | 115.79 | 0.5038 | 771.0 | 570.4 | |
| 0.00 | 2.53 | 0.00 | 1.45 | -7.31 | 230.46 | -27.41 | 115.33 | 0.5072 | 664.0 | 610.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.28 | 229.85 | -28.02 | 118.25 | 0.5283 | 847.0 | 637.1 | |
| 5.34 | 10.22 | 3.13 | 6.00 | -10.02 | 229.54 | -28.33 | 119.21 | 0.5375 | 982.4 | 703.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.07 | 229.64 | -28.23 | 115.99 | 0.5231 | 650.0 | 490.2 | |
| 2.80 | 5.43 | 1.63 | 3.15 | -7.64 | 229.39 | -28.48 | 115.06 | 0.5237 | 974.7 | 744.9 | |
| 2.53 | 29.32 | 1.48 | 17.11 | -7.56 | 229.08 | -28.79 | 114.68 | 0.5274 | 1005.9 | 579.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -4.79 | 229.15 | -28.72 | 109.76 | 0.5108 | 838.0 | 728.8 | |
| 0.00 | 1.99 | 0.00 | 1.17 | -9.06 | 228.50 | -29.37 | 116.77 | 0.5445 | 746.0 | 635.7 | |
| 2.35 | -16.00 | 1.38 | -16.00 | -7.43 | 228.53 | -29.34 | 114.03 | 0.5340 | 940.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -7.75 | 228.36 | -29.50 | 114.46 | 0.5382 | 642.0 | 537.9 | |
| 2.44 | -16.00 | 1.43 | -16.00 | -7.26 | 228.30 | -29.57 | 113.56 | 0.5361 | 869.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -6.98 | 228.17 | -29.69 | 113.00 | 0.5362 | 807.0 | 700.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -4.31 | 228.29 | -29.57 | 108.33 | 0.5205 | -537.0 | -424.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -9.00 | 227.94 | -29.93 | 116.22 | 0.5514 | 722.0 | 530.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -3.36 | 228.26 | -29.60 | 106.55 | 0.5165 | -704.0 | -590.2 | |
| 3.62 | 10.68 | 2.13 | 6.28 | -7.31 | 227.97 | -29.89 | 113.41 | 0.5408 | 882.1 | 577.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -6.16 | 227.91 | -29.95 | 111.38 | 0.5352 | 915.0 | 678.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -8.74 | 227.50 | -30.37 | 115.46 | 0.5556 | 604.0 | 441.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -5.96 | 227.61 | -30.26 | 110.82 | 0.5383 | 399.0 | 396.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -1.69 | 227.71 | -30.16 | 103.15 | 0.5177 | -696.0 | -562.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -3.20 | 227.67 | -30.20 | 105.93 | 0.5243 | -597.0 | -503.2 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -2.40 | 227.66 | -30.21 | 104.45 | 0.5212 | -750.0 | -634.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -2.28 | 227.59 | -30.28 | 104.19 | 0.5217 | -958.0 | -697.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -5.10 | 227.44 | -30.42 | 109.21 | 0.5362 | 700.0 | 532.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -8.26 | 227.15 | -30.72 | 114.41 | 0.5573 | 745.0 | 667.0 | |
| 2.08 | 4.25 | 1.22 | 2.49 | -4.57 | 227.36 | -30.50 | 108.24 | 0.5348 | -930.9 | -738.7 | |
| 0.00 | 2.53 | 0.00 | 1.49 | -4.92 | 227.35 | -30.52 | 108.83 | 0.5367 | -196.0 | -192.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -1.80 | 227.43 | -30.44 | 103.21 | 0.5222 | -599.0 | -498.0 | |
| 0.00 | 1.81 | 0.00 | 1.08 | -7.67 | 227.02 | -30.85 | 113.34 | 0.5556 | 753.0 | 641.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -5.02 | 227.16 | -30.70 | 108.90 | 0.5397 | 523.0 | 336.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -4.97 | 226.95 | -30.91 | 108.68 | 0.5424 | 583.0 | 431.4 | |
| 0.00 | 2.26 | 0.00 | 1.34 | -4.98 | 226.67 | -31.20 | 108.54 | 0.5464 | 786.0 | 652.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.51 | 226.42 | -31.45 | 112.68 | 0.5627 | 294.0 | 276.5 | |
| 7.33 | 13.03 | 4.36 | 7.76 | -6.18 | 226.38 | -31.49 | 110.41 | 0.5562 | 932.6 | 679.1 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -6.52 | 226.32 | -31.55 | 110.96 | 0.5588 | 802.0 | 707.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.38 | 226.14 | -31.73 | 108.92 | 0.5556 | 614.0 | 548.6 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -4.17 | 226.17 | -31.70 | 106.85 | 0.5497 | -701.0 | -489.9 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -5.30 | 226.00 | -31.86 | 108.69 | 0.5571 | 311.0 | 425.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -6.26 | 225.87 | -32.00 | 110.25 | 0.5636 | 558.0 | 459.5 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -11.41 | 225.31 | -32.55 | 118.04 | 0.5998 | -587.0 | -540.2 | |
| 25.79 | 108.76 | 15.54 | 65.67 | -7.27 | 225.68 | -32.19 | 111.80 | 0.5712 | 981.8 | 280.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -6.21 | 225.73 | -32.14 | 110.07 | 0.5652 | 484.0 | 375.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -6.00 | 225.67 | -32.20 | 109.68 | 0.5649 | 603.0 | 509.8 | |
| 0.00 | 3.53 | 0.00 | 2.23 | -13.95 | 224.64 | -33.23 | 121.22 | 0.6241 | -835.0 | -658.9 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -5.82 | 225.46 | -32.40 | 109.27 | 0.5669 | 738.0 | 638.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -5.82 | 224.99 | -32.88 | 108.99 | 0.5733 | 562.0 | 515.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -5.83 | 224.66 | -33.21 | 108.83 | 0.5778 | 487.0 | 396.9 | |
| 0.00 | 2.80 | 0.00 | 1.69 | -3.50 | 224.31 | -33.55 | 104.77 | 0.5727 | -811.0 | -580.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -7.06 | 223.31 | -34.56 | 110.05 | 0.6015 | 706.0 | 608.5 | |
| 0.00 | 2.08 | 0.00 | 1.32 | -9.51 | 222.15 | -35.72 | 113.12 | 0.6283 | -804.0 | -674.7 | |
| 0.00 | 1.90 | 0.00 | 1.21 | -9.70 | 222.08 | -35.78 | 113.37 | 0.6301 | -707.0 | -506.2 | |
| 0.00 | 2.26 | 0.00 | 1.46 | -5.84 | 219.91 | -37.96 | 106.48 | 0.6403 | -256.0 | -288.8 | |
| 0.00 | 2.08 | 0.00 | 1.35 | -6.70 | 219.52 | -38.35 | 107.59 | 0.6487 | 653.0 | 428.9 | |
| 2.80 | 35.29 | 1.81 | 22.85 | -4.93 | 219.55 | -38.32 | 104.96 | 0.6416 | -873.9 | -443.8 | |
| 9.23 | -64.00 | 5.96 | -64.00 | -4.76 | 219.29 | -38.58 | 104.60 | 0.6444 | -881.6 | 999999 | |
| 9.41 | -64.00 | 6.11 | -64.00 | -4.54 | 218.87 | -39.00 | 104.10 | 0.6490 | -721.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -7.01 | 218.62 | -39.24 | 107.63 | 0.6611 | -556.0 | -416.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -7.42 | 218.54 | -39.33 | 108.19 | 0.6638 | 440.0 | 394.1 | |
| 2.62 | 5.52 | 1.74 | 3.66 | -7.62 | 218.28 | -39.59 | 108.36 | 0.6678 | 766.0 | 645.8 | |
| 0.45 | 3.26 | 0.30 | 2.16 | -6.98 | 218.15 | -39.72 | 107.38 | 0.6669 | 362.8 | -8.7 | |
| 0.00 | 2.80 | 0.00 | 1.84 | -4.83 | 218.18 | -39.69 | 104.27 | 0.6589 | -655.0 | -423.9 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -14.20 | 216.52 | -41.35 | 116.42 | 0.7174 | -427.0 | -368.9 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -13.23 | 216.69 | -41.18 | 115.24 | 0.7109 | -767.0 | -602.6 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -13.14 | 216.58 | -41.28 | 115.07 | 0.7116 | -622.0 | -532.6 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -14.37 | 214.08 | -43.78 | 115.39 | 0.7442 | -585.0 | -495.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
