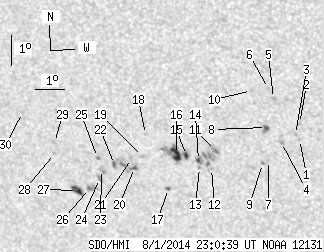

SDO HMI 2014-08-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.52 | 111.13 | 12.54 | 64.33 | -18.70 | 238.45 | -19.42 | 142.61 | 0.5191 | 94.6 | 55.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.61 | -17.91 | 243.08 | -14.78 | 148.72 | 0.4695 | 719.0 | 564.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.38 | 243.13 | -14.74 | 148.17 | 0.4622 | 875.0 | 686.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.75 | 242.97 | -14.90 | 148.32 | 0.4683 | 777.0 | 597.1 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -18.03 | 242.48 | -15.39 | 147.83 | 0.4759 | 895.0 | 755.7 | |
| 0.00 | 2.44 | 0.00 | 1.36 | -16.58 | 242.34 | -15.53 | 145.82 | 0.4585 | 886.0 | 631.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -16.25 | 242.20 | -15.66 | 145.17 | 0.4556 | 744.0 | 533.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.64 | 241.99 | -15.88 | 147.74 | 0.4877 | 664.0 | 618.3 | |
| 1.45 | 4.34 | 0.81 | 2.44 | -17.54 | 242.02 | -15.84 | 146.49 | 0.4735 | 931.1 | 733.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -18.75 | 241.78 | -16.09 | 147.52 | 0.4907 | 708.0 | 622.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -16.33 | 241.64 | -16.23 | 144.32 | 0.4617 | 705.0 | 525.0 | |
| 0.00 | 4.25 | 0.00 | 2.43 | -18.36 | 240.24 | -17.63 | 144.66 | 0.4989 | 1011.0 | 853.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -18.97 | 240.04 | -17.83 | 145.09 | 0.5080 | 619.0 | 530.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -18.95 | 239.63 | -18.23 | 144.47 | 0.5113 | 560.0 | 465.0 | |
| 1.27 | 15.20 | 0.73 | 8.72 | -18.71 | 239.63 | -18.24 | 144.18 | 0.5085 | 901.6 | 746.0 | |
| 2.17 | 23.89 | 1.25 | 13.77 | -18.56 | 239.24 | -18.63 | 143.42 | 0.5102 | 983.3 | 482.4 | |
| 8.14 | -15.00 | 4.69 | -15.00 | -18.54 | 238.90 | -18.97 | 142.90 | 0.5129 | 803.8 | 999999 | |
| 0.81 | 1.99 | 0.48 | 1.16 | -19.69 | 238.49 | -19.38 | 143.72 | 0.5300 | -859.9 | -721.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -17.91 | 237.92 | -19.94 | 140.72 | 0.5147 | 459.0 | 385.3 | |
| 0.00 | 2.17 | 0.00 | 1.26 | -18.65 | 237.73 | -20.14 | 141.40 | 0.5249 | -392.0 | -343.9 | |
| 0.81 | 16.65 | 0.48 | 9.74 | -19.03 | 237.41 | -20.46 | 141.43 | 0.5321 | -853.6 | -688.1 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -18.73 | 237.34 | -20.53 | 140.97 | 0.5294 | -629.0 | -598.0 | |
| 0.90 | -20.00 | 0.53 | -20.00 | -18.95 | 236.73 | -21.14 | 140.43 | 0.5376 | -892.0 | 999999 | |
| 0.00 | 3.35 | 0.00 | 1.97 | -19.14 | 236.25 | -21.61 | 140.05 | 0.5441 | -818.0 | -706.4 | |
| 0.00 | 2.44 | 0.00 | 1.45 | -19.44 | 236.14 | -21.73 | 140.28 | 0.5484 | -1032.0 | -765.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -18.74 | 236.17 | -21.70 | 139.44 | 0.5405 | -792.0 | -716.3 | |
| 0.63 | 6.79 | 0.38 | 4.03 | -19.79 | 235.74 | -22.13 | 140.21 | 0.5559 | -850.0 | -659.6 | |
| 5.34 | 7.69 | 3.19 | 4.59 | -19.88 | 235.31 | -22.56 | 139.78 | 0.5609 | -845.2 | -539.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -18.66 | 234.68 | -23.18 | 137.49 | 0.5541 | -711.0 | -566.4 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -18.29 | 234.74 | -23.13 | 137.08 | 0.5498 | -697.0 | -617.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -17.34 | 233.76 | -24.11 | 134.65 | 0.5502 | -628.0 | -503.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
