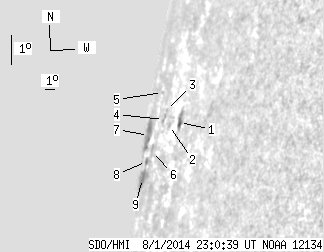

SDO HMI 2014-08-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.92 | 55.66 | 102.05 | 286.04 | 9.21 | 172.73 | -85.14 | 81.28 | 0.9949 | 77.8 | 91.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.53 | 8.69 | 6.45 | 22.13 | 10.51 | 178.18 | -79.68 | 80.40 | 0.9819 | -444.9 | -360.0 | |
| 0.00 | 2.53 | 0.00 | 7.63 | 10.26 | 176.54 | -81.33 | 80.54 | 0.9869 | 316.0 | 234.6 | |
| 0.00 | 1.00 | 0.00 | 3.33 | 10.61 | 175.39 | -82.48 | 80.10 | 0.9898 | 381.0 | 318.6 | |
| 0.00 | 3.53 | 0.00 | 12.29 | 10.30 | 175.09 | -82.77 | 80.39 | 0.9906 | 311.0 | 326.5 | |
| 0.00 | 1.00 | 0.00 | 4.16 | 10.99 | 173.63 | -84.24 | 79.58 | 0.9936 | 340.0 | 284.0 | |
| 0.00 | 5.34 | 0.00 | 23.20 | 9.17 | 173.73 | -84.14 | 81.42 | 0.9937 | 385.0 | 421.4 | |
| 8.87 | 18.37 | 56.77 | 122.00 | 9.45 | 171.59 | -86.28 | 80.95 | 0.9971 | 84.0 | 0.4 | |
| 1.09 | 15.20 | 5.78 | 91.30 | 8.72 | 172.38 | -85.49 | 81.75 | 0.9961 | 264.8 | 87.6 | |
| 5.43 | -8.00 | 33.05 | -8.00 | 8.14 | 171.83 | -86.04 | 82.28 | 0.9970 | 95.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
