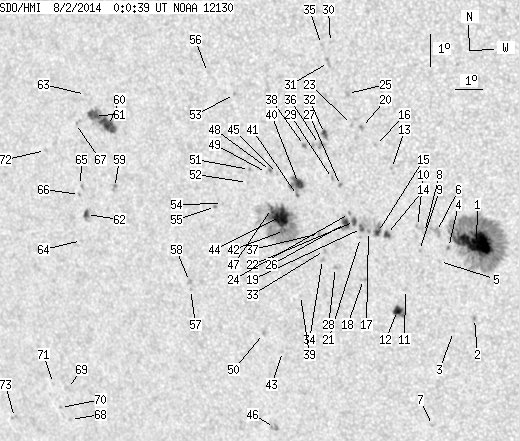

SDO HMI 2014-08-02 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.15 | 538.62 | 70.56 | 315.84 | -7.37 | 228.08 | -29.23 | 114.44 | 0.5323 | 423.5 | 336.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.81 | 224.32 | 22.95 | 126.06 | -7.75 | 232.47 | -24.84 | 118.47 | 0.4755 | 1245.7 | 519.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -10.12 | 232.23 | -25.09 | 122.47 | 0.4967 | 797.0 | 668.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -10.56 | 231.47 | -25.85 | 122.45 | 0.5099 | 550.0 | 460.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -7.92 | 231.51 | -25.81 | 117.85 | 0.4896 | 721.0 | 606.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.37 | 231.17 | -26.15 | 118.36 | 0.4974 | 508.0 | 296.3 | |
| 0.00 | 6.06 | 0.00 | 3.44 | -7.43 | 231.13 | -26.18 | 116.63 | 0.4914 | 807.0 | 654.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -13.61 | 230.41 | -26.91 | 126.24 | 0.5475 | -679.0 | -567.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -7.48 | 230.72 | -26.60 | 116.35 | 0.4974 | 693.0 | 575.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.06 | 230.51 | -26.81 | 117.19 | 0.5041 | 738.0 | 585.2 | |
| 0.00 | 2.08 | 0.00 | 1.19 | -7.31 | 230.49 | -26.83 | 115.83 | 0.4993 | 570.0 | 637.9 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -9.31 | 229.92 | -27.40 | 118.85 | 0.5204 | 811.0 | 493.6 | |
| 5.61 | 11.58 | 3.27 | 6.75 | -9.99 | 229.58 | -27.74 | 119.69 | 0.5297 | 992.5 | 628.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.54 | 229.70 | -27.62 | 111.94 | 0.4994 | 760.0 | 608.1 | |
| 2.53 | 4.16 | 1.46 | 2.40 | -7.61 | 229.40 | -27.92 | 115.45 | 0.5160 | 1006.5 | 804.3 | |
| 2.90 | 10.41 | 1.68 | 6.02 | -7.56 | 229.09 | -28.23 | 115.12 | 0.5199 | 995.5 | 602.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -4.85 | 229.18 | -28.14 | 110.28 | 0.5029 | 811.0 | 652.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -7.55 | 228.77 | -28.54 | 114.84 | 0.5240 | 967.0 | 791.7 | |
| 0.00 | 2.62 | 0.00 | 1.54 | -9.06 | 228.47 | -28.84 | 117.20 | 0.5377 | 661.0 | 572.1 | |
| 1.90 | 9.77 | 1.11 | 5.68 | -7.46 | 228.53 | -28.78 | 114.52 | 0.5268 | 961.1 | 515.3 | |
| 0.00 | 2.08 | 0.00 | 1.19 | -4.32 | 228.72 | -28.60 | 108.97 | 0.5067 | -763.0 | -591.3 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.75 | 228.48 | -28.84 | 114.96 | 0.5293 | 662.0 | 551.6 | |
| 2.17 | 4.16 | 1.27 | 2.43 | -7.26 | 228.30 | -29.01 | 113.98 | 0.5286 | 897.5 | 662.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -4.24 | 228.37 | -28.94 | 108.61 | 0.5113 | -661.0 | -513.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -7.02 | 228.14 | -29.17 | 113.44 | 0.5293 | 828.0 | 709.9 | |
| 0.00 | 2.99 | 0.00 | 1.72 | -3.29 | 228.27 | -29.05 | 106.76 | 0.5082 | -741.0 | -601.1 | |
| 3.98 | 8.69 | 2.33 | 5.08 | -7.34 | 227.98 | -29.34 | 113.87 | 0.5334 | 872.5 | 588.5 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -6.16 | 227.89 | -29.43 | 111.75 | 0.5280 | 910.0 | 776.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -8.74 | 227.51 | -29.80 | 115.89 | 0.5482 | 716.0 | 590.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -5.95 | 227.62 | -29.70 | 111.20 | 0.5306 | 734.0 | 613.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -1.75 | 227.71 | -29.60 | 103.54 | 0.5099 | -774.0 | -601.2 | |
| 0.00 | 3.89 | 0.00 | 2.24 | -2.37 | 227.63 | -29.68 | 104.67 | 0.5135 | -747.0 | -619.6 | |
| 1.99 | 4.80 | 1.16 | 2.79 | -4.57 | 227.41 | -29.91 | 108.60 | 0.5264 | -946.5 | -715.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -8.22 | 227.17 | -30.15 | 114.77 | 0.5496 | 738.0 | 591.0 | |
| 0.00 | 2.35 | 0.00 | 1.40 | -8.51 | 227.07 | -30.25 | 115.18 | 0.5526 | 550.0 | 445.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -1.83 | 227.40 | -29.92 | 103.53 | 0.5148 | -655.0 | -539.5 | |
| 0.00 | 6.15 | 0.00 | 3.59 | -4.92 | 227.22 | -30.10 | 109.11 | 0.5309 | 107.0 | 39.8 | |
| 0.00 | 2.08 | 0.00 | 1.23 | -7.70 | 227.03 | -30.28 | 113.80 | 0.5483 | 736.0 | 649.6 | |
| 0.54 | 2.26 | 0.32 | 1.33 | -4.98 | 226.68 | -30.63 | 108.88 | 0.5386 | 782.8 | 554.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -9.69 | 226.16 | -31.15 | 116.42 | 0.5715 | -554.0 | -421.2 | |
| 7.06 | 16.65 | 4.18 | 9.86 | -6.17 | 226.40 | -30.92 | 110.77 | 0.5485 | 954.9 | 652.6 | |
| 0.54 | -40.00 | 0.32 | -40.00 | -6.55 | 226.33 | -30.98 | 111.38 | 0.5513 | 747.5 | 999999 | |
| 0.90 | 104.42 | 0.54 | 62.62 | -7.67 | 225.78 | -31.54 | 112.88 | 0.5648 | 826.2 | 324.6 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -11.51 | 225.30 | -32.02 | 118.58 | 0.5938 | -667.0 | -550.8 | |
| 22.80 | -42.00 | 13.66 | -42.00 | -7.24 | 225.67 | -31.64 | 112.10 | 0.5639 | 995.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -5.90 | 225.66 | -31.66 | 109.85 | 0.5571 | 392.0 | 455.3 | |
| 0.00 | 4.07 | 0.00 | 2.56 | -13.98 | 224.64 | -32.68 | 121.69 | 0.6179 | -650.0 | -642.0 | |
| 1.00 | -42.00 | 0.60 | -42.00 | -7.00 | 225.36 | -31.95 | 111.52 | 0.5667 | 731.4 | 999999 | |
| 0.45 | 1.90 | 0.27 | 1.13 | -5.82 | 225.41 | -31.90 | 109.57 | 0.5601 | 741.0 | 598.8 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -5.89 | 225.26 | -32.05 | 109.60 | 0.5625 | 502.0 | 476.0 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -10.97 | 224.67 | -32.65 | 117.31 | 0.5983 | -690.0 | -502.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -5.83 | 224.65 | -32.66 | 109.14 | 0.5705 | 498.0 | 415.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -6.24 | 224.55 | -32.77 | 109.76 | 0.5738 | 626.0 | 450.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -3.53 | 224.23 | -33.08 | 105.05 | 0.5663 | -673.0 | -598.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -6.95 | 223.58 | -33.74 | 110.34 | 0.5902 | 708.0 | 581.2 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -7.06 | 223.31 | -34.01 | 110.36 | 0.5942 | 774.0 | 635.1 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -2.91 | 223.27 | -34.05 | 103.55 | 0.5774 | -505.0 | -425.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -9.73 | 222.09 | -35.22 | 113.75 | 0.6233 | -673.0 | -532.9 | |
| 0.00 | 2.53 | 0.00 | 1.60 | -9.48 | 222.09 | -35.23 | 113.37 | 0.6220 | -743.0 | -664.3 | |
| 0.00 | 2.90 | 0.00 | 1.87 | -6.69 | 219.51 | -37.80 | 107.83 | 0.6418 | 602.0 | 431.3 | |
| 13.12 | 36.65 | 8.40 | 23.53 | -4.78 | 219.43 | -37.88 | 104.91 | 0.6355 | -893.5 | -470.7 | |
| 8.14 | -60.00 | 5.25 | -60.00 | -4.50 | 218.91 | -38.41 | 104.28 | 0.6414 | -722.3 | 999999 | |
| 2.71 | 7.15 | 1.79 | 4.70 | -7.61 | 218.32 | -39.00 | 108.62 | 0.6605 | 758.4 | 618.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -3.87 | 218.59 | -38.72 | 103.20 | 0.6433 | -335.0 | -309.9 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -8.44 | 218.02 | -39.29 | 109.68 | 0.6676 | -323.0 | -294.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -6.72 | 218.17 | -39.14 | 107.26 | 0.6587 | -353.0 | -396.2 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -7.00 | 218.11 | -39.21 | 107.64 | 0.6607 | 248.0 | 295.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -4.80 | 218.14 | -39.18 | 104.42 | 0.6522 | -478.0 | -496.2 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -14.22 | 216.59 | -40.73 | 116.78 | 0.7108 | -567.0 | -443.5 | |
| 0.00 | 3.08 | 0.00 | 2.14 | -13.22 | 216.67 | -40.64 | 115.52 | 0.7049 | -573.0 | -476.3 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -13.86 | 216.25 | -41.07 | 116.13 | 0.7127 | -640.0 | -561.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -13.10 | 216.12 | -41.20 | 115.07 | 0.7105 | -208.0 | -312.0 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -5.72 | 216.87 | -40.45 | 105.27 | 0.6714 | -698.0 | -430.1 | |
| 0.00 | 2.35 | 0.00 | 1.72 | -14.32 | 214.19 | -43.13 | 115.66 | 0.7371 | -551.0 | -503.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
