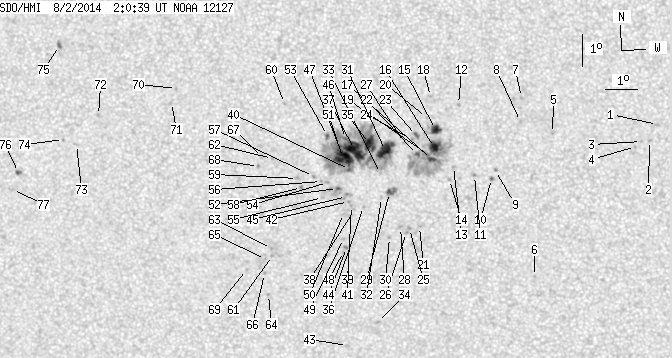

SDO HMI 2014-08-02 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.83 | 456.38 | 52.75 | 234.49 | -7.66 | 249.54 | -6.68 | 154.21 | 0.2635 | 558.3 | 335.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.92 | -6.63 | 258.27 | 2.06 | 189.37 | 0.2200 | 930.0 | 690.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -7.13 | 258.03 | 1.81 | 187.96 | 0.2278 | 905.0 | 595.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.16 | 257.78 | 1.57 | 186.88 | 0.2278 | 967.0 | 789.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.31 | 257.60 | 1.38 | 186.01 | 0.2300 | 698.0 | 628.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.90 | 255.06 | -1.16 | 174.80 | 0.2227 | 751.0 | 642.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -11.41 | 254.48 | -1.74 | 174.28 | 0.2995 | 699.0 | 439.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.78 | 254.11 | -2.10 | 169.74 | 0.2059 | 882.0 | 689.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.53 | 254.08 | -2.14 | 170.19 | 0.2186 | 833.0 | 589.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.06 | 253.30 | -2.92 | 168.17 | 0.2467 | -819.0 | -699.3 | |
| 0.45 | 1.72 | 0.23 | 0.88 | -8.32 | 253.17 | -3.04 | 167.89 | 0.2513 | -852.4 | -708.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.22 | 252.65 | -3.56 | 165.80 | 0.2518 | 966.0 | 744.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.01 | 252.18 | -4.03 | 161.19 | 0.2179 | 983.0 | 842.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.95 | 252.01 | -4.21 | 163.04 | 0.2502 | 810.0 | 611.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.35 | 251.88 | -4.34 | 163.03 | 0.2575 | 798.0 | 541.0 | |
| 6.43 | 117.48 | 3.27 | 60.07 | -6.79 | 251.47 | -4.75 | 159.39 | 0.2346 | 1206.8 | 423.6 | |
| 7.42 | -15.00 | 3.79 | -15.00 | -7.36 | 251.43 | -4.79 | 160.07 | 0.2438 | 1257.4 | 999999 | |
| 2.99 | -15.00 | 1.53 | -15.00 | -7.73 | 251.33 | -4.88 | 160.22 | 0.2504 | 946.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.77 | 251.32 | -4.89 | 157.13 | 0.2192 | 987.0 | 695.4 | |
| 0.27 | -15.00 | 0.14 | -15.00 | -7.58 | 251.21 | -5.00 | 159.55 | 0.2486 | 956.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.42 | 251.19 | -5.02 | 157.72 | 0.2304 | 737.0 | 534.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.84 | 250.93 | -5.29 | 161.43 | 0.2862 | -832.0 | -630.2 | |
| 1.18 | -15.00 | 0.60 | -15.00 | -7.58 | 250.90 | -5.31 | 158.41 | 0.2505 | 874.0 | 999999 | |
| 1.18 | 2.90 | 0.60 | 1.48 | -6.98 | 250.88 | -5.33 | 157.41 | 0.2413 | 1049.8 | 728.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.11 | 250.72 | -5.49 | 157.02 | 0.2443 | 890.0 | 806.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.91 | 250.62 | -5.60 | 160.49 | 0.2890 | -992.0 | -864.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.03 | 250.52 | -5.69 | 160.34 | 0.2915 | -956.0 | -734.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.21 | 250.51 | -5.71 | 156.37 | 0.2472 | 830.0 | 717.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -9.88 | 250.34 | -5.88 | 159.56 | 0.2901 | -921.0 | -740.7 | |
| 1.90 | 6.52 | 0.98 | 3.36 | -8.78 | 250.02 | -6.20 | 157.06 | 0.2749 | 755.3 | 701.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.20 | 249.99 | -6.22 | 158.86 | 0.2971 | -997.0 | -733.2 | |
| 16.02 | 233.06 | 8.21 | 119.63 | -7.46 | 249.92 | -6.30 | 154.67 | 0.2553 | 1231.7 | 443.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.94 | 249.77 | -6.45 | 156.47 | 0.2790 | 559.0 | 405.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.18 | 249.75 | -6.46 | 155.27 | 0.2675 | 39.0 | 14.3 | |
| 0.00 | 2.26 | 0.00 | 1.19 | -12.91 | 249.55 | -6.66 | 160.59 | 0.3419 | -783.0 | -567.5 | |
| 13.85 | -31.00 | 7.09 | -31.00 | -7.25 | 249.43 | -6.79 | 152.58 | 0.2557 | 1185.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.23 | 249.20 | -7.01 | 155.09 | 0.2873 | 766.0 | 579.3 | |
| 22.27 | -31.00 | 11.43 | -31.00 | -7.44 | 248.96 | -7.25 | 151.35 | 0.2623 | 1284.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.33 | 248.92 | -7.29 | 154.37 | 0.2908 | 604.0 | 490.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -9.20 | 248.83 | -7.38 | 153.90 | 0.2896 | 825.0 | 674.4 | |
| 0.91 | -31.00 | 0.47 | -31.00 | -8.07 | 248.79 | -7.42 | 151.93 | 0.2730 | 618.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.21 | 248.75 | -7.47 | 155.12 | 0.3055 | -838.0 | -655.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.08 | 248.74 | -7.47 | 153.43 | 0.2884 | 750.0 | 672.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.67 | 248.58 | -7.63 | 158.83 | 0.3589 | -735.0 | -562.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -10.53 | 248.64 | -7.57 | 155.27 | 0.3110 | -1071.0 | -865.1 | |
| 0.00 | 4.98 | 0.00 | 2.57 | -8.92 | 248.68 | -7.53 | 153.00 | 0.2865 | 840.0 | 686.4 | |
| 0.81 | -31.00 | 0.42 | -31.00 | -7.10 | 248.69 | -7.53 | 149.80 | 0.2596 | 784.1 | 999999 | |
| 21.36 | -31.00 | 10.98 | -31.00 | -7.70 | 248.62 | -7.60 | 150.69 | 0.2689 | 1084.5 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -10.66 | 248.55 | -7.67 | 155.17 | 0.3136 | -694.0 | -635.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.25 | 248.56 | -7.66 | 154.62 | 0.3073 | -826.0 | -619.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.46 | 248.58 | -7.64 | 153.52 | 0.2953 | -186.0 | -253.0 | |
| 2.26 | -31.00 | 1.16 | -31.00 | -7.35 | 248.50 | -7.72 | 149.67 | 0.2649 | 742.4 | 999999 | |
| 0.72 | 8.24 | 0.37 | 4.26 | -8.67 | 248.41 | -7.81 | 151.75 | 0.2849 | 973.6 | 517.3 | |
| 0.72 | -31.00 | 0.37 | -31.00 | -7.02 | 248.13 | -8.08 | 147.82 | 0.2631 | 1004.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.49 | 248.10 | -8.11 | 150.50 | 0.2847 | 975.0 | 820.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.96 | 247.94 | -8.28 | 150.81 | 0.2930 | 117.0 | 146.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.46 | 247.92 | -8.30 | 149.89 | 0.2858 | 725.0 | 578.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.30 | 247.67 | -8.54 | 148.88 | 0.2857 | 806.0 | 573.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.66 | 247.29 | -8.93 | 148.40 | 0.2940 | -657.0 | -391.8 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -8.37 | 247.17 | -9.04 | 147.55 | 0.2911 | 747.0 | 607.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.04 | 246.82 | -9.40 | 141.59 | 0.2624 | 747.0 | 603.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.82 | 246.32 | -9.90 | 149.40 | 0.3331 | -978.0 | -812.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -7.76 | 246.41 | -9.81 | 144.19 | 0.2897 | 902.0 | 741.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -10.60 | 246.29 | -9.92 | 148.99 | 0.3301 | -961.0 | -833.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -12.06 | 246.15 | -10.07 | 150.82 | 0.3522 | -784.0 | -632.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -10.95 | 246.09 | -10.12 | 149.03 | 0.3368 | -843.0 | -629.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.40 | 246.04 | -10.17 | 149.60 | 0.3435 | -764.0 | -623.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.73 | 246.10 | -10.12 | 143.28 | 0.2924 | 739.0 | 608.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.02 | 245.97 | -10.25 | 143.51 | 0.2976 | 861.0 | 720.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -11.28 | 245.48 | -10.73 | 148.05 | 0.3466 | -779.0 | -681.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.64 | 243.46 | -12.75 | 131.84 | 0.2962 | -785.0 | -653.2 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -6.07 | 243.29 | -12.92 | 132.55 | 0.3032 | -806.0 | -576.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -6.53 | 240.98 | -15.24 | 128.94 | 0.3372 | -855.0 | -726.6 | |
| 0.00 | 2.35 | 0.00 | 1.25 | -7.46 | 240.24 | -15.97 | 129.68 | 0.3560 | -791.0 | -579.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.31 | 239.83 | -16.38 | 128.65 | 0.3597 | 720.0 | 618.9 | |
| 0.91 | 3.26 | 0.48 | 1.71 | -4.40 | 239.80 | -16.42 | 121.67 | 0.3325 | -944.6 | -772.1 | |
| 1.18 | 2.53 | 0.63 | 1.36 | -8.39 | 238.34 | -17.88 | 128.46 | 0.3895 | -1041.2 | -798.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.93 | 238.12 | -18.10 | 129.20 | 0.3976 | -738.0 | -592.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
