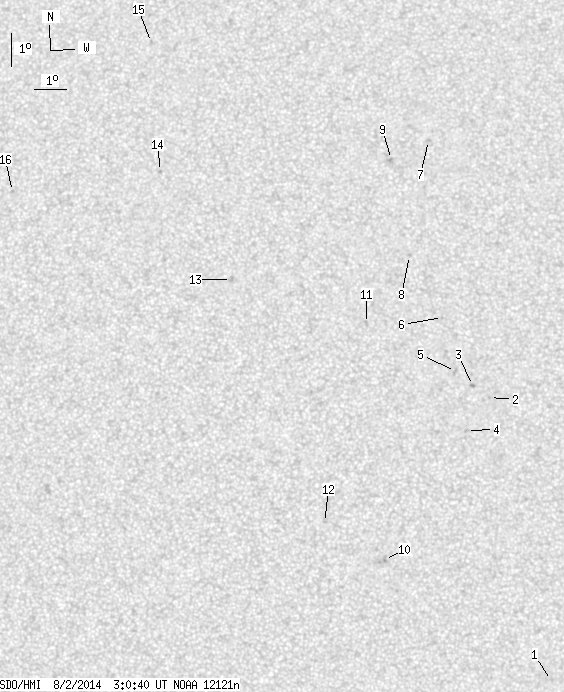

SDO HMI 2014-08-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.90 | 0.00 | 12.99 | 11.49 | 255.35 | -0.32 | 229.78 | 0.1270 | 854.7 | 689.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.32 | 0.46 | 261.41 | 5.74 | 226.92 | 0.1376 | 783.0 | 582.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.10 | 259.57 | 3.91 | 310.14 | 0.0884 | 903.0 | 696.5 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.47 | 259.05 | 3.39 | 317.29 | 0.0863 | 1080.0 | 850.4 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 8.10 | 258.85 | 3.19 | 305.48 | 0.0679 | 871.0 | 675.5 | |
| 0.00 | 2.63 | 0.00 | 1.31 | 9.90 | 258.53 | 2.87 | 325.08 | 0.0865 | 840.0 | 736.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.55 | 258.15 | 2.48 | 336.87 | 0.1084 | 857.0 | 627.1 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 17.00 | 257.77 | 2.10 | 349.71 | 0.1973 | 870.0 | 678.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 13.45 | 257.13 | 1.47 | 349.32 | 0.1351 | 744.0 | 559.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 16.41 | 256.59 | 0.92 | 355.19 | 0.1846 | 837.0 | 737.5 | |
| 0.00 | 2.53 | 0.00 | 1.26 | 4.19 | 256.32 | 0.66 | 201.42 | 0.0315 | 1031.0 | 842.0 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 11.37 | 255.79 | 0.12 | 358.78 | 0.0966 | 782.0 | 638.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 5.31 | 254.49 | -1.17 | 115.00 | 0.0226 | 724.0 | 518.9 | |
| 0.00 | 2.53 | 0.00 | 1.27 | 12.71 | 251.57 | -4.09 | 30.20 | 0.1390 | 787.0 | 710.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.01 | 249.26 | -6.40 | 31.21 | 0.2078 | 952.0 | 707.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 20.03 | 248.82 | -6.84 | 24.51 | 0.2710 | 810.0 | 603.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.33 | 244.56 | -11.11 | 48.15 | 0.2506 | 804.0 | 593.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
